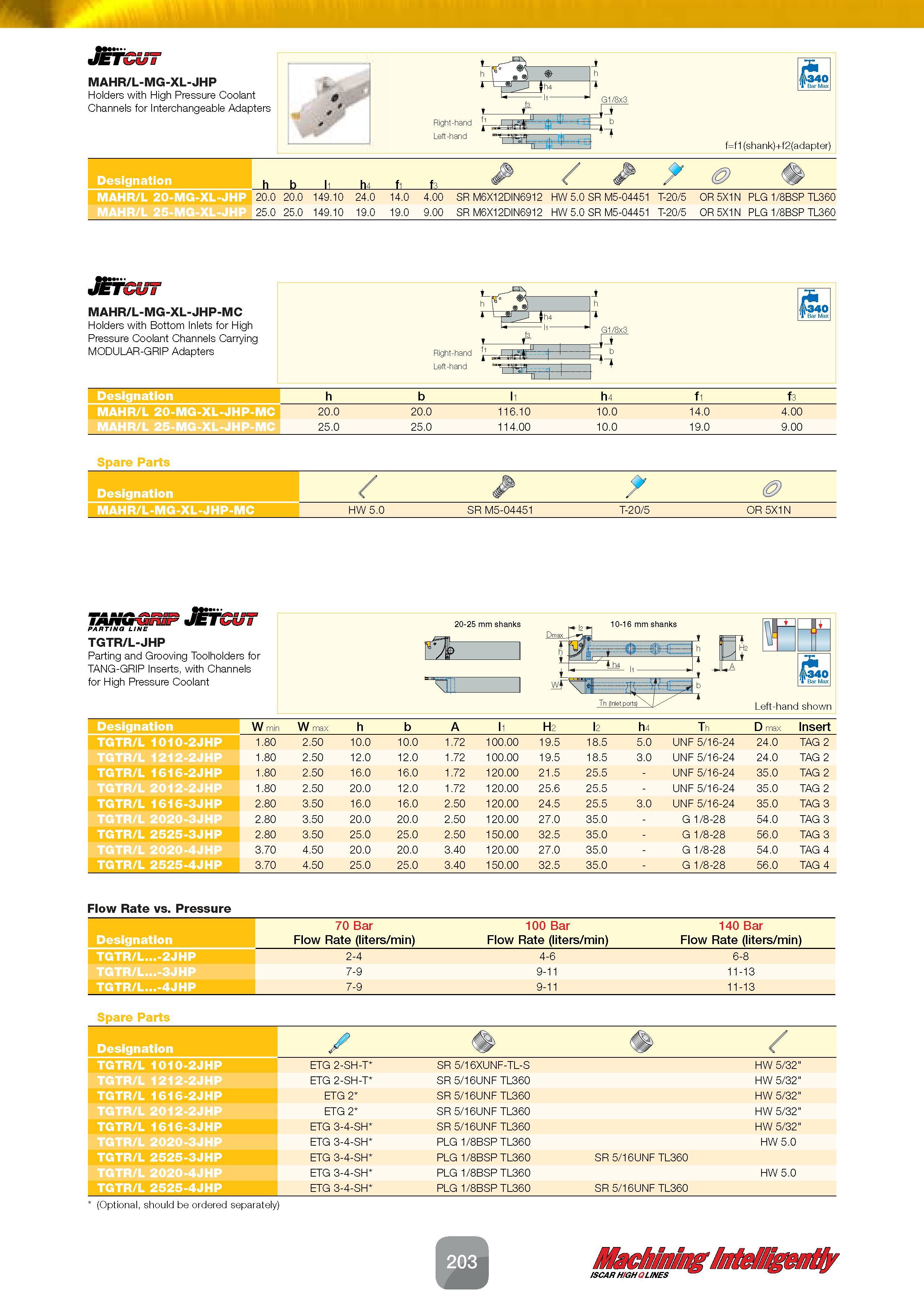

JETCUT MAHR/L-MG-XL-JHP Holders with High Pressure Coolant Channels for Interchangeable Adapters 340 Bar Max f=f1(shank)+f2(adapter) Designation b l1 h4 f1 f3 / . MAHR/L 20-MG-XL-JHP 20.0 20.0 149.10 24.0 14.0 4.00 SR M6X12DIN6912 HW 5.0 SR M5-04451 T-20/5 OR 5X1N PLG 1/8BSP TL360 MAHR/L 25-MG-XL-JHP 25.0 25.0 149.10 19.0 19.0 9.00 SR M6X12DIN6912 HW 5.0 SR M5-04451 T-20/5 OR 5X1N PLG 1/8BSP TL360 Jetcut MAHR/L-MG-XL-JHP-MC Holders with Bottom Inlets for High Pressure Coolant Channels Carrying MODULAR-GRIP Adapters Designation MAHR/L 20-MG-XL-JHP-MC MAHR/L 25-MG-XL-JHP-MC h _b _l1 _h f1 f3 20.0 20.0 116.10 10.0 14.0 4.00 25.0 25.0 114.00 10.0 19.0 9.00 Spare Parts . HW 5.0 SR M5-04451 T-20/5 OR 5X1N Designation MAHR/L-MG-XL-JHP-MC TANStfSilttIP PARTING LINE TGTR/L-JHP Parting and Grooving Toolholders for TANG-GRIP Inserts, with Channels for High Pressure Coolant Designation TGTR/L 1010-2JHP TGTR/L 1212-2JHP TGTR/L 1616-2JHP TGTR/L 2012-2JHP TGTR/L 1616-3JHP TGTR/L 2020-3JHP TGTR/L 2525-3JHP TGTR/L 2020-4JHP TGTR/L 2525-4JHP W min W max h b A l1 H2 l2 h4 Th D max Insert 1.80 2.50 10.0 10.0 1.72 100.00 19.5 18.5 5.0 UNF 5/16-24 24.0 TAG 2 1.80 2.50 12.0 12.0 1.72 100.00 19.5 18.5 3.0 UNF 5/16-24 24.0 TAG 2 1.80 2.50 16.0 16.0 1.72 120.00 21.5 25.5 - UNF 5/16-24 35.0 TAG 2 1.80 2.50 20.0 12.0 1.72 120.00 25.6 25.5 - UNF 5/16-24 35.0 TAG 2 2.80 3.50 16.0 16.0 2.50 120.00 24.5 25.5 3.0 UNF 5/16-24 35.0 TAG 3 2.80 3.50 20.0 20.0 2.50 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 3 2.80 3.50 25.0 25.0 2.50 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 3 3.70 4.50 20.0 20.0 3.40 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 4 3.70 4.50 25.0 25.0 3.40 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 4 Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) TGTR/L...-2JHP 2-4 4-6 6-8 TGTR/L...-3JHP 7-9 9-11 11-13 TGTR/L...-4JHP 7-9 9-11 11-13 Spare Parts Designation / %> TGTR/L 1010-2JHP ETG 2-SH-T SR 5/16XUNF-TL-S HW 5/32" TGTR/L 1212-2JHP ETG 2-SH-T SR 5/16UNF TL360 HW 5/32" TGTR/L 1616-2JHP ETG 2 SR 5/16UNF TL360 HW 5/32" TGTR/L 2012-2JHP ETG 2 SR 5/16UNF TL360 HW 5/32" TGTR/L 1616-3JHP ETG 3-4-SH SR 5/16UNF TL360 HW 5/32" TGTR/L 2020-3JHP ETG 3-4-SH PLG 1/8BSP TL360 HW 5.0 TGTR/L 2525-3JHP ETG 3-4-SH PLG 1/8BSP TL360 SR 5/16UNF TL360 TGTR/L 2020-4JHP ETG 3-4-SH PLG 1/8BSP TL360 HW 5.0 TGTR/L 2525-4JHP ETG 3-4-SH PLG 1/8BSP TL360 SR 5/16UNF TL360 (Optional, should be ordered separately)
