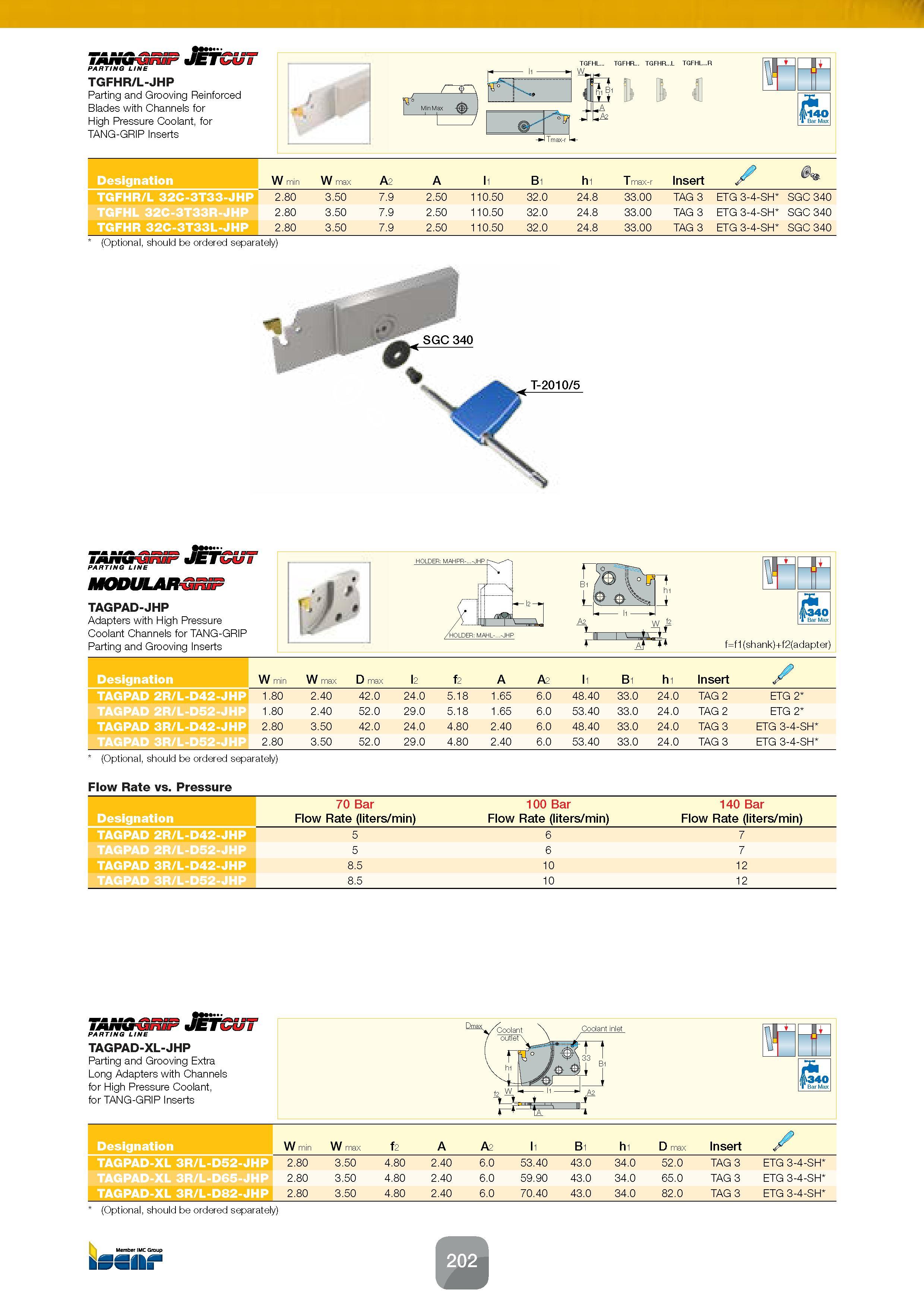

SJSiwwdlrazF wfEfr&wff PARTING LINE TGFHR/L-JHP Parting and Grooving Reinforced Blades with Channels for High Pressure Coolant, for TANG-GRIP Inserts Designation W min W max A2 A l1 B1 h1 Tmax-r Insert t W TGFHR/L 32C-3T33-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH SGC 340 TGFHL 32C-3T33R-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH SGC 340 TGFHR 32C-3T33L-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH SGC 340 (Optional, should be ordered separately) uib i flSwlpgaocKB liiivTO ir UET&ozn PARTING LINE MODULAR-GRiF TAGPAD-JHP Adapters with High Pressure Coolant Channels for TANG-GRIP Parting and Grooving Inserts (T l2 /HOLDER: MAHL-...-JHP hi W f ca 340 Bar Max f=fi(shank)+f2(adapter) Designation W min W max D max l2 f2 A A2 l1 B1 h1 Insert ✓ TAGPAD 2R/L-D42-JHP 1.80 2.40 42.0 24.0 5.18 1.65 6.0 48.40 33.0 24.0 TAG 2 ETG 2 TAGPAD 2R/L-D52-JHP 1.80 2.40 52.0 29.0 5.18 1.65 6.0 53.40 33.0 24.0 TAG 2 ETG 2 TAGPAD 3R/L-D42-JHP 2.80 3.50 42.0 24.0 4.80 2.40 6.0 48.40 33.0 24.0 TAG 3 ETG 3-4-SH TAGPAD 3R/L-D52-JHP 2.80 3.50 52.0 29.0 4.80 2.40 6.0 53.40 33.0 24.0 TAG 3 ETG 3-4-SH (Optional, should be ordered separately) Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) TAGPAD 2R/L-D42-JHP 5 6 7 TAGPAD 2R/L-D52-JHP 5 6 7 TAGPAD 3R/L-D42-JHP 8.5 10 12 TAGPAD 3R/L-D52-JHP 8.5 10 12 1 JMtsi PARTING LINE TAGPAD-XL-JHP Parting and Grooving Extra Long Adapters with Channels for High Pressure Coolant, for TANG-GRIP Inserts (3 /7 Designation W min W max f2 A A2 l1 B1 h1 D max Insert ✓ TAGPAD-XL 3R/L-D52-JHP 2.80 3.50 4.80 2.40 6.0 53.40 43.0 34.0 52.0 TAG 3 ETG 3-4-SH TAGPAD-XL 3R/L-D65-JHP 2.80 3.50 4.80 2.40 6.0 59.90 43.0 34.0 65.0 TAG 3 ETG 3-4-SH TAGPAD-XL 3R/L-D82-JHP 2.80 3.50 4.80 2.40 6.0 70.40 43.0 34.0 82.0 TAG 3 ETG 3-4-SH (Optional, should be ordered separately) JS Member IMC Group
