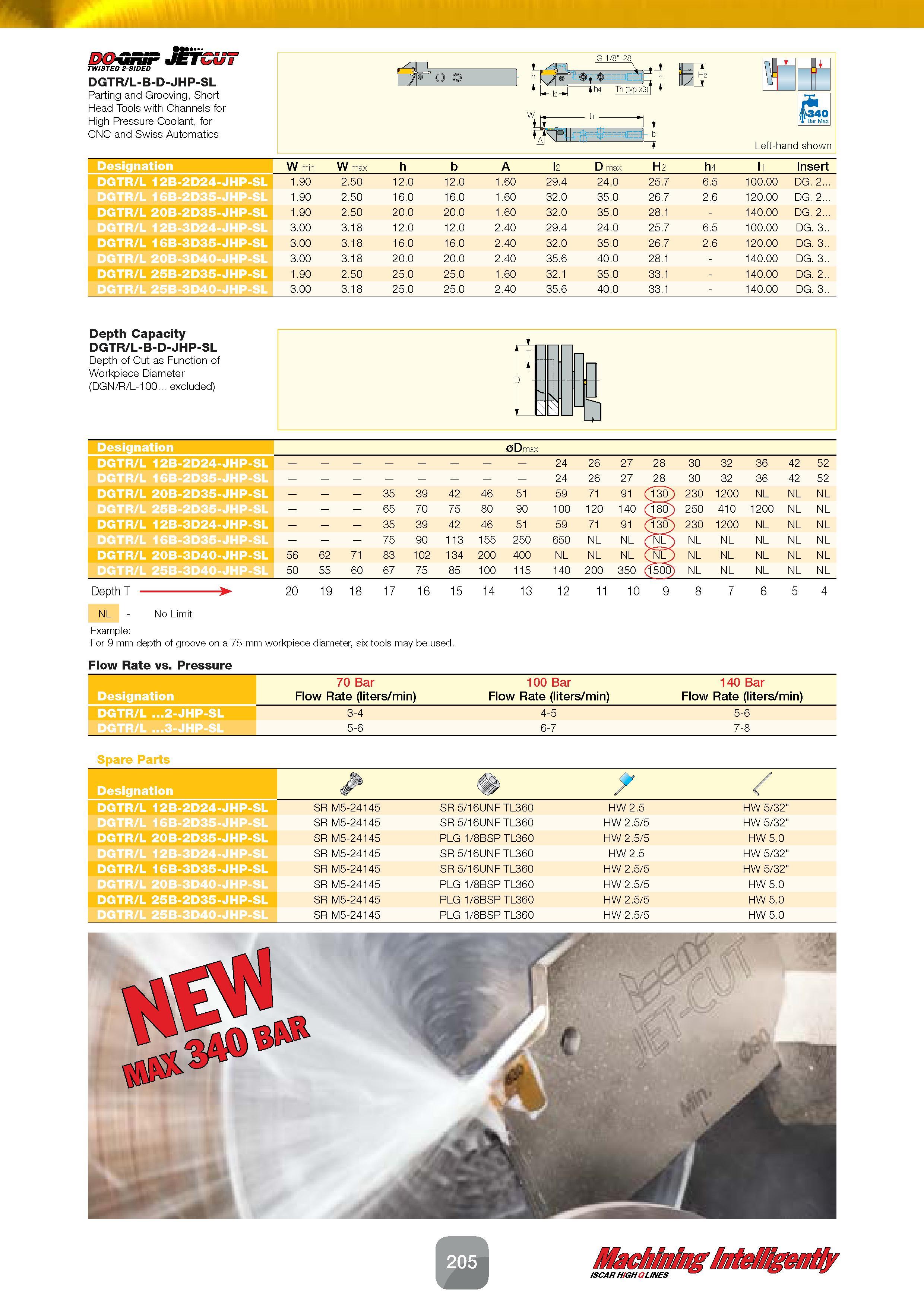

207 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.205

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 205 0207 Lab2u

W - D&GnlP JeTCUT TWISTED 2-SIDED DGTR/L-B-D-JHP-SL Parting and Grooving, Short Head Tools with Channels for High Pressure Coolant, for CNC and Swiss Automatics W min W max h b A l2 D max H2 h4 l1 Insert 1.90 2.50 12.0 12.0 1.60 29.4 24.0 25.7 6.5 100.00 DG. 2... 1.90 2.50 16.0 16.0 1.60 32.0 35.0 26.7 2.6 120.00 DG. 2... 1.90 2.50 20.0 20.0 1.60 32.0 35.0 28.1 - 140.00 DG. 2... 3.00 3.18 12.0 12.0 2.40 29.4 24.0 25.7 6.5 100.00 DG. 3.. 3.00 3.18 16.0 16.0 2.40 32.0 35.0 26.7 2.6 120.00 DG. 3.. 3.00 3.18 20.0 20.0 2.40 35.6 40.0 28.1 - 140.00 DG. 3.. 1.90 2.50 25.0 25.0 1.60 32.1 35.0 33.1 - 140.00 DG. 2.. 3.00 3.18 25.0 25.0 2.40 35.6 40.0 33.1 - 140.00 DG. 3.. Designation DGTR/L 12B-2D24-JHP-SL DGTR/L 16B-2D35-JHP-SL DGTR/L 20B-2D35-JHP-SL DGTR/L 12B-3D24-JHP-SL DGTR/L 16B-3D35-JHP-SL DGTR/L 20B-3D40-JHP-SL DGTR/L 25B-2D35-JHP-SL DGTR/L 25B-3D40-JHP-SL Depth Capacity DGTR/L-B-D-JHP-SL Depth of Cut as Function of Workpiece Diameter (DGN/R/L-100... excluded) Designation 0Dmax DGTR/L 12B-2D24-JHP-SL - - - - - - - - 24 26 27 28 30 32 36 42 52 DGTR/L 16B-2D35-JHP-SL - - - - - - - - 24 26 27 28 30 32 36 42 52 DGTR/L 20B-2D35-JHP-SL - - - 35 39 42 46 51 59 71 91 130 230 1200 NL NL NL DGTR/L 25B-2D35-JHP-SL - - - 65 70 75 80 90 100 120 140 180 250 410 1200 NL NL DGTR/L 12B-3D24-JHP-SL - - - 35 39 42 46 51 59 71 91 130 230 1200 NL NL NL DGTR/L 16B-3D35-JHP-SL - - - 75 90 113 155 250 650 NL NL NL NL NL NL NL NL DGTR/L 20B-3D40-JHP-SL 56 62 71 83 102 134 200 400 NL NL NL NL NL NL NL NL NL DGTR/L 25B-3D40-JHP-SL 50 55 60 67 75 85 100 115 140 200 350 1500 NL NL NL NL NL Depth T > 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 NL No Limit Example: For 9 mm depth of groove on a 75 mm workpiece diameter, six tools may be used. Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) DGTR/L ...2-JHP-SL 3-4 4-5 5-6 DGTR/L ...3-JHP-SL 5-6 6-7 7-8 Spare Parts Designation . DGTR/L 12B-2D24-JHP-SL SR M5-24145 SR 5/16UNF TL360 HW 2.5 HW 5/32" DGTR/L 16B-2D35-JHP-SL SR M5-24145 SR 5/16UNF TL360 HW 2.5/5 HW 5/32" DGTR/L 20B-2D35-JHP-SL SR M5-24145 PLG 1/8BSP TL360 HW 2.5/5 HW 5.0 DGTR/L 12B-3D24-JHP-SL SR M5-24145 SR 5/16UNF TL360 HW 2.5 HW 5/32" DGTR/L 16B-3D35-JHP-SL SR M5-24145 SR 5/16UNF TL360 HW 2.5/5 HW 5/32" DGTR/L 20B-3D40-JHP-SL SR M5-24145 PLG 1/8BSP TL360 HW 2.5/5 HW 5.0 DGTR/L 25B-2D35-JHP-SL SR M5-24145 PLG 1/8BSP TL360 HW 2.5/5 HW 5.0 DGTR/L 25B-3D40-JHP-SL SR M5-24145 PLG 1/8BSP TL360 HW 2.5/5 HW 5.0
