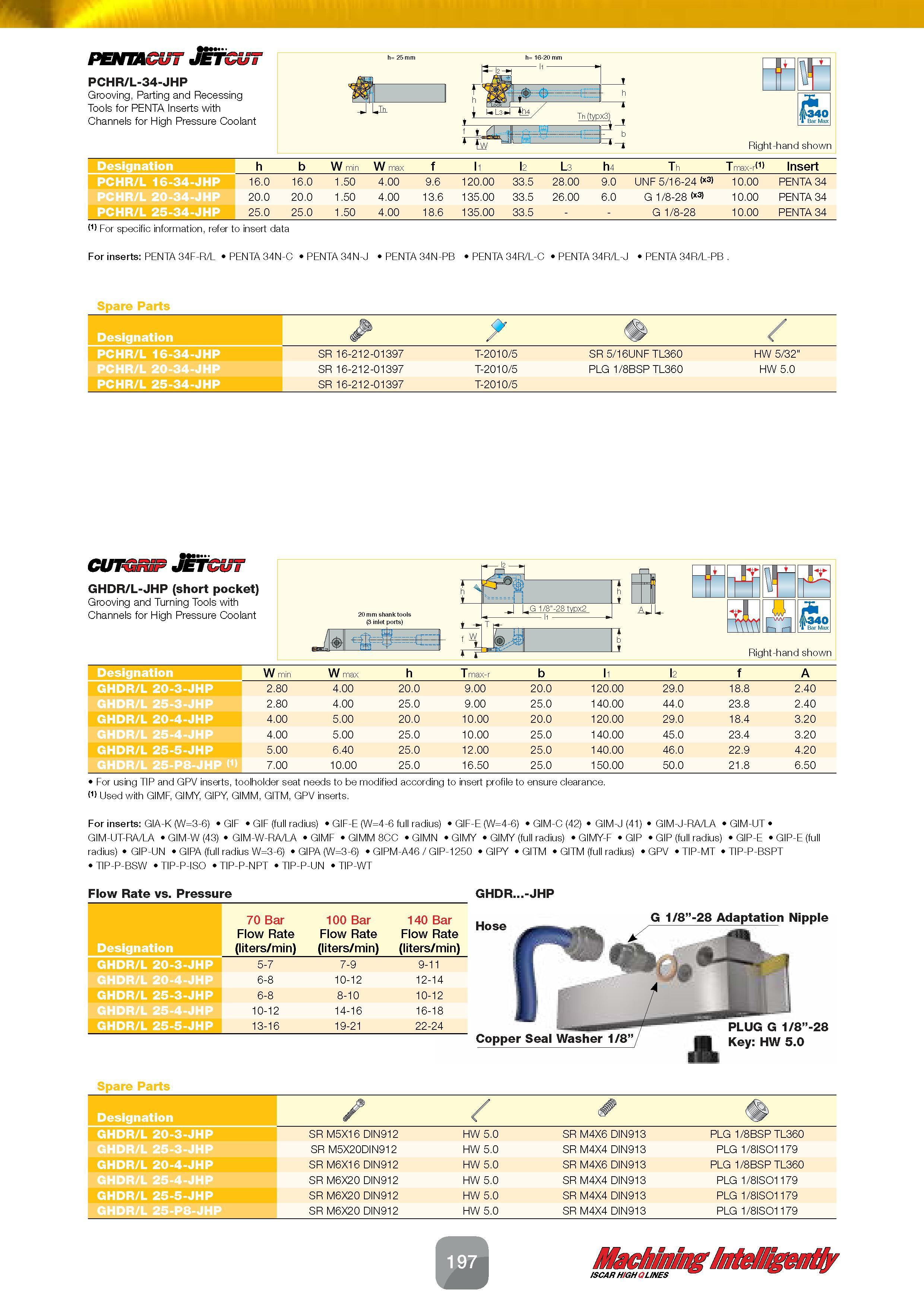

pentacut Jetcut PCHR/L-34-JHP Grooving, Parting and Recessing Tools for PENTA Inserts with Channels for High Pressure Coolant h= 16-20 mm ft 340 'I Bar Max tw Right-hand shown Designation h b W min W max f l1 l2 L3 h4 Th T max-r(1) Insert PCHR/L 16-34-JHP 16.0 16.0 1.50 4.00 9.6 120.00 33.5 28.00 9.0 UNF 5/16-24 (x3) 10.00 PENTA 34 PCHR/L 20-34-JHP 20.0 20.0 1.50 4.00 13.6 135.00 33.5 26.00 6.0 G 1/8-28 (x3) 10.00 PENTA 34 PCHR/L 25-34-JHP 25.0 25.0 1.50 4.00 18.6 135.00 33.5 - - G 1/8-28 10.00 PENTA 34 (1) For specific information, refer to insert data For inserts: PENTA 34F-R/L PENTA 34N-C PENTA 34N-J PENTA 34N-PB PENTA 34R/L-C PENTA 34R/L-J PENTA 34R/L-PB . Spare Parts Designation . ‘ PCHR/L 16-34-JHP SR 16-212-01397 T-2010/5 SR 5/16UNF TL360 HW 5/32" PCHR/L 20-34-JHP SR 16-212-01397 T-2010/5 PLG 1/8BSP TL360 HW 5.0 PCHR/L 25-34-JHP SR 16-212-01397 T-2010/5 CUTGRSP JitCUT GHDR/L-JHP (short pocket) Grooving and Turning Tools with Channels for High Pressure Coolant T r 1 u 340 Bar Max Right-hand shown Designation W min W max h Tmax-r b l1 l2 f A GHDR/L 20-3-JHP 2.80 4.00 20.0 9.00 20.0 120.00 29.0 18.8 2.40 GHDR/L 25-3-JHP 2.80 4.00 25.0 9.00 25.0 140.00 44.0 23.8 2.40 GHDR/L 20-4-JHP 4.00 5.00 20.0 10.00 20.0 120.00 29.0 18.4 3.20 GHDR/L 25-4-JHP 4.00 5.00 25.0 10.00 25.0 140.00 45.0 23.4 3.20 GHDR/L 25-5-JHP 5.00 6.40 25.0 12.00 25.0 140.00 46.0 22.9 4.20 GHDR/L 25-P8-JHP (1) 7.00 10.00 25.0 16.50 25.0 150.00 50.0 21.8 6.50 For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. (1) Used with GIMF, GIMY, GIPY, GIMM, GITM, GPV inserts. For inserts: GIA-K (W=3-6) GIF GIF (full radius) GIF-E (W=4-6 full radius) GIF-E (W=4-6) GIM-C (42) GIM-J (41) GIM-J-RA/LA GIM-UT GIM-UT-RA/LA GIM-W (43) GIM-W-RA/LA GIMF GIMM 8CC GIMN GIMY GIMY (full radius) GIMY-F GIP GIP (full radius) GIP-E GIP-E (full radius) GIP-UN GIPA (full radius W=3-6) GIPA (W=3-6) GIPM-A46 / GIP-1250 GIPY GITM GITM (full radius) GPV TIP-MT TIP-P-BSPT TIP-P-BSW TIP-P-ISO TIP-P-NPT TIP-P-UN TIP-WT Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) GHDR/L 20-3-JHP 5-7 7-9 9-11 GHDR/L 20-4-JHP 6-8 10-12 12-14 GHDR/L 25-3-JHP 6-8 8-10 10-12 GHDR/L 25-4-JHP 10-12 14-16 16-18 GHDR/L 25-5-JHP 13-16 19-21 22-24 GHDR...-JHP Hose G 1/8”-28 Adaptation Nipple Copper Seal Washer 1/8 PLUG G 1/8”-28 Key: HW 5.0 Spare Parts Designation GHDR/L 20-3-JHP SR M5X16 DIN912 HW 5.0 SR M4X6 DIN913 PLG 1/8BSP TL360 GHDR/L 25-3-JHP SR M5X20DIN912 HW 5.0 SR M4X4 DIN913 PLG 1/8ISO1179 GHDR/L 20-4-JHP SR M6X16 DIN912 HW 5.0 SR M4X6 DIN913 PLG 1/8BSP TL360 GHDR/L 25-4-JHP SR M6X20 DIN912 HW 5.0 SR M4X4 DIN913 PLG 1/8ISO1179 GHDR/L 25-5-JHP SR M6X20 DIN912 HW 5.0 SR M4X4 DIN913 PLG 1/8ISO1179 GHDR/L 25-P8-JHP SR M6X20 DIN912 HW 5.0 SR M4X4 DIN913 PLG 1/8ISO1179 ISCAR HIGH QLINES h= 25 mm
