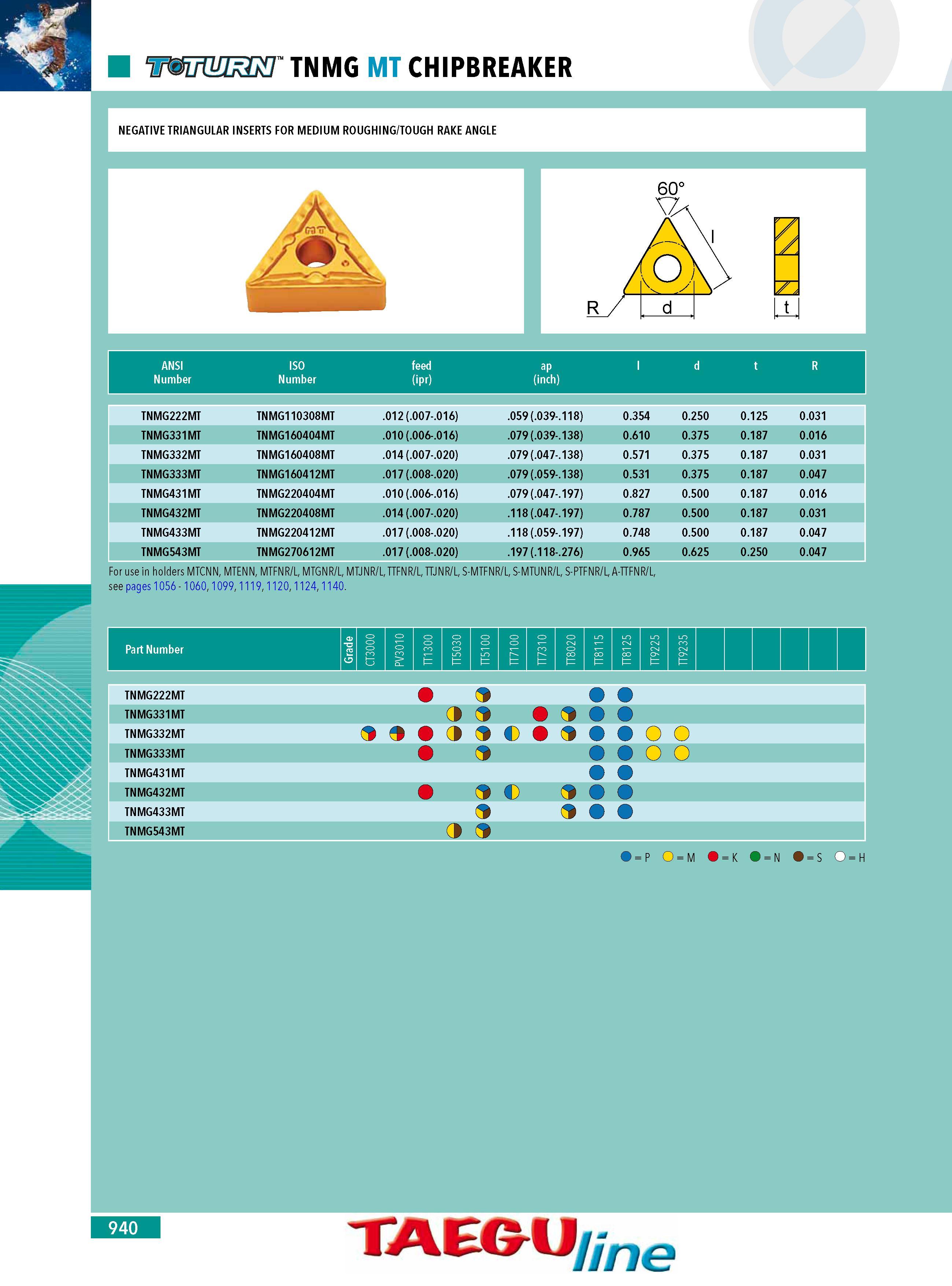

tnmg mt chipbreaker NEGATIVE TRIANGULAR INSERTS FOR MEDIUM ROUGHING TOUGH RAKE ANGLE 60 ANSI ISO feed ap l d t R Number Number (ipr) (inch) For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR LTTFNR LTTJNR LS-MTFNR LS-MTUNR L S-PTFNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1124 1140. Part Number TNMG222MT TNMG110308MT .012 (.007-.016) .059 (.039-.118) 0.354 0.250 0.125 0.031 TNMG331MT TNMG160404MT .010 (.006-.016) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNMG332MT TNMG160408MT .014 (.007-.020) .079 (.047-.138) 0.571 0.375 0.187 0.031 TNMG333MT TNMG160412MT .017 (.008-.020) .079 (.059-.138) 0.531 0.375 0.187 0.047 TNMG431MT TNMG220404MT .010 (.006-.016) .079 (.047-.197) 0.827 0.500 0.187 0.016 TNMG432MT TNMG220408MT .014 (.007-.020) .118 (.047-.197) 0.787 0.500 0.187 0.031 TNMG433MT TNMG220412MT .017 (.008-.020) .118 (.059-.197) 0.748 0.500 0.187 0.047 TNMG543MT TNMG270612MT .017 (.008-.020) .197 (.118-.276) 0.965 0.625 0.250 0.047 TNMG222MT TNMG331MT (3 TNMG332MT 3 0 3 C TNMG333MT o TNMG431MT TNMG432MT TNMG433MT 9 TNMG543MT 3 O P O M N S O H t K 940 TAEG-t3fjne
