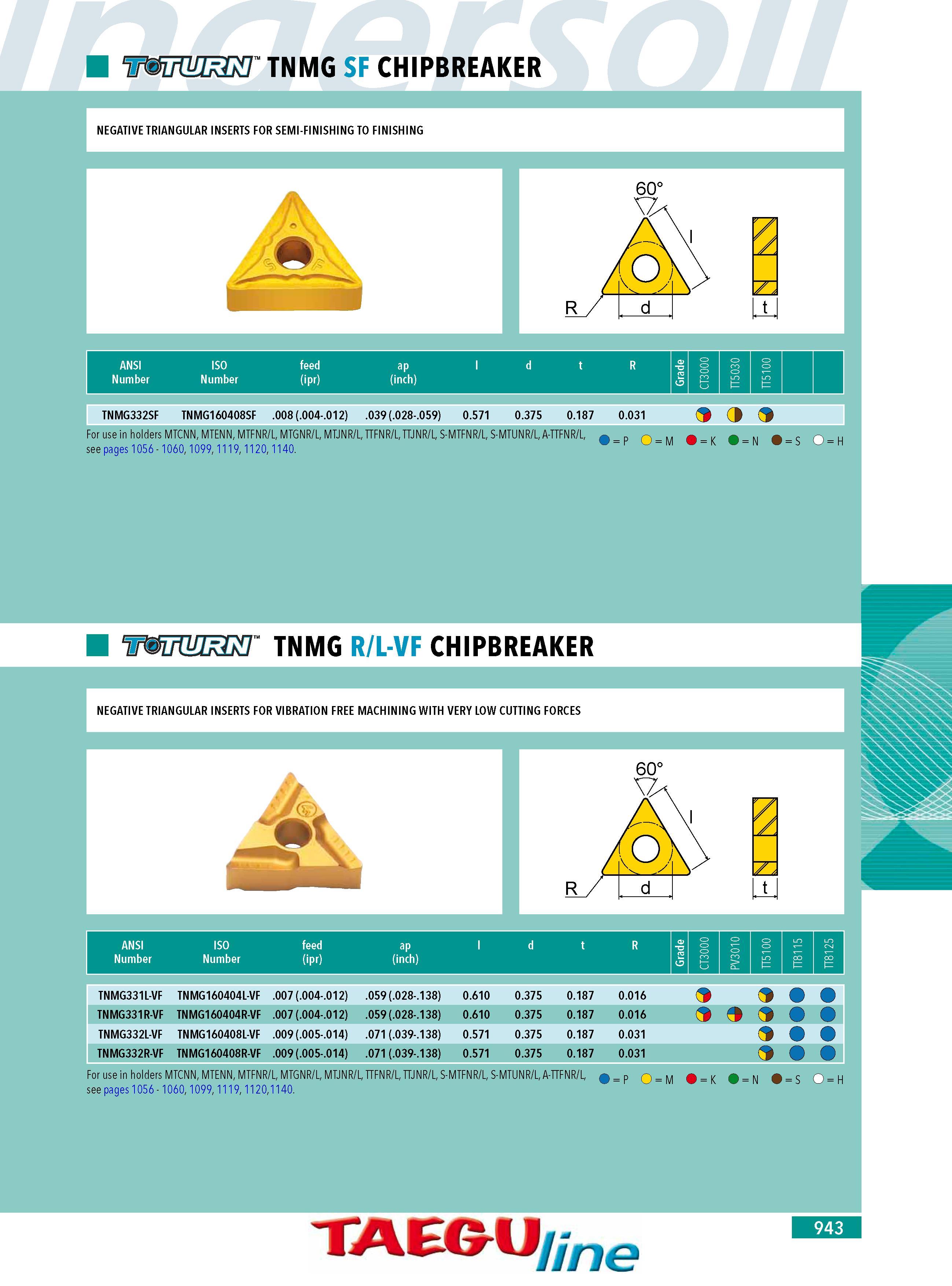

941 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.943

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 943 0941 Lab2u

TNMG SF CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR SEMI-FINISHING TO FINISHING 1 o: -d ANSI Number ISO Number feed (ipr) ap l (inch) d t R Grade 0 0 O co TC TT5030 nr TNMG332SF TNMG160408SF .008 (.004-.012) .039 (.028-.059) 0.571 0.375 0.187 0.031 3 3 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1140. O P O M ) K N ) S O H 'umMnm" tnmg r l-vf chipbreaker NEGATIVE TRIANGULAR INSERTS FOR VIBRATION FREE MACHINING WITH VERY LOW CUTTING FORCES 60 ZL ANSI Number ISO Number TNMG331L-VF TNMG160404L-VF .007 (.004-.012) .059 (.028-.138) 0.610 0.375 0.187 0.016 3 3 TNMG331R-VF TNMG160404R-VF .007 (.004-.012) .059 (.028-.138) 0.610 0.375 0.187 0.016 3 3 3 TNMG332L-VF TNMG160408L-VF .009 (.005-.014) .071 (.039-.138) 0.571 0.375 0.187 0.031 3 TNMG332R-VF TNMG160408R-VF .009 (.005-.014) .071 (.039-.138) 0.571 0.375 0.187 0.031 3 1 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 11201140. O P O M O K O N O S O H TAEGU line t t feed (ipr) d R t ap (inch)
