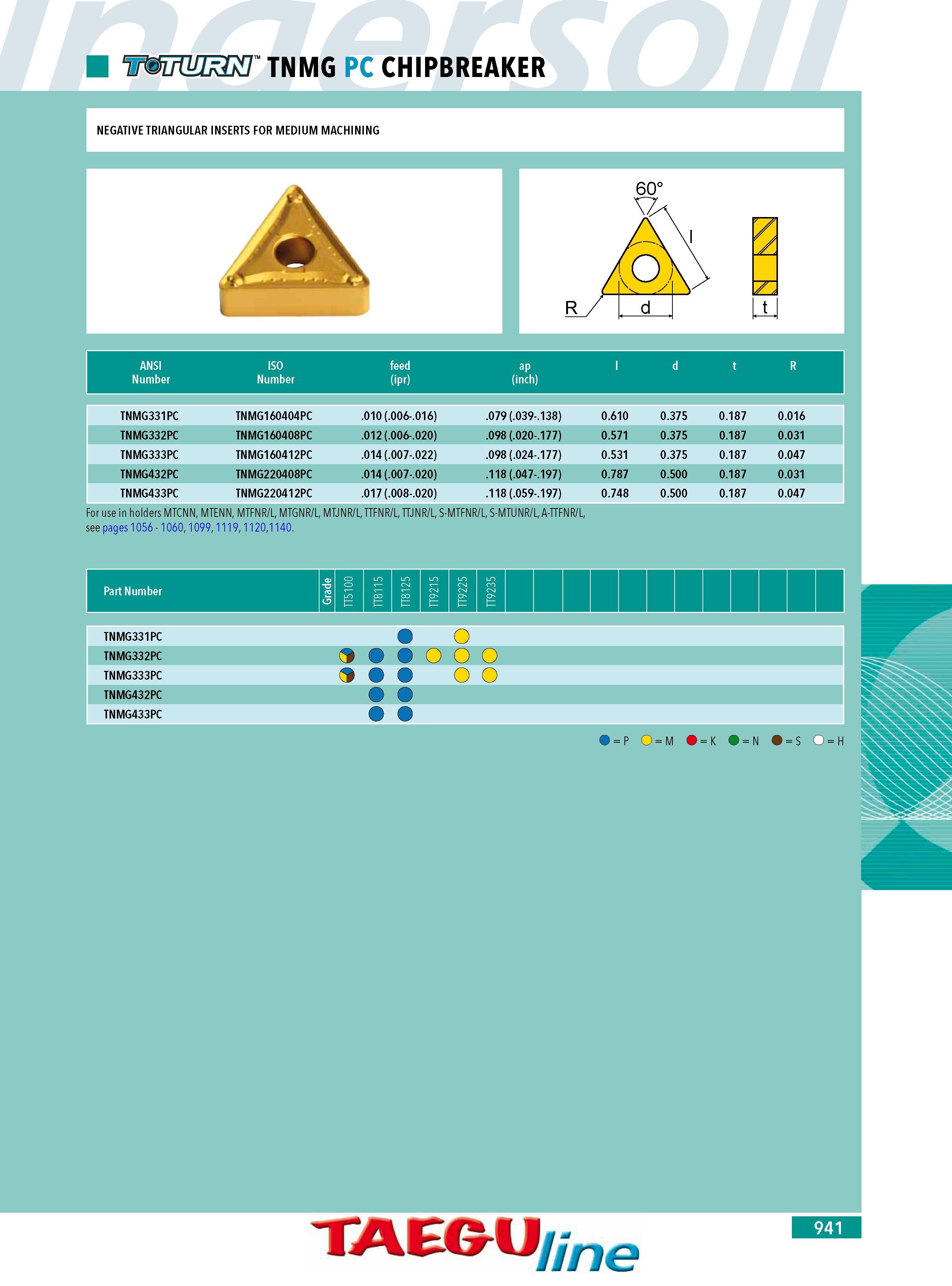

TNMG PC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM MACHINING ANSI ISO feed ap ld t R Number Number (ipr) (inch) TNMG331PC TNMG160404PC .010 (.006-.016) .079 (.039-.138) 0.610 0.375 0.187 0.016 TNMG332PC TNMG160408PC .012 (.006-.020) .098 (.020-.177) 0.571 0.375 0.187 0.031 TNMG333PC TNMG160412PC .014 (.007-.022) .098 (.024-.177) 0.531 0.375 0.187 0.047 TNMG432PC TNMG220408PC .014 (.007-.020) .118 (.047-.197) 0.787 0.500 0.187 0.031 TNMG433PC TNMG220412PC .017 (.008-.020) .118 (.059-.197) 0.748 0.500 0.187 0.047 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR LTTFNR LTTJNR LS-MTFNR LS-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 11201140. TAEMJ ne 941
