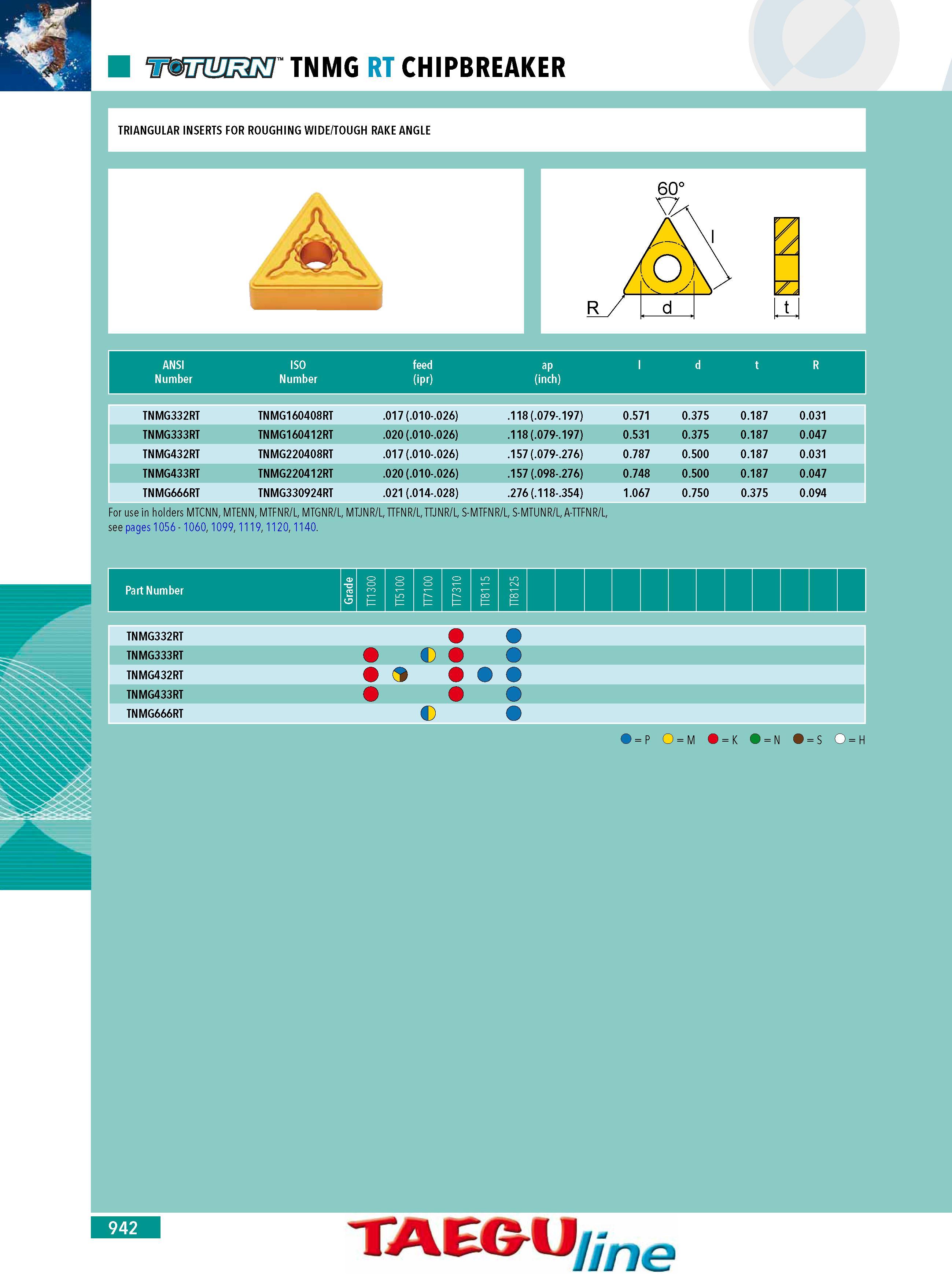

TNMG RT CHIPBREAKER TRIANGULAR INSERTS FOR ROUGHING WIDE TOUGH RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) TNMG332RT TNMG160408RT .017 (.010-.026) .118 (.079-.197) 0.571 0.375 0.187 0.031 TNMG333RT TNMG160412RT .020 (.010-.026) .118 (.079-.197) 0.531 0.375 0.187 0.047 TNMG432RT TNMG220408RT .017 (.010-.026) .157 (.079-.276) 0.787 0.500 0.187 0.031 TNMG433RT TNMG220412RT .020 (.010-.026) .157 (.098-.276) 0.748 0.500 0.187 0.047 TNMG666RT TNMG330924RT .021 (.014-.028) .276 (.118-.354) 1.067 0.750 0.375 0.094 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1140. 942 TAEGU line
