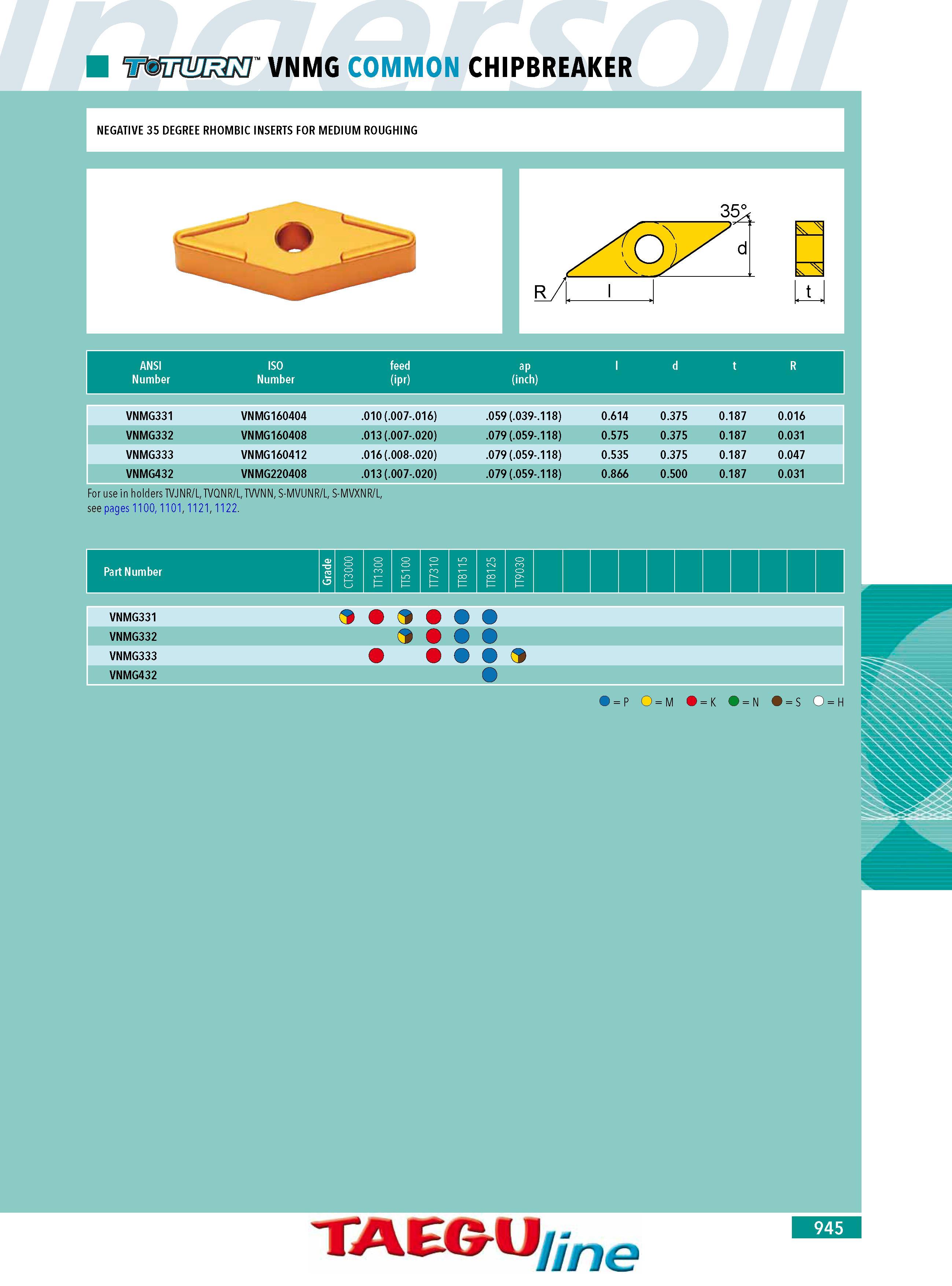

943 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.945

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 945 0943 Lab2u

vnmg common chipbreaker NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING ANSI ISO feed ap ld t R Number Number (ipr) (inch) VNMG331 VNMG160404 .010 (.007-.016) .059 (.039-.118) 0.614 0.375 0.187 0.016 VNMG332 VNMG160408 .013 (.007-.020) .079 (.059-.118) 0.575 0.375 0.187 0.031 VNMG333 VNMG160412 .016 (.008-.020) .079 (.059-.118) 0.535 0.375 0.187 0.047 VNMG432 VNMG220408 .013 (.007-.020) .079 (.059-.118) 0.866 0.500 0.187 0.031 For use in holders TVJNR L TVQNR L TVVNN S-MVUNR L S-MVXNR L see pages 1100 1101 1121 1122. TAEGU line 945
