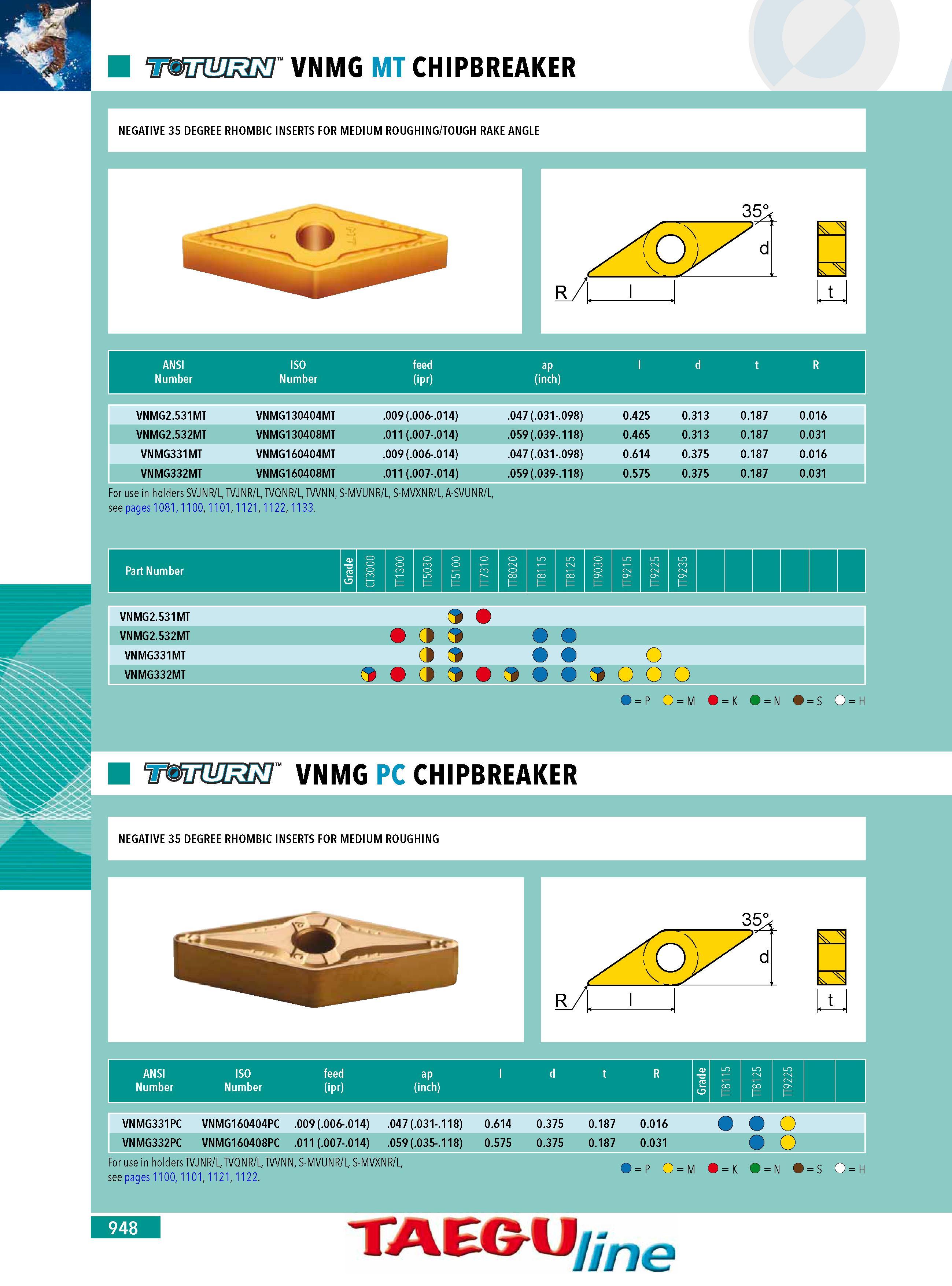

VNMG MT CHIPBREAKER NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING TOUGH RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) VNMG2.531MT VNMG130404MT .009 (.006-.014) .047 (.031-.098) 0.425 0.313 0.187 0.016 VNMG2.532MT VNMG130408MT .011 (.007-.014) .059 (.039-.118) 0.465 0.313 0.187 0.031 VNMG331MT VNMG160404MT .009 (.006-.014) .047 (.031-.098) 0.614 0.375 0.187 0.016 VNMG332MT VNMG160408MT .011 (.007-.014) .059 (.039-.118) 0.575 0.375 0.187 0.031 For use in holders SVJNR L TVJNR L TVQNR L TVVNN S-MVUNR L S-MVXNR L A-SVUNR L see pages 1081 1100 1101 1121 1122 1133. Part Number VNMG2.531MT 3 VNMG2.532MT O VNMG331MT VNMG332MT o 3 9 9 o P O M O K O N O S O H wamnm vnmg pc chipbreaker NEGATIVE 35 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING 35 Xo; d r l t ANSI ISO feed ap ld t R e d 5 5 2 5 2 Number Number (ipr) (inch) Gr CO TT8 CO TT8 9 TT9 VNMG331PC VNMG160404PC .009 (.006-.014) .047 (.031-.118) 0.614 0.375 0.187 0.016 o VNMG332PC VNMG160408PC .011 (.007-.014) .059 (.035-.118) 0.575 0.375 0.187 0.031 o For use in holders TVJNR L TVQNR L TVVNN S-MVUNR L S-MVXNR L see pages 1100 1101 1121 1122. O P O M K O N S O H 948 TAEG-U 7e
