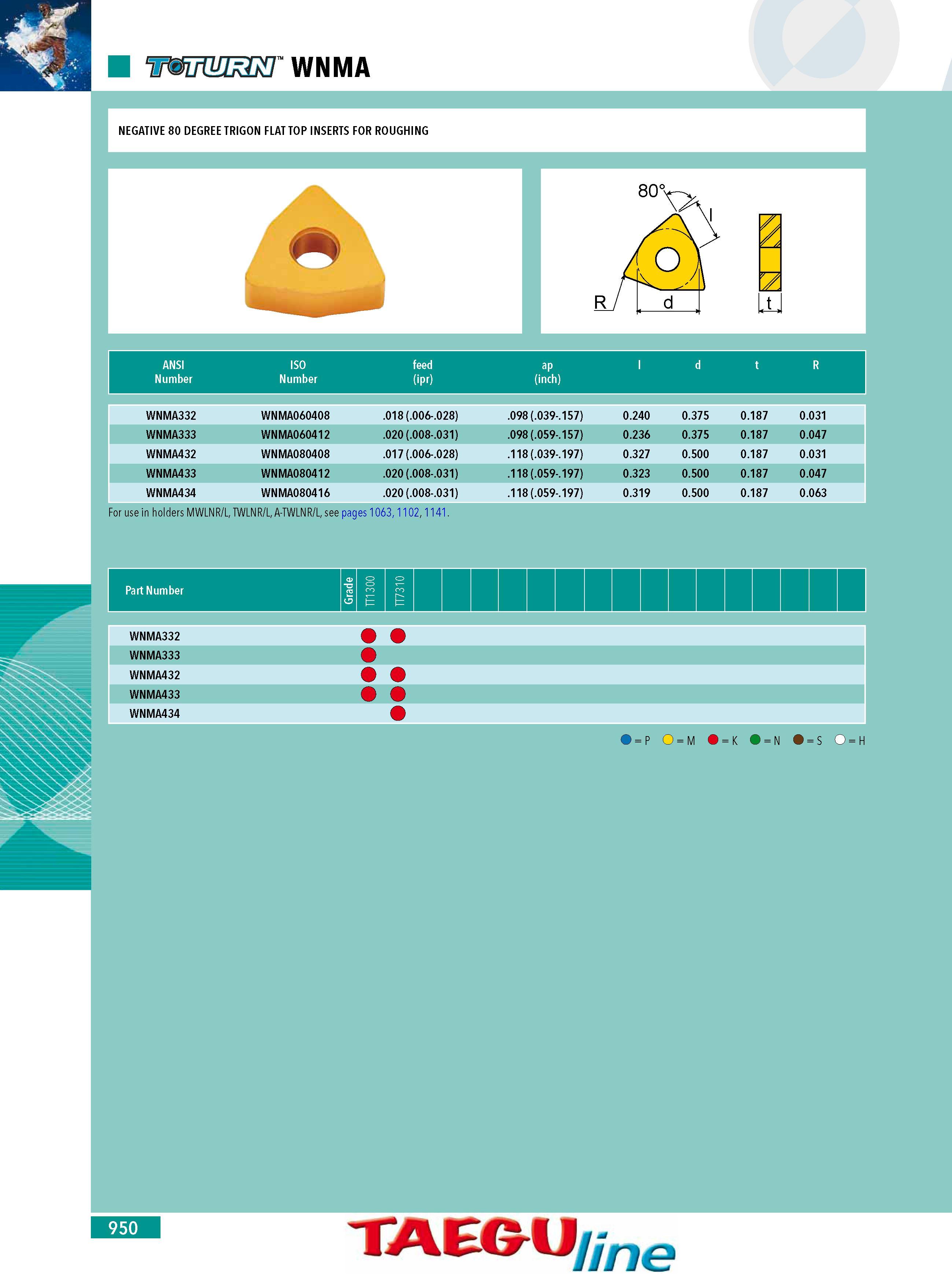

948 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.950

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 950 0948 Lab2u

WNMA NEGATIVE 80 DEGREE TRIGON FLAT TOP INSERTS FOR ROUGHING ANSI ISO feed ap ld t R Number Number (ipr) (inch) WNMA332 WNMA060408 .018 (.006-.028) .098 (.039-.157) 0.240 0.375 0.187 0.031 WNMA333 WNMA060412 .020 (.008-.031) .098 (.059-.157) 0.236 0.375 0.187 0.047 WNMA432 WNMA080408 .017 (.006-.028) .118 (.039-.197) 0.327 0.500 0.187 0.031 WNMA433 WNMA080412 .020 (.008-.031) .118 (.059-.197) 0.323 0.500 0.187 0.047 WNMA434 WNMA080416 .020 (.008-.031) .118 (.059-.197) 0.319 0.500 0.187 0.063 For use in holders MWLNR L TWLNR L A-TWLNR L see pages 1063 1102 1141. Part Number e 0 0 d 0 1 f'O CO 11 WNMA332 WNMA333 WNMA432 WNMA433 WNMA434 O P O M K O N S O H TAS&U me 950
