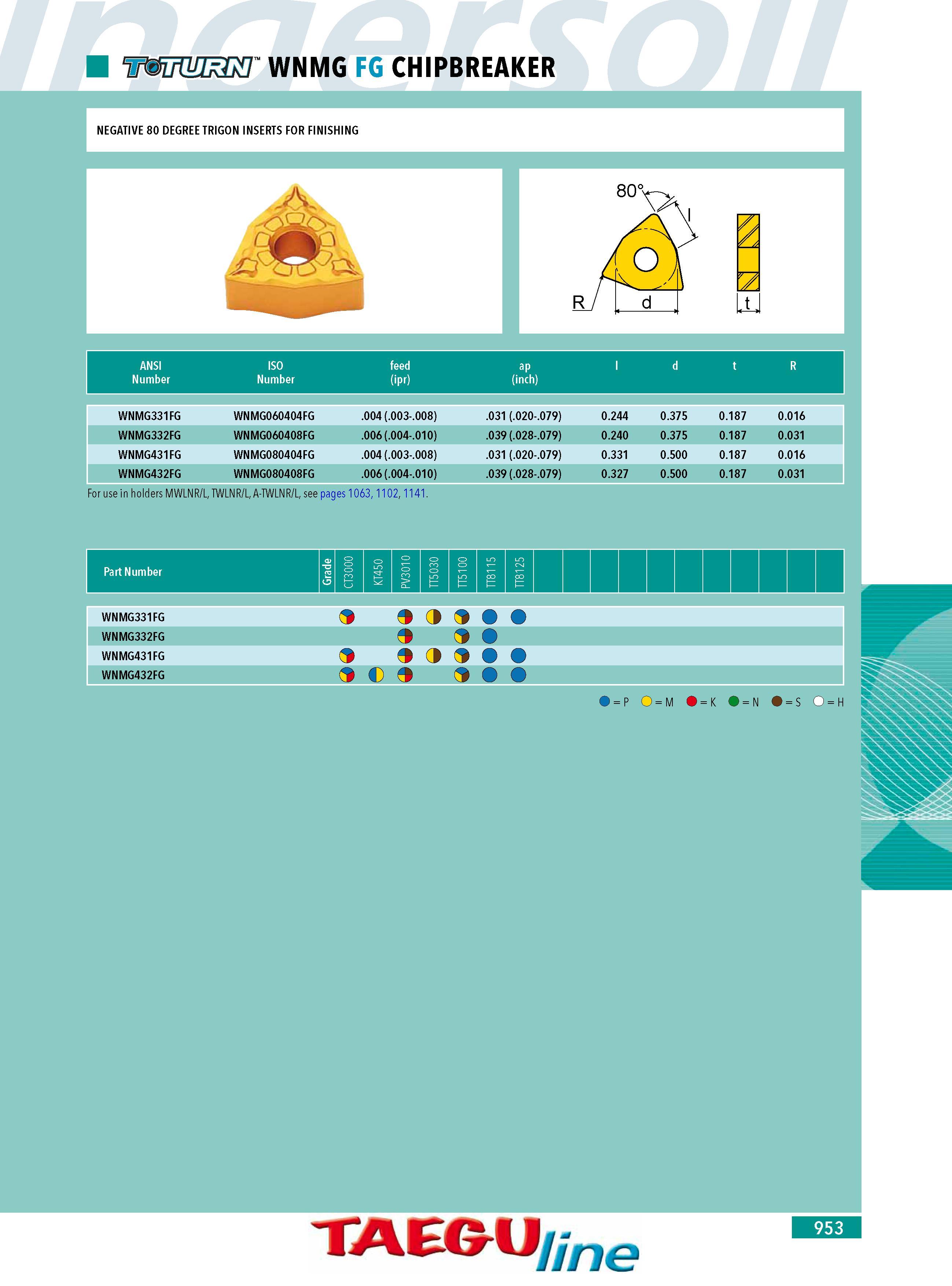

WNMG FG CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR FINISHING ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG331FG WNMG060404FG .004 (.003-.008) .031 (.020-.079) 0.244 0.375 0.187 0.016 WNMG332FG WNMG060408FG .006 (.004-.010) .039 (.028-.079) 0.240 0.375 0.187 0.031 WNMG431FG WNMG080404FG .004 (.003-.008) .031 (.020-.079) 0.331 0.500 0.187 0.016 WNMG432FG WNMG080408FG .006 (.004-.010) .039 (.028-.079) 0.327 0.500 0.187 0.031 For use in holders MWLNR L TWLNR L A-TWLNR L see pages 1063 1102 1141. e Part Number 2 Gr CT3000 KT450 PV3010 TT5030 TT5100 TT8115 TT8125 WNMG331FG 9 9 9 9 WNMG332FG 9 9 WNMG431FG O 9 9 9 WNMG432FG 9 9 9 O P O M O K O N O S O H TAEGU line 953
