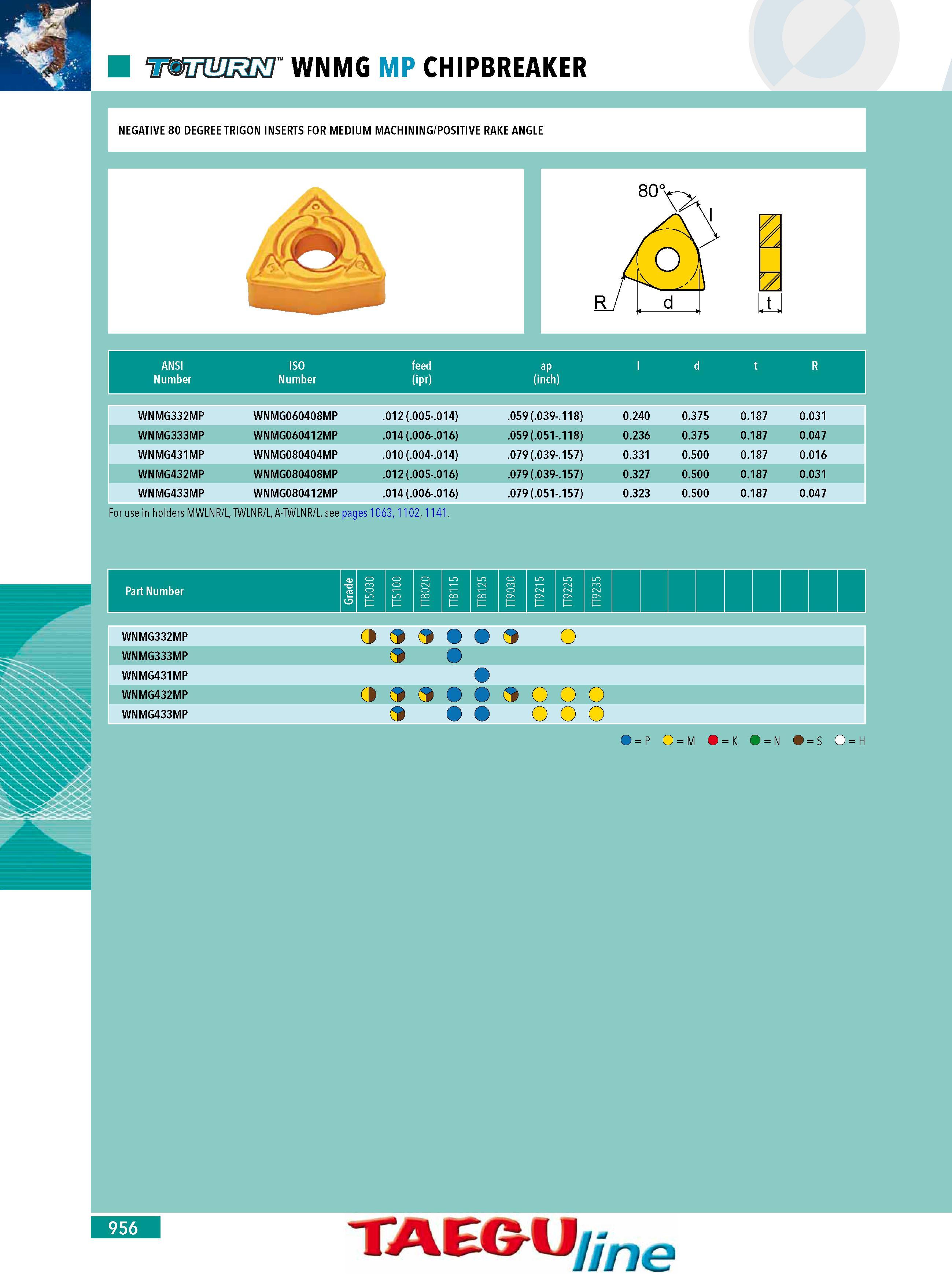

WNMG MP CHIPBREAKER NEGATIVE 80 DEGREE TRIGON INSERTS FOR MEDIUM MACHINING POSITIVE RAKE ANGLE ANSI ISO feed ap l d t R Number Number (ipr) (inch) WNMG332MP WNMG060408MP .012 (.005-.014) .059 (.039-.118) 0.240 0.375 0.187 0.031 WNMG333MP WNMG060412MP .014 (.006-.016) .059 (.051-.118) 0.236 0.375 0.187 0.047 WNMG431MP WNMG080404MP .010 (.004-.014) .079 (.039-.157) 0.331 0.500 0.187 0.016 WNMG432MP WNMG080408MP .012 (.005-.016) .079 (.039-.157) 0.327 0.500 0.187 0.031 WNMG433MP WNMG080412MP .014 (.006-.016) .079 (.051-.157) 0.323 0.500 0.187 0.047 For use in holders MWLNR L TWLNR L A-TWLNR L see pages 1063 1102 1141. 956 TAEGU line
