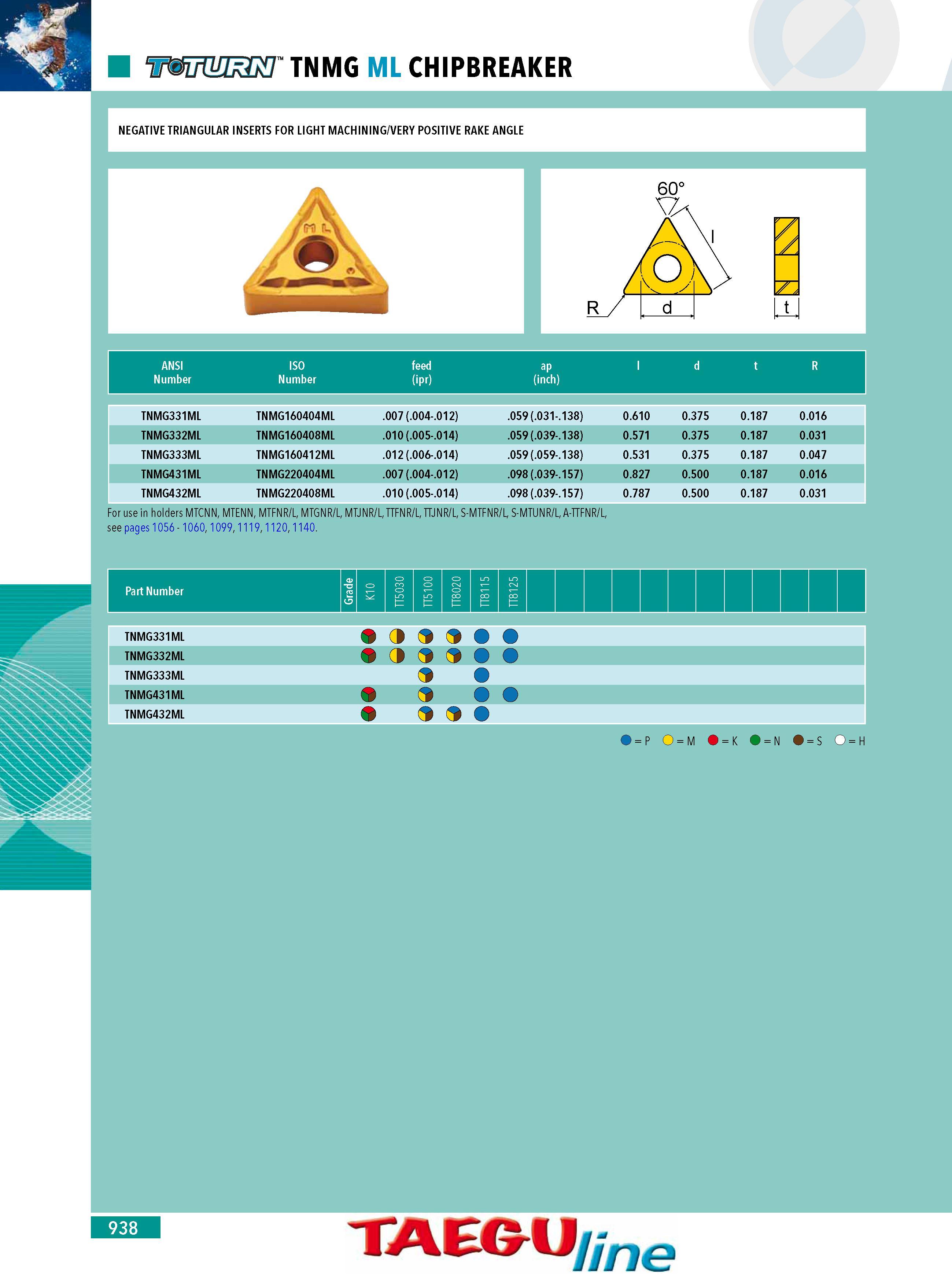

936 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.938

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 938 0936 Lab2u

tnmg ml chipbreaker NEGATIVE TRIANGULAR INSERTS FOR LIGHT MACHINING VERY POSITIVE RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) TNMG331ML TNMG160404ML .007 (.004-.012) .059 (.031-.138) 0.610 0.375 0.187 0.016 TNMG332ML TNMG160408ML .010 (.005-.014) .059 (.039-.138) 0.571 0.375 0.187 0.031 TNMG333ML TNMG160412ML .012 (.006-.014) .059 (.059-.138) 0.531 0.375 0.187 0.047 TNMG431ML TNMG220404ML .007 (.004-.012) .098 (.039-.157) 0.827 0.500 0.187 0.016 TNMG432ML TNMG220408ML .010 (.005-.014) .098 (.039-.157) 0.787 0.500 0.187 0.031 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR LTTFNR LTTJNR LS-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1140. Part Number TNMG331ML o 3 3 TNMG332ML a 3 TNMG333ML 3 TNMG431ML 3 TNMG432ML 3 3 O P O M K o N O S O H 938 TAEGU line
