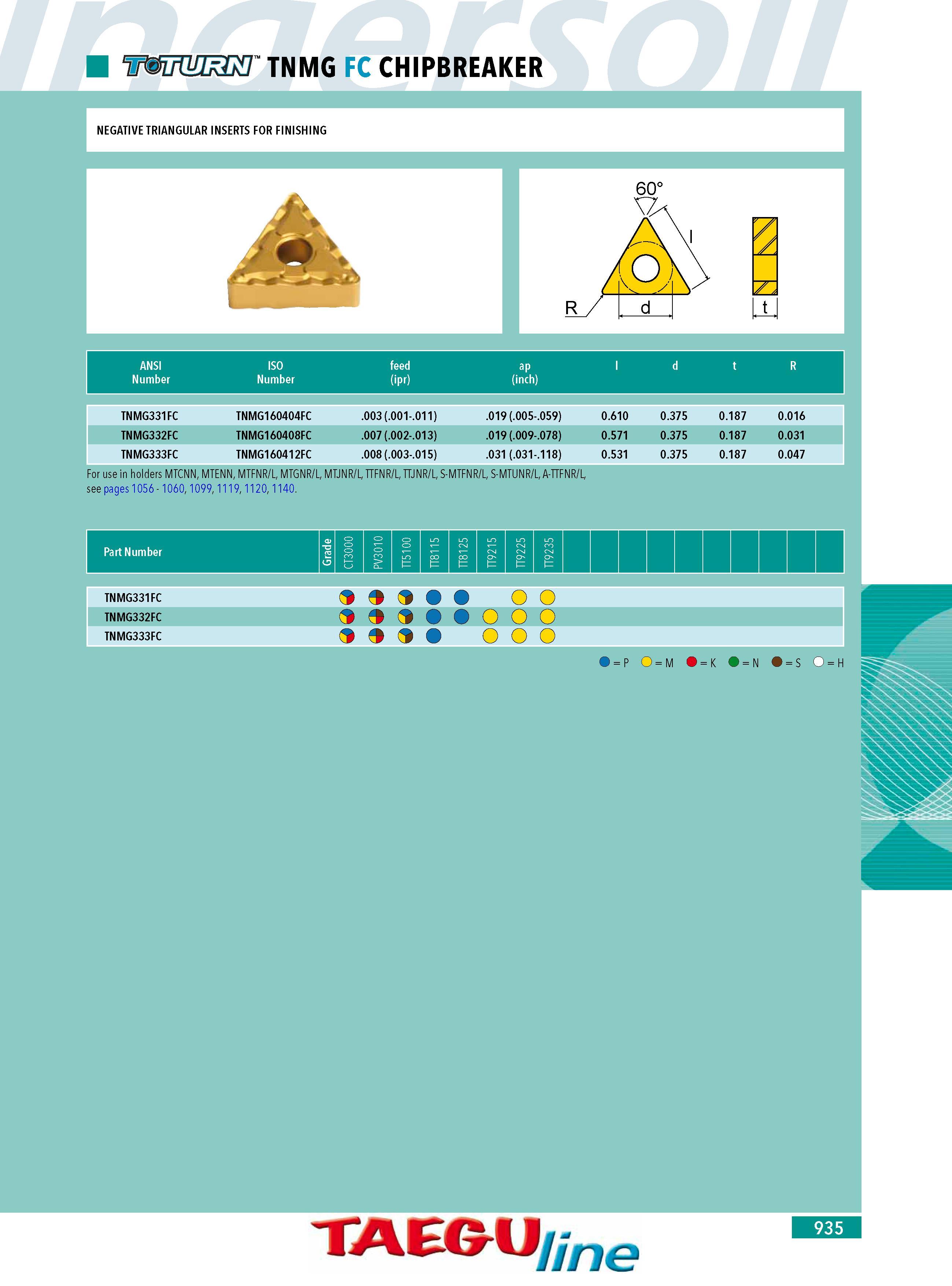

933 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.935

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 935 0933 Lab2u

TNMG FC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR FINISHING ANSI ISO feed ap ld t R Number Number (ipr) (inch) TNMG331FC TNMG160404FC .003 (.001-.011) .019 (.005-.059) 0.610 0.375 0.187 0.016 TNMG332FC TNMG160408FC .007 (.002-.013) .019 (.009-.078) 0.571 0.375 0.187 0.031 TNMG333FC TNMG160412FC .008 (.003-.015) .031 (.031-.118) 0.531 0.375 0.187 0.047 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1140. Part Number TNMG331FC 9 TNMG332FC C) TNMG333FC & o P O M K O N S O H TAEGU line 935
