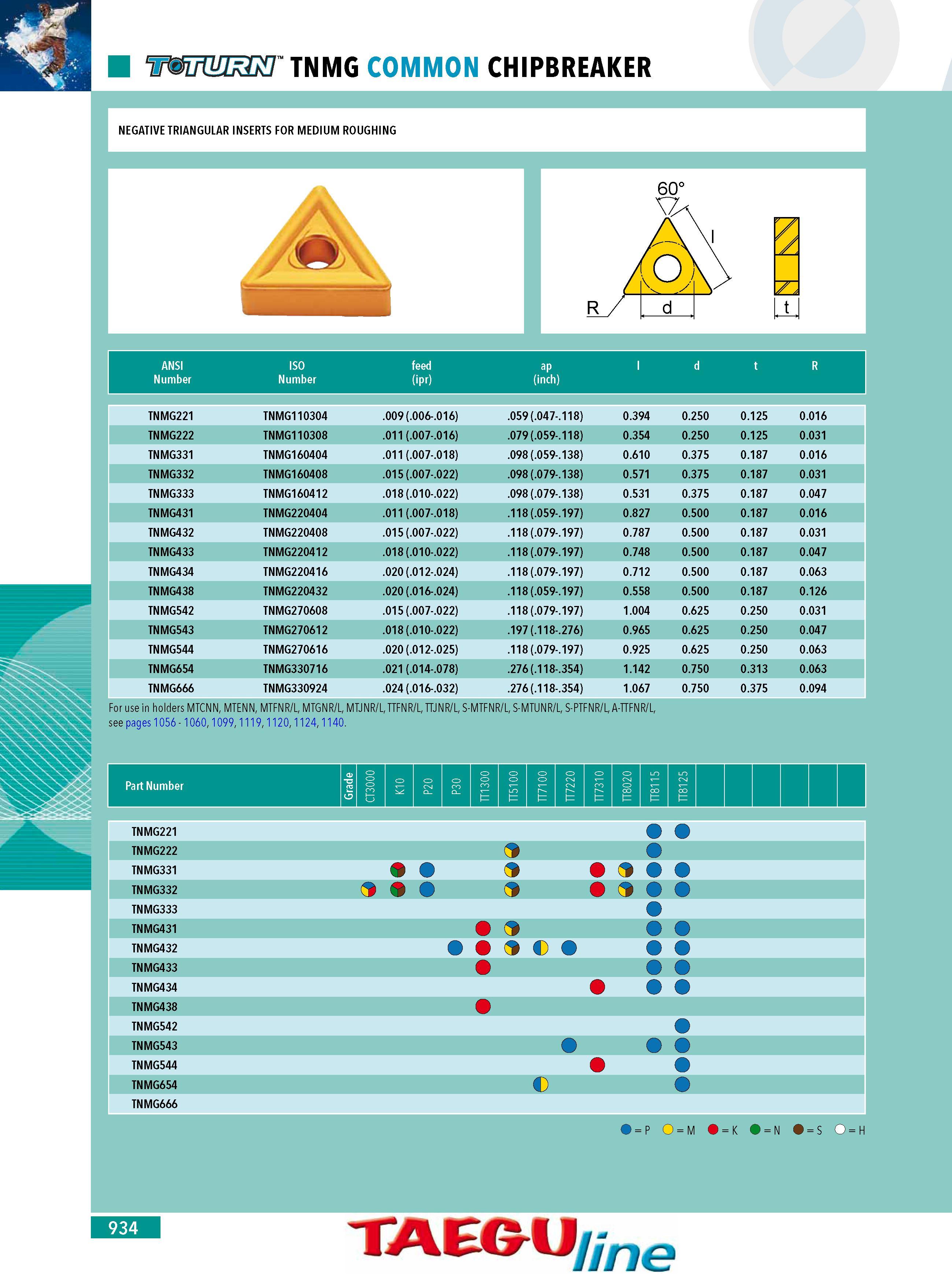

932 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.934

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 934 0932 Lab2u

TNMG COMMON CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM ROUGHING 60 ANSI ISO feed ap ld t R Number Number (ipr) (inch) For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR LTTFNR LTTJNR LS-MTFNR LS-MTUNR L S-PTFNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1124 1140. Part Number TNMG221 TNMG110304 .009 (.006-.016) .059 (.047-.118) 0.394 0.250 0.125 0.016 TNMG222 TNMG110308 .011 (.007-.016) .079 (.059-.118) 0.354 0.250 0.125 0.031 TNMG331 TNMG160404 .011 (.007-.018) .098 (.059-.138) 0.610 0.375 0.187 0.016 TNMG332 TNMG160408 .015 (.007-.022) .098 (.079-.138) 0.571 0.375 0.187 0.031 TNMG333 TNMG160412 .018 (.010-.022) .098 (.079-.138) 0.531 0.375 0.187 0.047 TNMG431 TNMG220404 .011 (.007-.018) .118 (.059-.197) 0.827 0.500 0.187 0.016 TNMG432 TNMG220408 .015 (.007-.022) .118 (.079-.197) 0.787 0.500 0.187 0.031 TNMG433 TNMG220412 .018 (.010-.022) .118 (.079-.197) 0.748 0.500 0.187 0.047 TNMG434 TNMG220416 .020 (.012-.024) .118 (.079-.197) 0.712 0.500 0.187 0.063 TNMG438 TNMG220432 .020 (.016-.024) .118 (.059-.197) 0.558 0.500 0.187 0.126 TNMG542 TNMG270608 .015 (.007-.022) .118 (.079-.197) 1.004 0.625 0.250 0.031 TNMG543 TNMG270612 .018 (.010-.022) .197 (.118-.276) 0.965 0.625 0.250 0.047 TNMG544 TNMG270616 .020 (.012-.025) .118 (.079-.197) 0.925 0.625 0.250 0.063 TNMG654 TNMG330716 .021 (.014-.078) .276 (.118-.354) 1.142 0.750 0.313 0.063 TNMG666 TNMG330924 .024 (.016-.032) .276 (.118-.354) 1.067 0.750 0.375 0.094 TNMG221 TNMG222 TNMG331 TNMG332 O 9 TNMG333 O TNMG431 TNMG432 TNMG433 TNMG434 TNMG438 TNMG542 O TNMG543 TNMG544 TNMG654 TNMG666 P O M O K O N O S O H TAE&U me t 934
