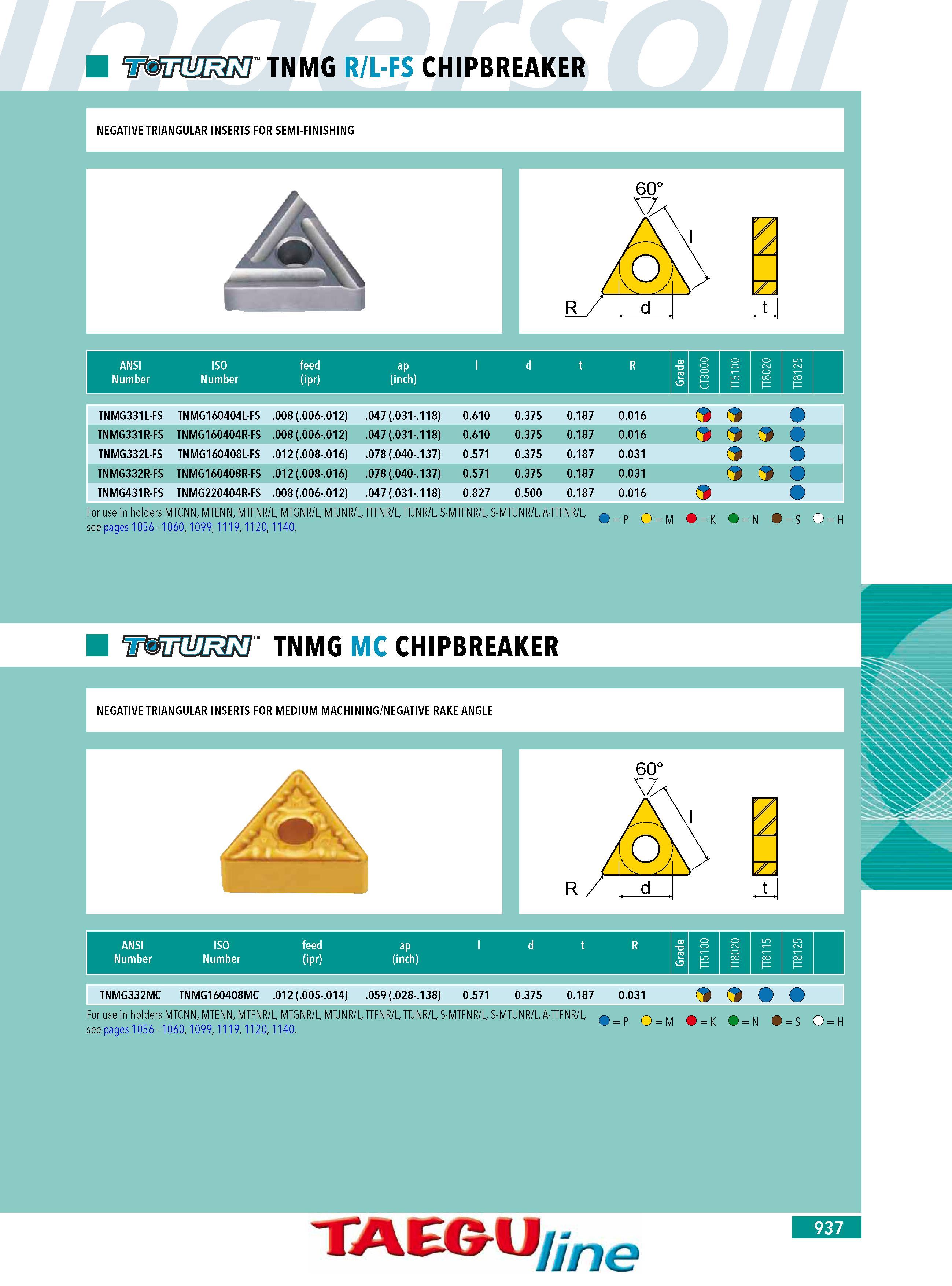

TNMG R L-FS CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR SEMI-FINISHING ANSI Number ISO Number TNMG331L-FS TNMG160404L-FS .008 (.006-.012) .047 (.031-.118) 0.610 0.375 0.187 0.016 o TNMG331R-FS TNMG160404R-FS .008 (.006-.012) .047 (.031-.118) 0.610 0.375 0.187 0.016 TNMG332L-FS TNMG160408L-FS .012 (.008-.016) .078 (.040-.137) 0.571 0.375 0.187 0.031 o TNMG332R-FS TNMG160408R-FS .012 (.008-.016) .078 (.040-.137) 0.571 0.375 0.187 0.031 TNMG431R-FS TNMG220404R-FS .008 (.006-.012) .047 (.031-.118) 0.827 0.500 0.187 0.016 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L see pages 1056 - 1060 1099 1119 1120 1140. ) P O M O K N ) S O H ITMJMkR '" TNMG MC CHIPBREAKER NEGATIVE TRIANGULAR INSERTS FOR MEDIUM MACHINING NEGATIVE RAKE ANGLE 60 ZL feed (ipr) d R t ap (inch) t ANSI ISO feed ap l d t R Number Number (ipr) (inch) TNMG332MC TNMG160408MC .012 (.005-.014) .059 (.028-.138) 0.571 0.375 0.187 0.031 For use in holders MTCNN MTENN MTFNR L MTGNR L MTJNR L TTFNR L TTJNR L S-MTFNR L S-MTUNR L A-TTFNR L D n n nM nc ru see pages 1056 - 1060 1099 1119 1120 1140. TAEG-1J 7e 937
