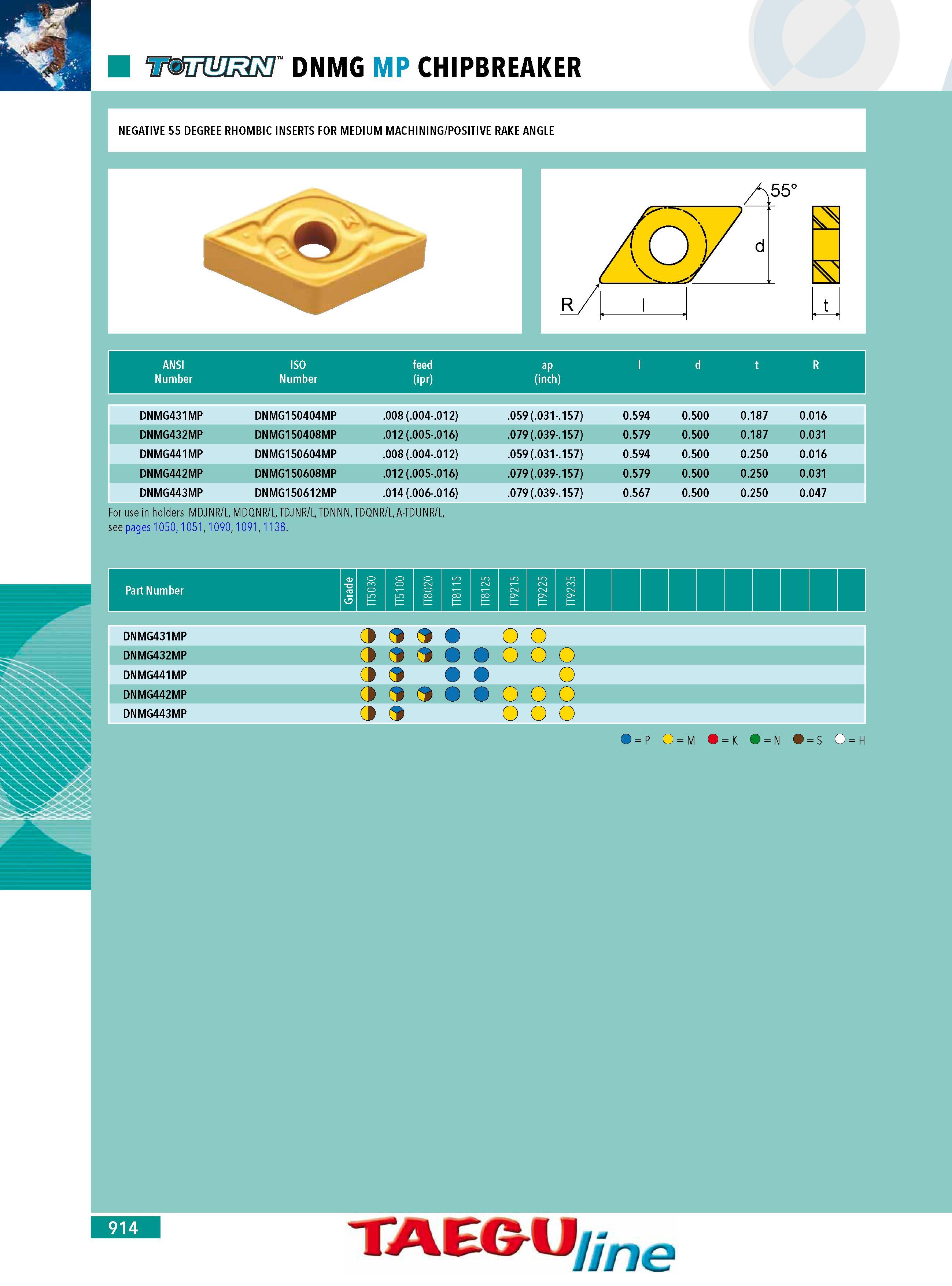

912 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.914

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 914 0912 Lab2u

DNMG MP CHIPBREAKER NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING POSITIVE RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) DNMG431MP DNMG150404MP .008 (.004-.012) .059 (.031-.157) 0.594 0.500 0.187 0.016 DNMG432MP DNMG150408MP .012 (.005-.016) .079 (.039-.157) 0.579 0.500 0.187 0.031 DNMG441MP DNMG150604MP .008 (.004-.012) .059 (.031-.157) 0.594 0.500 0.250 0.016 DNMG442MP DNMG150608MP .012 (.005-.016) .079 (.039-.157) 0.579 0.500 0.250 0.031 DNMG443MP DNMG150612MP .014 (.006-.016) .079 (.039-.157) 0.567 0.500 0.250 0.047 For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L see pages 1050 1051 1090 1091 1138. Part Number DNMG431MP 3 9 O DNMG432MP O o DNMG441MP 3 o DNMG442MP 3 o DNMG443MP 3 9 P O M K O N S O H 914 TAEGU line
