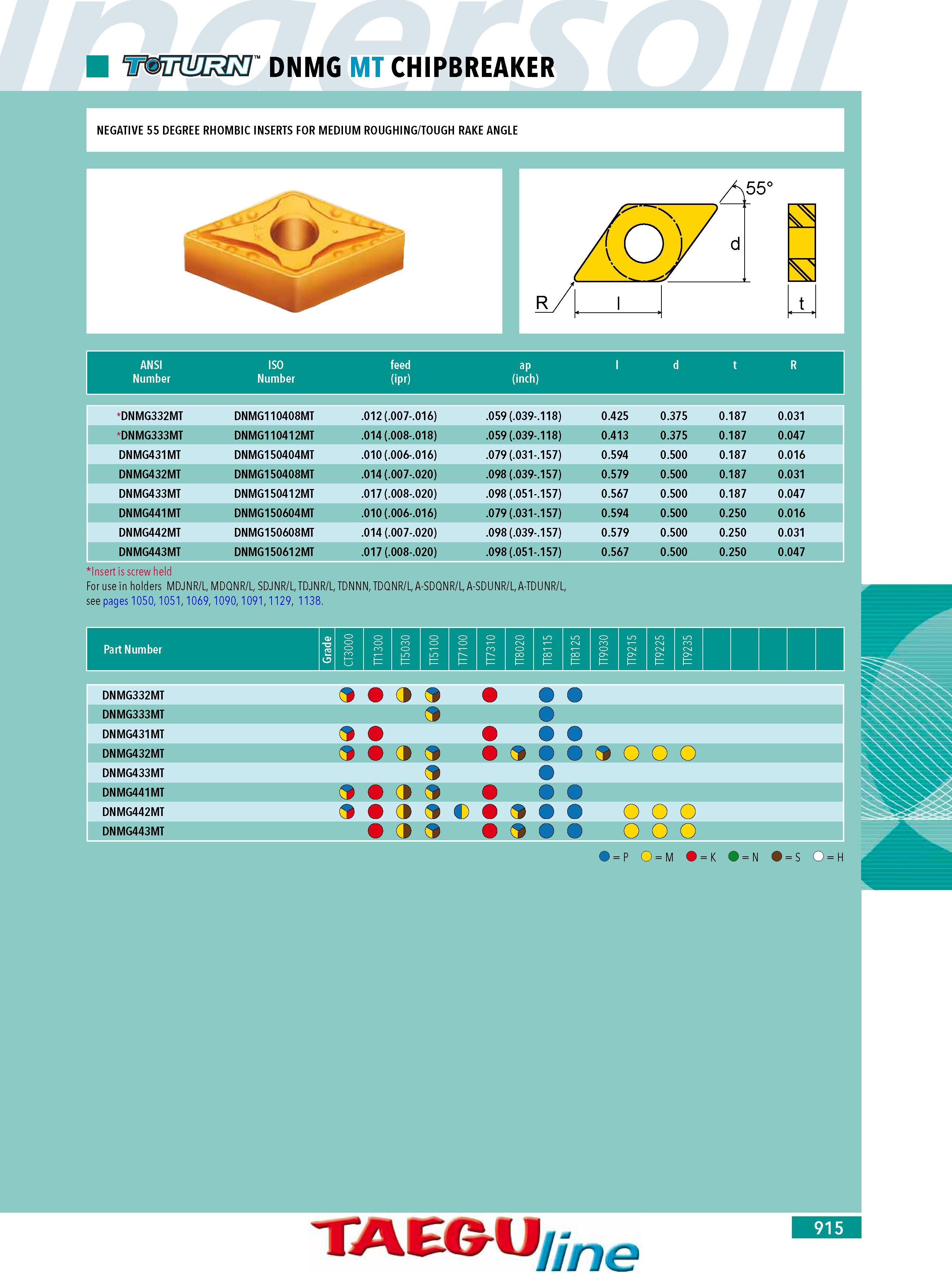

DNMG MT CHIPBREAKER NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING TOUGH RAKE ANGLE ANSI ISO feed ap l d tt RR Number NNmber (ipr) (inch) DNMG332MT DNMG110408MT .012 (.007-.016) .059 (.039-.118) 0.425 0.375 0.187 0.031 DNMG333MT DNMG110412MT .014 (.008-.018) .059 (.039-.118) 0.413 0.375 0.187 0.047 DNMG431MT DNMG150404MT .010 (.006-.016) .079 (.031-.157) 0.594 0.500 0.187 0.016 DNMG432MT DNMG150408MT .014 (.007-.020) .098 (.039-.157) 0.579 0.500 0.187 0.031 DNMG433MT DNMG150412MT .017 (.008-.020) .098 (.051-.157) 0.567 0.500 0.187 0.047 DNMG441MT DNMG150604MT .010 (.006-.016) .079 (.031-.157) 0.594 0.500 0.250 0.016 DNMG442MT DNMG150608MT .014 (.007-.020) .098 (.039-.157) 0.579 0.500 0.250 0.031 DNMG443MT DNMG150612MT .017 (.008-.020) .098 (.051-.157) 0.567 0.500 0.250 0.047 Insert is screw held For use in holders MDJNR L MDQNR L SDJNR L TDJNR L TDNNN TDQNR L A-SDQNR L A-SDUNR L A-TDUNR L see pages 1050 1051 1069 1090 1091 1129 1138. Part Number DNMG332MT 3 3 3 DNMG333MT 3 DNMG431MT 3 DNMG432MT 3 3 3 3 3 O DNMG433MT 3 DNMG441MT 3 3 3 DNMG442MT 3 3 3 3 O DNMG443MT 3 3 3 O P O M O K O N O S O H TAEGU line 915
