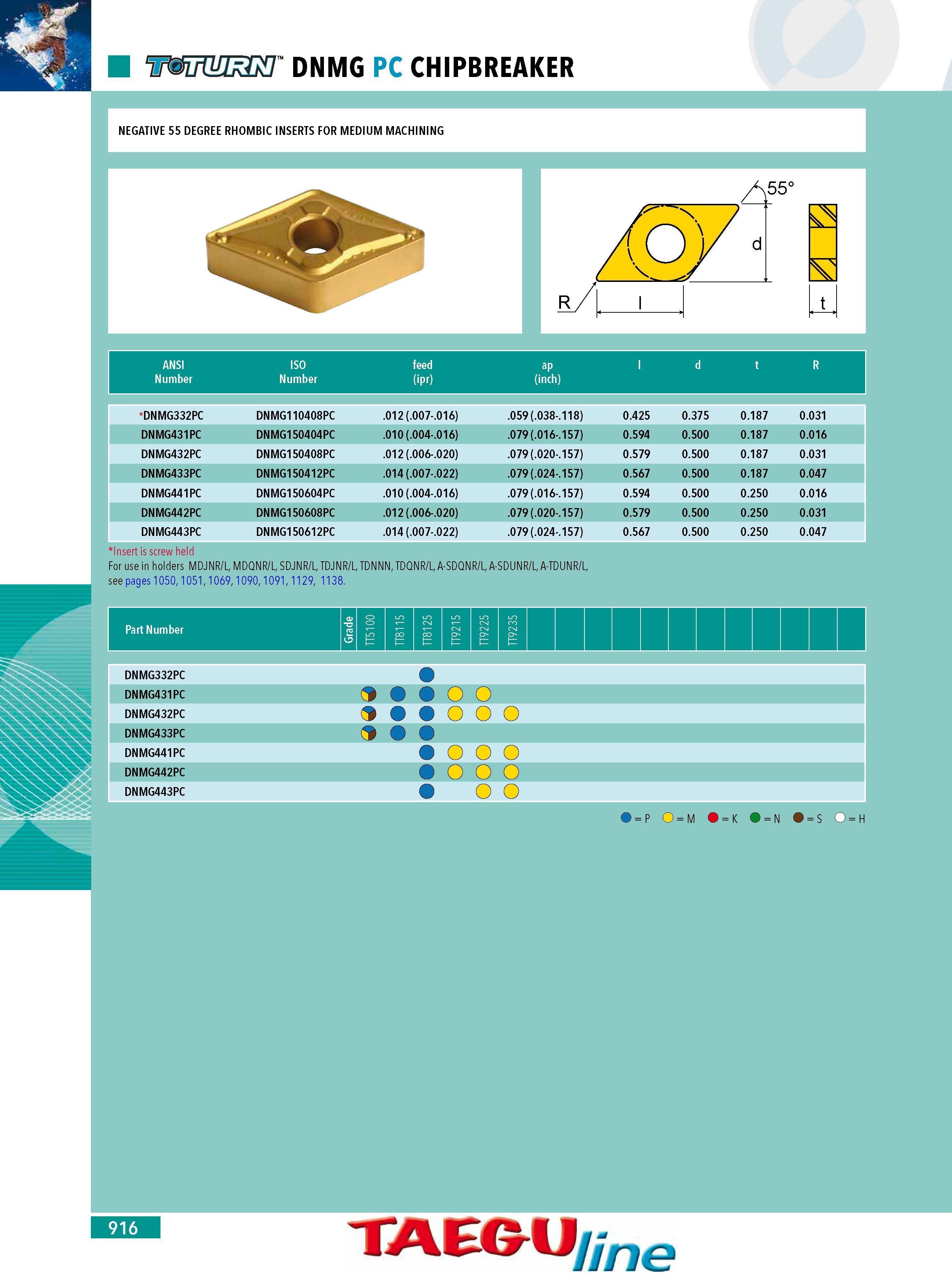

DNMG PC CHIPBREAKER NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING A55 ANSI ISO feed ap l d t R Number Number (ipr) (inch) Insert is screw held For use in holders MDJNR L MDQNR L SDJNR L TDJNR L TDNNN TDQNR L A-SDQNR L A-SDUNR L A-TDUNR L see pages 1050 1051 1069 1090 1091 1129 1138. Part Number LO LO LO LO LO 12123 CO CO O DNMG332PC DNMG110408PC .012 (.007-.016) .059 (.038-.118) 0.425 0.375 0.187 0.031 DNMG431PC DNMG150404PC .010 (.004-.016) .079 (.016-.157) 0.594 0.500 0.187 0.016 DNMG432PC DNMG150408PC .012 (.006-.020) .079 (.020-.157) 0.579 0.500 0.187 0.031 DNMG433PC DNMG150412PC .014 (.007-.022) .079 (.024-.157) 0.567 0.500 0.187 0.047 DNMG441PC DNMG150604PC .010 (.004-.016) .079 (.016-.157) 0.594 0.500 0.250 0.016 DNMG442PC DNMG150608PC .012 (.006-.020) .079 (.020-.157) 0.579 0.500 0.250 0.031 DNMG443PC DNMG150612PC .014 (.007-.022) .079 (.024-.157) 0.567 0.500 0.250 0.047 DNMG332PC DNMG431PC DNMG432PC DNMG433PC o DNMG441PC o DNMG442PC o DNMG443PC o P O M K O N S O H t 916 TAEGU line
