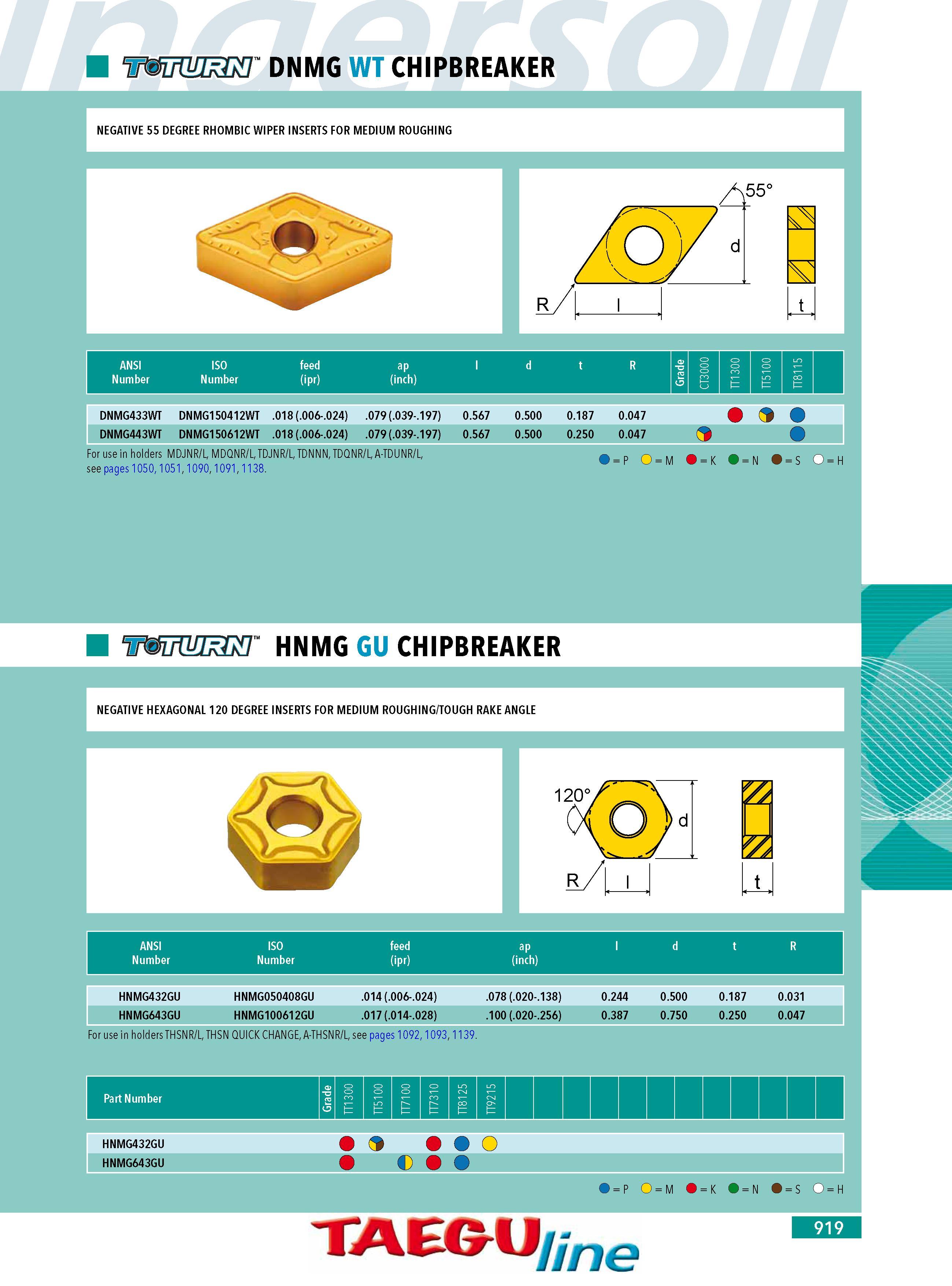

dnmg wt chipbreaker NEGATIVE 55 DEGREE RHOMBIC WIPER INSERTS FOR MEDIUM ROUGHING ANSI ISO feed ap l d t R e -a 0 0 o 0 0 0 0 5 Number Number (ipr) (inch) Gr T3 TC TT1 LO TT5 CO TT8 I DNMG433WT DNMG150412WT .018 (.006-.024) .079 (.039-.197) 0.567 0.500 0.187 0.047 t 9 DNMG443WT DNMG150612WT .018 (.006-.024) .079 (.039-.197) 0.567 0.500 0.250 0.047 9 For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L 0d0 0i 0m0c0u see pages 1050 1051 1090 1091 1138. U P U M U K U N U S U H ITWMkH '" hnmg gu chipbreaker NEGATIVE HEXAGONAL 120 DEGREE INSERTS FOR MEDIUM ROUGHING TOUGH RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) HNMG432GU HNMG050408GU .014 (.006-.024) .078 (.020-.138) 0.244 0.500 0.187 0.031 HNMG643GU HNMG100612GU .017 (.014-.028) .100 (.020-.256) 0.387 0.750 0.250 0.047 For use in holders THSNR LTHSN QUICK CHANGE A-THSNR L see pages 1092 1093 1139. Part Number HNMG432GU 9 O HNMG643GU O P O M O K O N O S O H TAEGU e -
