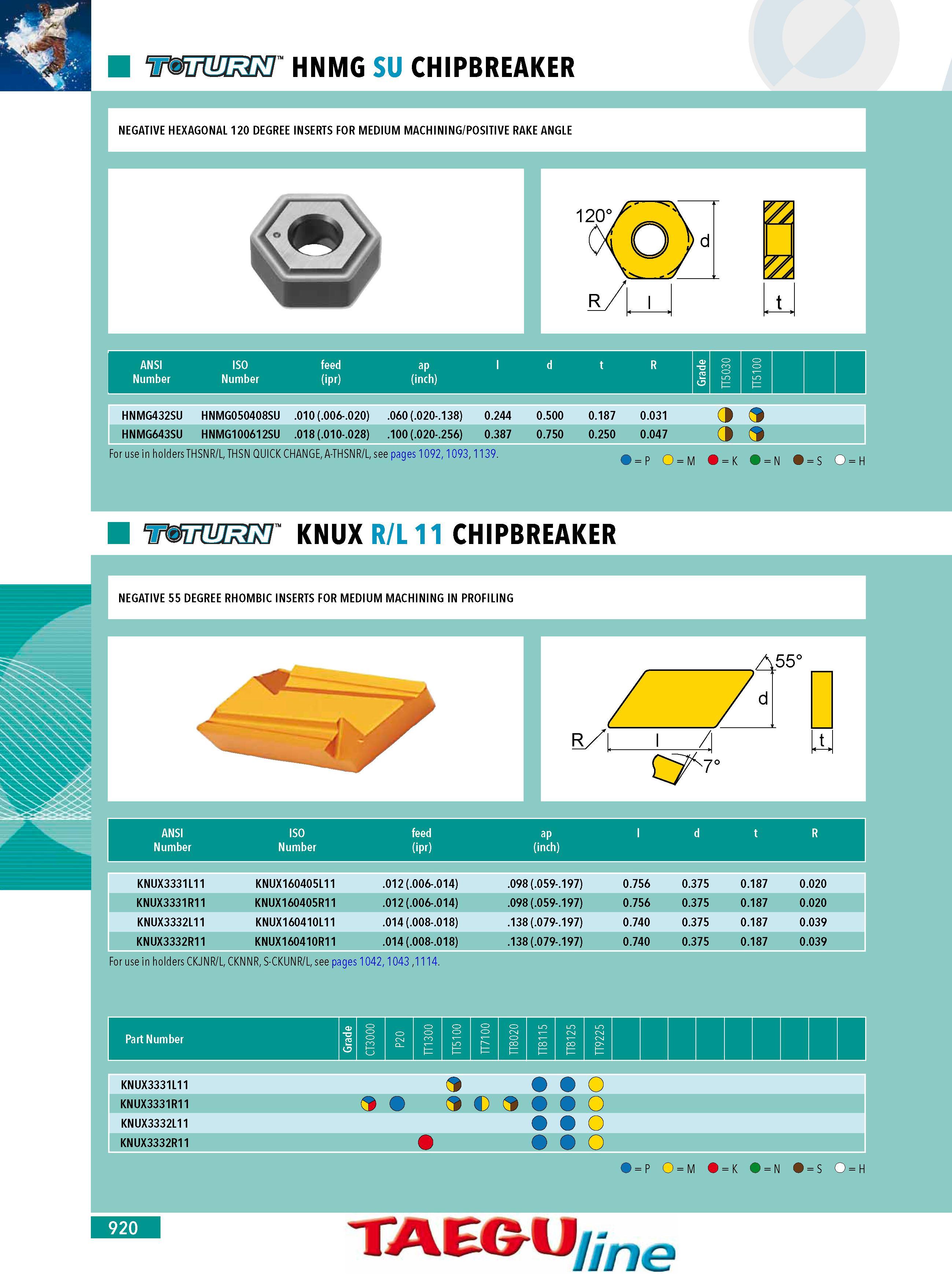

HNMG SU CHIPBREAKER NEGATIVE HEXAGONAL 120 DEGREE INSERTS FOR MEDIUM MACHINING POSITIVE RAKE ANGLE ANSI ISO feed ap l d t R Grade TT5030 TT5100 Number Number (ipr) (inch) HNMG432SU HNMG050408SU .010 (.006-.020) .060 (.020-.138) 0.244 0.500 0.187 0.031 3 HNMG643SU HNMG100612SU .018 (.010-.028) .100 (.020-.256) 0.387 0.750 0.250 0.047 3 For use in holders THSNR LTHSN QUICK CHANGE A-THSNR L see pages 1092 1093 1139. O P O M N S O H K umnujnRr knux r l 11 chipbreaker NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING IN PROFILING A55 ANSI ISO feed ap ld t R Number Number (ipr) (inch) KNUX3331L11 KNUX160405L11 .012 (.006-.014) .098 (.059-.197) 0.756 0.375 0.187 0.020 KNUX3331R11 KNUX160405R11 .012 (.006-.014) .098 (.059-.197) 0.756 0.375 0.187 0.020 KNUX3332L11 KNUX160410L11 .014 (.008-.018) .138 (.079-.197) 0.740 0.375 0.187 0.039 KNUX3332R11 KNUX160410R11 .014 (.008-.018) .138 (.079-.197) 0.740 0.375 0.187 0.039 d t For use in holders CKJNR L CKNNR S-CKUNR L see pages 1042 1043 1114. Part Number KNUX3331L11 1 o KNUX3331R11 s o KNUX3332L11 o KNUX3332R11 920 O P O M O K O N O S O H TAEGU ie
