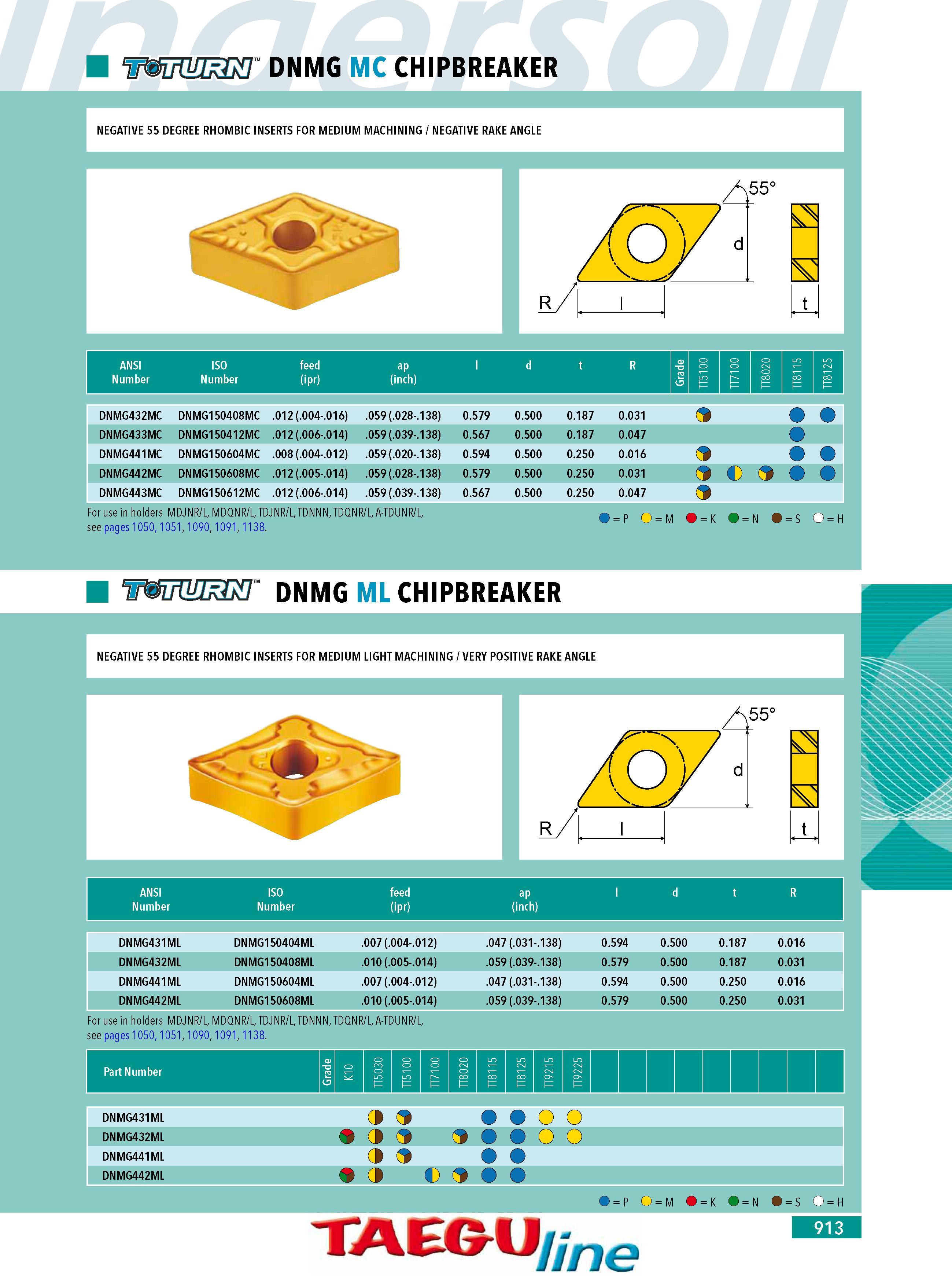

911 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.913

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 913 0911 Lab2u

dnmg mc chipbreaker NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING NEGATIVE RAKE ANGLE ANSI Number ISO Number DNMG432MC DNMG150408MC .012 (.004-.016) .059 (.028-.138) 0.579 0.500 0.187 0.031 3 DNMG433MC DNMG150412MC .012 (.006-.014) .059 (.039-.138) 0.567 0.500 0.187 0.047 DNMG441MC DNMG150604MC .008 (.004-.012) .059 (.020-.138) 0.594 0.500 0.250 0.016 3 DNMG442MC DNMG150608MC .012 (.005-.014) .059 (.028-.138) 0.579 0.500 0.250 0.031 3 3 DNMG443MC DNMG150612MC .012 (.006-.014) .059 (.039-.138) 0.567 0.500 0.250 0.047 ( feed (ipr) d R t ap (inch) For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L see pages 1050 1051 1090 1091 1138. ) P O M O K O N O S O H uWWjSZDNMG ML CHIPBREAKER NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR MEDIUM LIGHT MACHINING VERY POSITIVE RAKE ANGLE For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L see pages 1050 1051 1090 1091 1138. t ANSI ISO feed ap ld t R Number Number (ipr) (inch) DNMG431ML DNMG150404ML .007 (.004-.012) .047 (.031-.138) 0.594 0.500 0.187 0.016 DNMG432ML DNMG150408ML .010 (.005-.014) .059 (.039-.138) 0.579 0.500 0.187 0.031 DNMG441ML DNMG150604ML .007 (.004-.012) .047 (.031-.138) 0.594 0.500 0.250 0.016 DNMG442ML DNMG150608ML .010 (.005-.014) .059 (.039-.138) 0.579 0.500 0.250 0.031 m OOOOLOLOLOLO -o o coooc- o o DNMG431ML 3 3 O o DNMG432ML 3 3 3 O o DNMG441ML 3 3 DNMG442ML 3 3 Part Number O P O M O K O N O S O H TAEGU ie -
