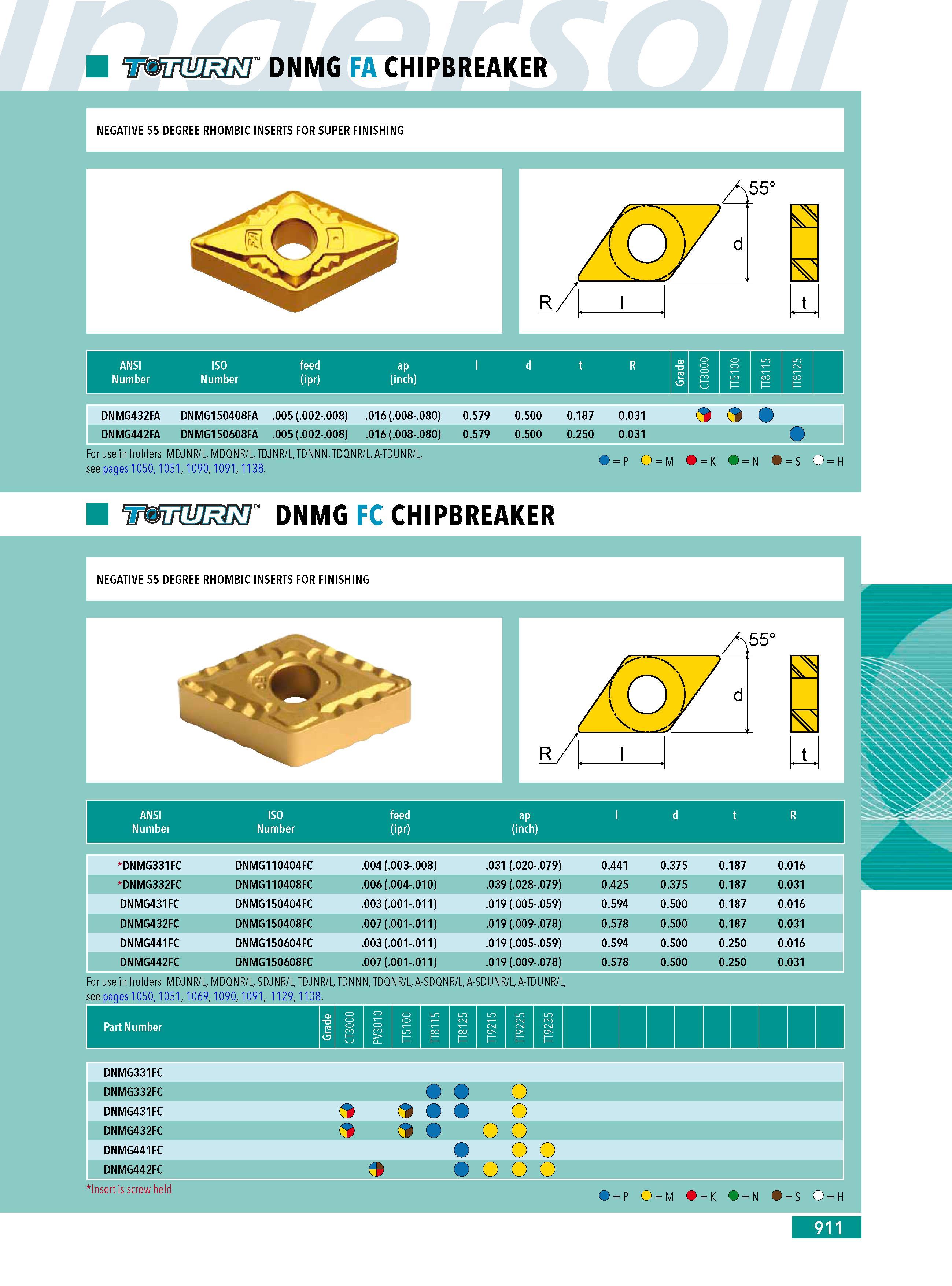

dnmg fa chipbreaker NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR SUPER FINISHING ANSI Number ISO Number DNMG432FA DNMG150408FA .005 (.002-.008) .016 (.008-.080) 0.579 0.500 0.187 0.031 DNMG442FA DNMG150608FA .005 (.002-.008) .016 (.008-.080) 0.579 0.500 0.250 0.031 feed (ipr) d R t ap (inch) For use in holders MDJNR L MDQNR L TDJNR L TDNNN TDQNR L A-TDUNR L see pages 1050 1051 1090 1091 1138. uWWmi' DNMG FC CHIPBREAKER O P O M O K O N O S O H NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR FINISHING ANSI ISO feed ap ld t R Number Number (ipr) (inch) DNMG331FC DNMG110404FC .004 (.003-.008) .031 (.020-.079) 0.441 0.375 0.187 0.016 DNMG332FC DNMG110408FC .006 (.004-.010) .039 (.028-.079) 0.425 0.375 0.187 0.031 DNMG431FC DNMG150404FC .003 (.001-.011) .019 (.005-.059) 0.594 0.500 0.187 0.016 DNMG432FC DNMG150408FC .007 (.001-.011) .019 (.009-.078) 0.578 0.500 0.187 0.031 DNMG441FC DNMG150604FC .003 (.001-.011) .019 (.005-.059) 0.594 0.500 0.250 0.016 DNMG442FC DNMG150608FC .007 (.001-.011) .019 (.009-.078) 0.578 0.500 0.250 0.031 t For use in holders MDJNR L MDQNR L SDJNR L TDJNR L TDNNN TDQNR L A-SDQNR L A-SDUNR L A-TDUNR L see pages 1050 1051 1069 1090 1091 1129 1138. DNMG331FC DNMG332FC o DNMG431FC 9 o DNMG432FC 9 DNMG441FC DNMG442FC 9 o Insert is screw held ) P O M K N ) S O H 911
