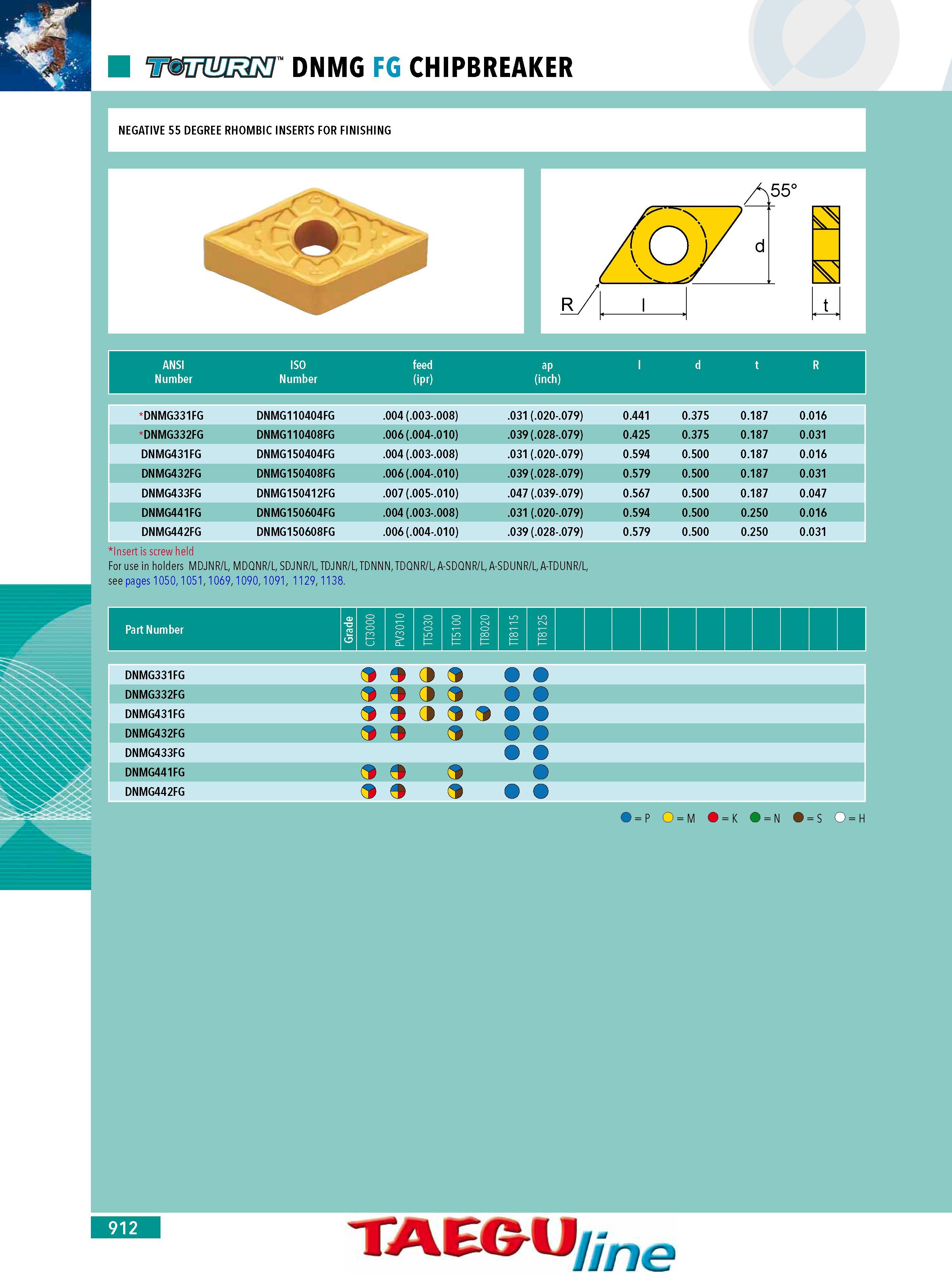

dnmg fg chipbreaker NEGATIVE 55 DEGREE RHOMBIC INSERTS FOR FINISHING ANSI ISO feed ap ld t R Number Number (ipr) (inch) Insert is screw held For use in holders MDJNR L MDQNR L SDJNR L TDJNR L TDNNN TDQNR L A-SDQNR L A-SDUNR L A-TDUNR L see pages 1050 1051 1069 1090 1091 1129 1138. Part Number DNMG331FG DNMG110404FG .004 (.003-.008) .031 (.020-.079) 0.441 0.375 0.187 0.016 DNMG332FG DNMG110408FG .006 (.004-.010) .039 (.028-.079) 0.425 0.375 0.187 0.031 DNMG431FG DNMG150404FG .004 (.003-.008) .031 (.020-.079) 0.594 0.500 0.187 0.016 DNMG432FG DNMG150408FG .006 (.004-.010) .039 (.028-.079) 0.579 0.500 0.187 0.031 DNMG433FG DNMG150412FG .007 (.005-.010) .047 (.039-.079) 0.567 0.500 0.187 0.047 DNMG441FG DNMG150604FG .004 (.003-.008) .031 (.020-.079) 0.594 0.500 0.250 0.016 DNMG442FG DNMG150608FG .006 (.004-.010) .039 (.028-.079) 0.579 0.500 0.250 0.031 DNMG331FG 9 9 O 9 DNMG332FG 9 9 3 9 DNMG431FG 9 9 3 9 9 DNMG432FG 9 9 9 DNMG433FG DNMG441FG 9 9 9 DNMG442FG 9 9 9 O P O M K O N S O H 912 TAEGU line
