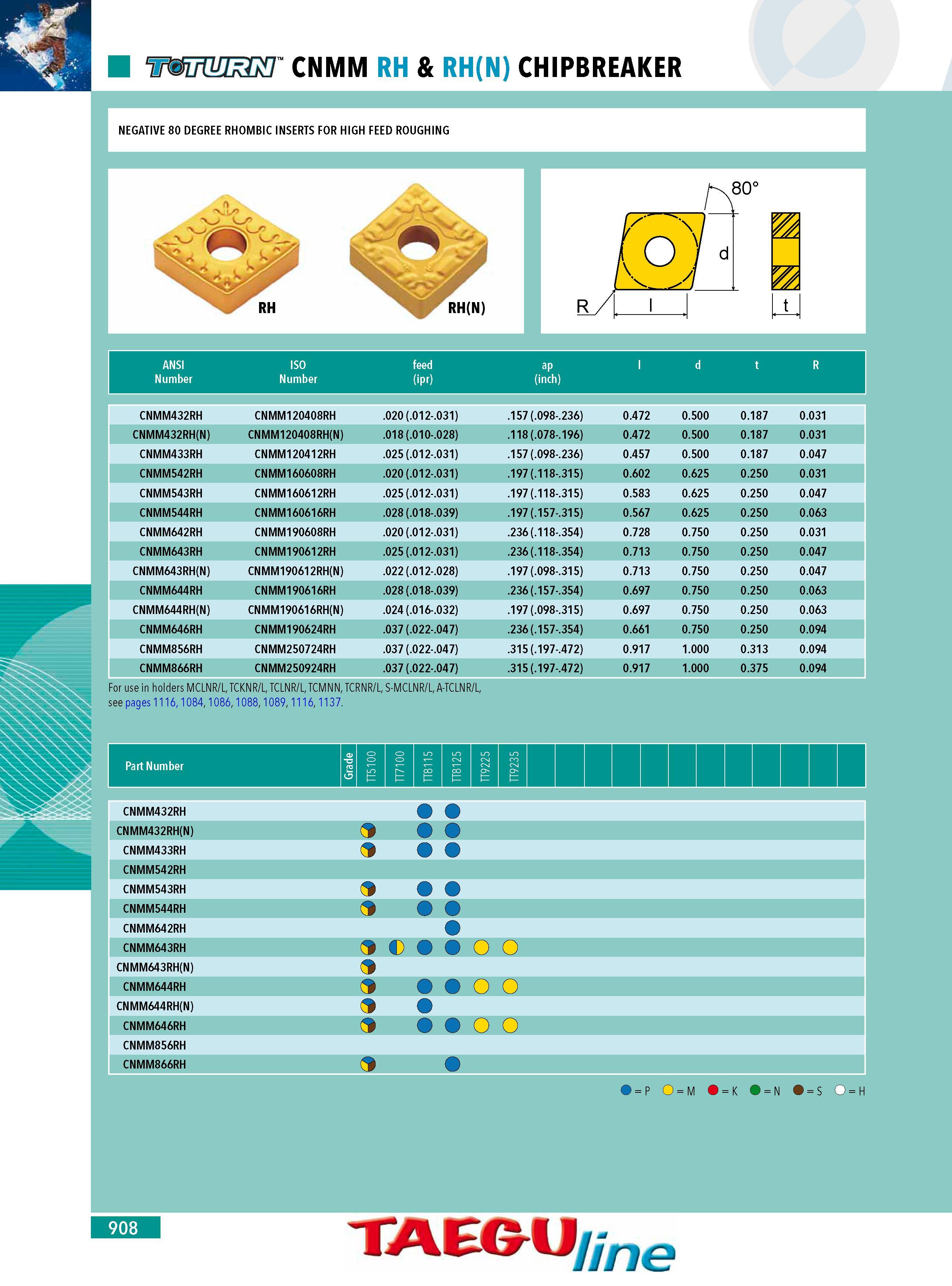

CNMM RH & RH(N) CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR HIGH FEED ROUGHING R r 80 % l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L see pages 1116 1084 1086 1088 1089 1116 1137. Part Number CNMM432RH CNMM120408RH .020 (.012-.031) .157 (.098-.236) 0.472 0.500 0.187 0.031 CNMM432RH(N) CNMM120408RH(N) .018 (.010-.028) .118 (.078-.196) 0.472 0.500 0.187 0.031 CNMM433RH CNMM120412RH .025 (.012-.031) .157 (.098-.236) 0.457 0.500 0.187 0.047 CNMM542RH CNMM160608RH .020 (.012-.031) .197 (.118-.315) 0.602 0.625 0.250 0.031 CNMM543RH CNMM160612RH .025 (.012-.031) .197 (.118-.315) 0.583 0.625 0.250 0.047 CNMM544RH CNMM160616RH .028 (.018-.039) .197 (.157-.315) 0.567 0.625 0.250 0.063 CNMM642RH CNMM190608RH .020 (.012-.031) .236 (.118-.354) 0.728 0.750 0.250 0.031 CNMM643RH CNMM190612RH .025 (.012-.031) .236 (.118-.354) 0.713 0.750 0.250 0.047 CNMM643RH(N) CNMM190612RH(N) .022 (.012-.028) .197 (.098-.315) 0.713 0.750 0.250 0.047 CNMM644RH CNMM190616RH .028 (.018-.039) .236 (.157-.354) 0.697 0.750 0.250 0.063 CNMM644RH(N) CNMM190616RH(N) .024 (.016-.032) .197 (.098-.315) 0.697 0.750 0.250 0.063 CNMM646RH CNMM190624RH .037 (.022-.047) .236 (.157-.354) 0.661 0.750 0.250 0.094 CNMM856RH CNMM250724RH .037 (.022-.047) .315 (.197-.472) 0.917 1.000 0.313 0.094 CNMM866RH CNMM250924RH .037 (.022-.047) .315 (.197-.472) 0.917 1.000 0.375 0.094 CNMM432RH CNMM432RH(N) 9 CNMM433RH CNMM542RH CNMM543RH C CNMM544RH CNMM642RH CNMM643RH o CNMM643RH(N) o CNMM644RH o CNMM644RH(N) CNMM646RH o CNMM856RH CNMM866RH O P O M K O N S O H TAEGAJ ne 908
