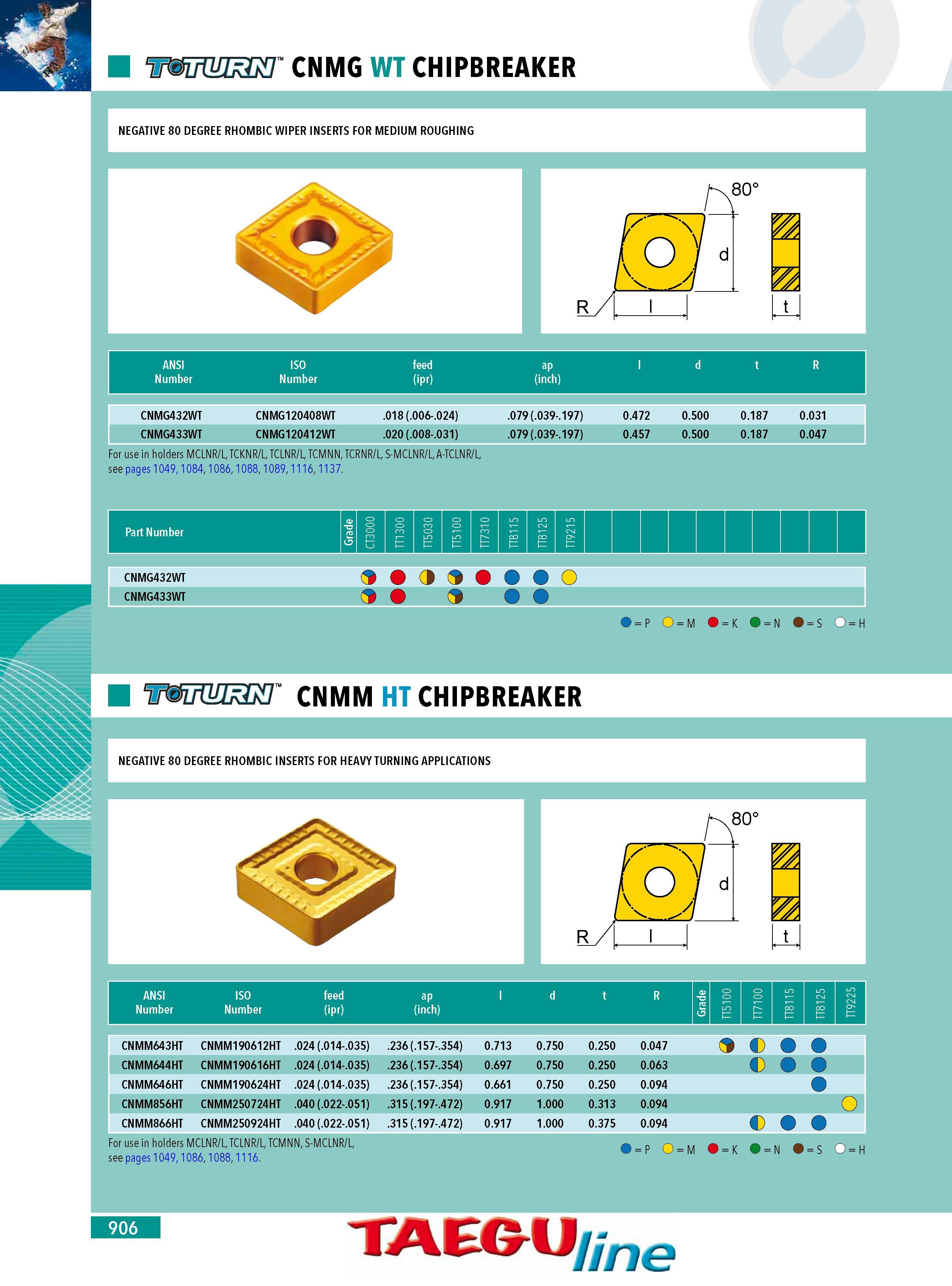

CNMG WT CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC WIPER INSERTS FOR MEDIUM ROUGHING 80 i t ANSI ISO feed ap l d t R Number Number (ipr) (inch) CNMG432WT CNMG120408WT .018 (.006-.024) .079 (.039-.197) 0.472 0.500 0.187 0.031 CNMG433WT CNMG120412WT .020 (.008-.031) .079 (.039-.197) 0.457 0.500 0.187 0.047 For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L see pages 1049 1084 1086 1088 1089 1116 1137. Part Number CNMG432WT 3 9 O CNMG433WT 9 O P O M K O N S O H WiMnRCNMM HT CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR HEAVY TURNING APPLICATIONS R 80 LJ- V . l t ANSI Number ISO Number CNMM643HT CNMM190612HT .024 (.014-.035) .236 (.157-.354) 0.713 0.750 0.250 0.047 c CNMM644HT CNMM190616HT .024 (.014-.035) .236 (.157-.354) 0.697 0.750 0.250 0.063 c CNMM646HT CNMM190624HT .024 (.014-.035) .236 (.157-.354) 0.661 0.750 0.250 0.094 CNMM856HT CNMM250724HT .040 (.022-.051) .315 (.197-.472) 0.917 1.000 0.313 0.094 o CNMM866HT CNMM250924HT .040 (.022-.051) .315 (.197-.472) 0.917 1.000 0.375 0.094 c For use in holders MCLNR L TCLNR L TCMNN S-MCLNR L see pages 1049 1086 1088 1116. O P O M N S O H feed (ipr) d R ap (inch) K 906 TAEGU line
