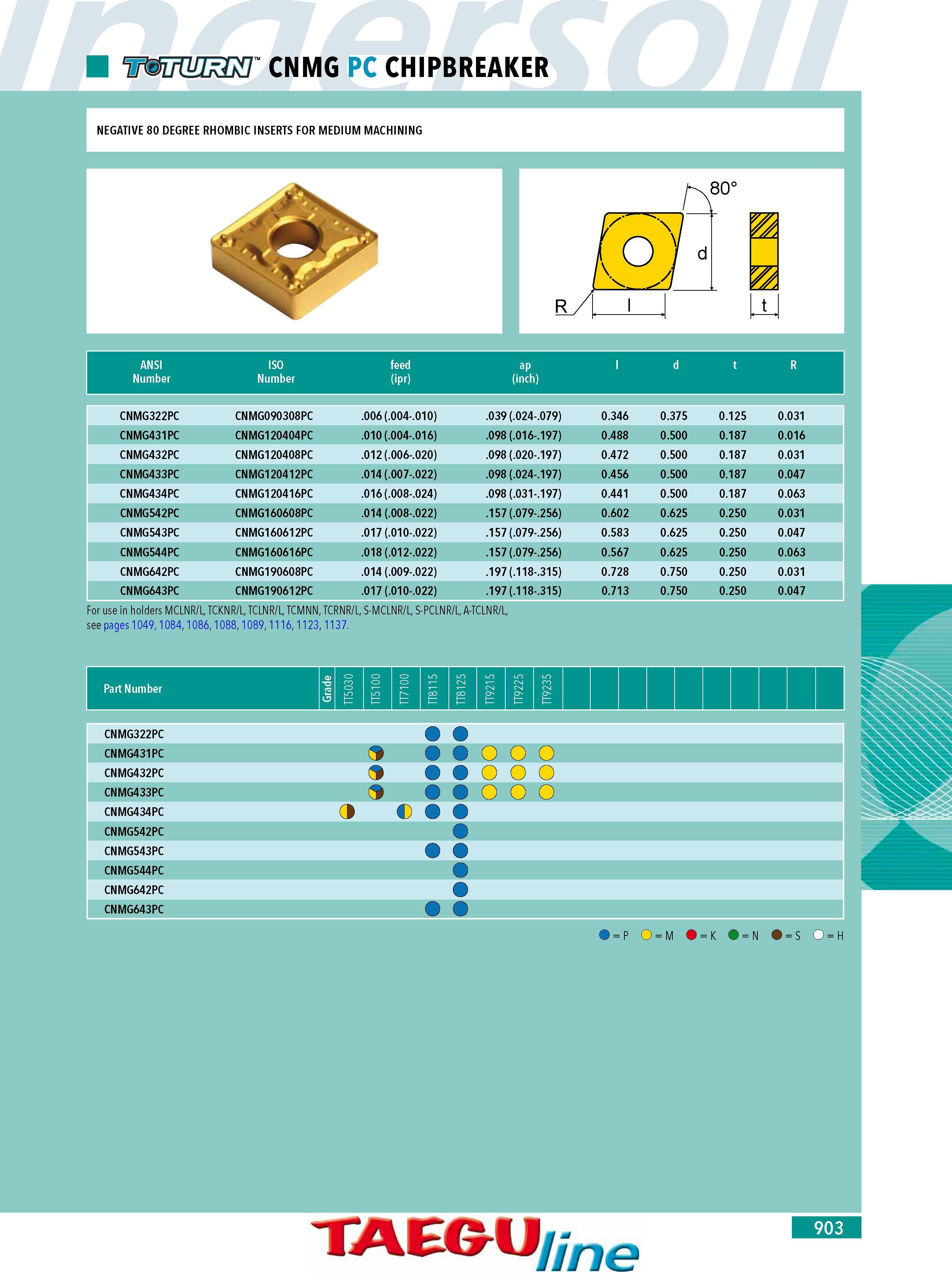

901 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.903

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 903 0901 Lab2u

CNMG PC CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING For use in holders MCLNR L TCKNR L TCLNR L TCMNN see pages 1049 1084 1086 1088 1089 1116 1123 TCRNR L S-MCLNR L S-PCLNR L A-TCLNR L 1137. Part Number ANH Niimber ISO Nm er feed (ipr) ap (inch) ll dd tt RR CNMG322PC CNMG090308PC .006 (.004-.010) .039 (.024-.079) 0.346 0.375 0.125 0.031 CNMG431PC CNMG120404PC .010 (.004-.016) .098 (.016-.197) 0.488 0.500 0.187 0.016 CNMG432PC CNMG120408PC .012 (.006-.020) .098 (.020-.197) 0.472 0.500 0.187 0.031 CNMG433PC CNMG120412PC .014 (.007-.022) .098 (.024-.197) 0.456 0.500 0.187 0.047 CNMG434PC CNMG120416PC .016 (.008-.024) .098 (.031-.197) 0.441 0.500 0.187 0.063 CNMG542PC CNMG160608PC .014 (.008-.022) .157 (.079-.256) 0.602 0.625 0.250 0.031 CNMG543PC CNMG160612PC .017 (.010-.022) .157 (.079-.256) 0.583 0.625 0.250 0.047 CNMG544PC CNMG160616PC .018 (.012-.022) .157 (.079-.256) 0.567 0.625 0.250 0.063 CNMG642PC CNMG190608PC .014 (.009-.022) .197 (.118-.315) 0.728 0.750 0.250 0.031 CNMG643PC CNMG190612PC .017 (.010-.022) .197 (.118-.315) 0.713 0.750 0.250 0.047 CNMG322PC CNMG431PC O o CNMG432PC O CNMG433PC CNMG434PC 3 CNMG542PC O CNMG543PC CNMG544PC O CNMG642PC O CNMG643PC O P O M O K O N O S O H TAEOU ne t 903
