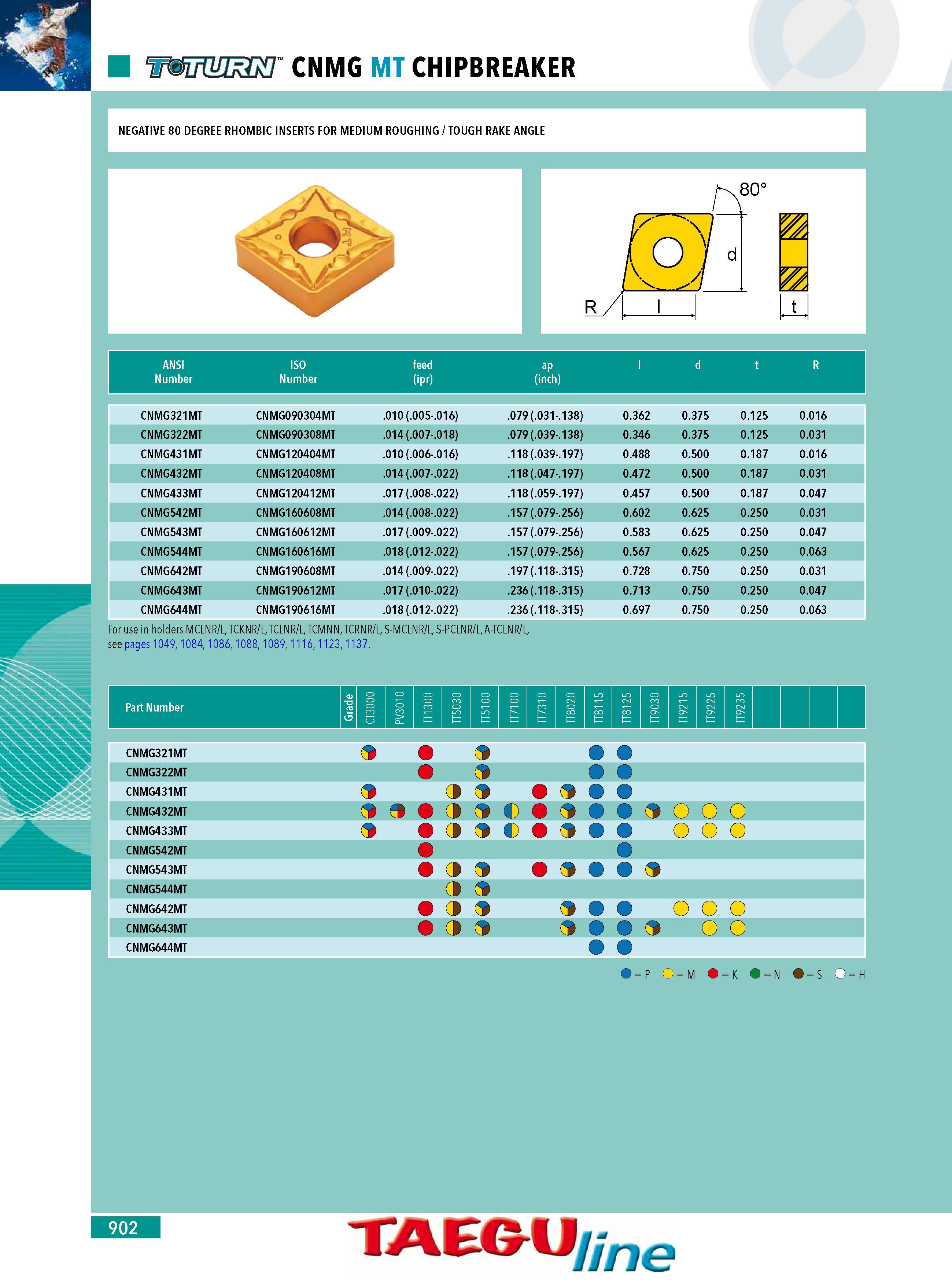

900 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.902

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 902 0900 Lab2u

cnmg mt chipbreaker NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM ROUGHING TOUGH RAKE ANGLE 80 r . l t For use in holders MCLNR L TCKNR L TCLNR L TCMNN see pages 1049 1084 1086 1088 1089 1116 1123 TCRNR L S-MCLNR L S-PCLNR L A-TCLNR L 1137. Part Number TT TT TT TT TT TT TT TT TT TT TT TT ANSI ISO feed ap l d t R Number Number (ipr) (inch) CNMG321MT CNMG090304MT .010 (.005-.016) .079 (.031-.138) 0.362 0.375 0.125 0.016 CNMG322MT CNMG090308MT .014 (.007-.018) .079 (.039-.138) 0.346 0.375 0.125 0.031 CNMG431MT CNMG120404MT .010 (.006-.016) .118 (.039-.197) 0.488 0.500 0.187 0.016 CNMG432MT CNMG120408MT .014 (.007-.022) .118 (.047-.197) 0.472 0.500 0.187 0.031 CNMG433MT CNMG120412MT .017 (.008-.022) .118 (.059-.197) 0.457 0.500 0.187 0.047 CNMG542MT CNMG160608MT .014 (.008-.022) .157 (.079-.256) 0.602 0.625 0.250 0.031 CNMG543MT CNMG160612MT .017 (.009-.022) .157 (.079-.256) 0.583 0.625 0.250 0.047 CNMG544MT CNMG160616MT .018 (.012-.022) .157 (.079-.256) 0.567 0.625 0.250 0.063 CNMG642MT CNMG190608MT .014 (.009-.022) .197 (.118-.315) 0.728 0.750 0.250 0.031 CNMG643MT CNMG190612MT .017 (.010-.022) .236 (.118-.315) 0.713 0.750 0.250 0.047 CNMG644MT CNMG190616MT .018 (.012-.022) .236 (.118-.315) 0.697 0.750 0.250 0.063 CNMG321MT o CNMG322MT CNMG431MT CNMG432MT c 3 (J C CNMG433MT O o CNMG542MT CNMG543MT O CNMG544MT O CNMG642MT 3 o CNMG643MT O CNMG644MT P O M K O N S O H TAEGU line 902
