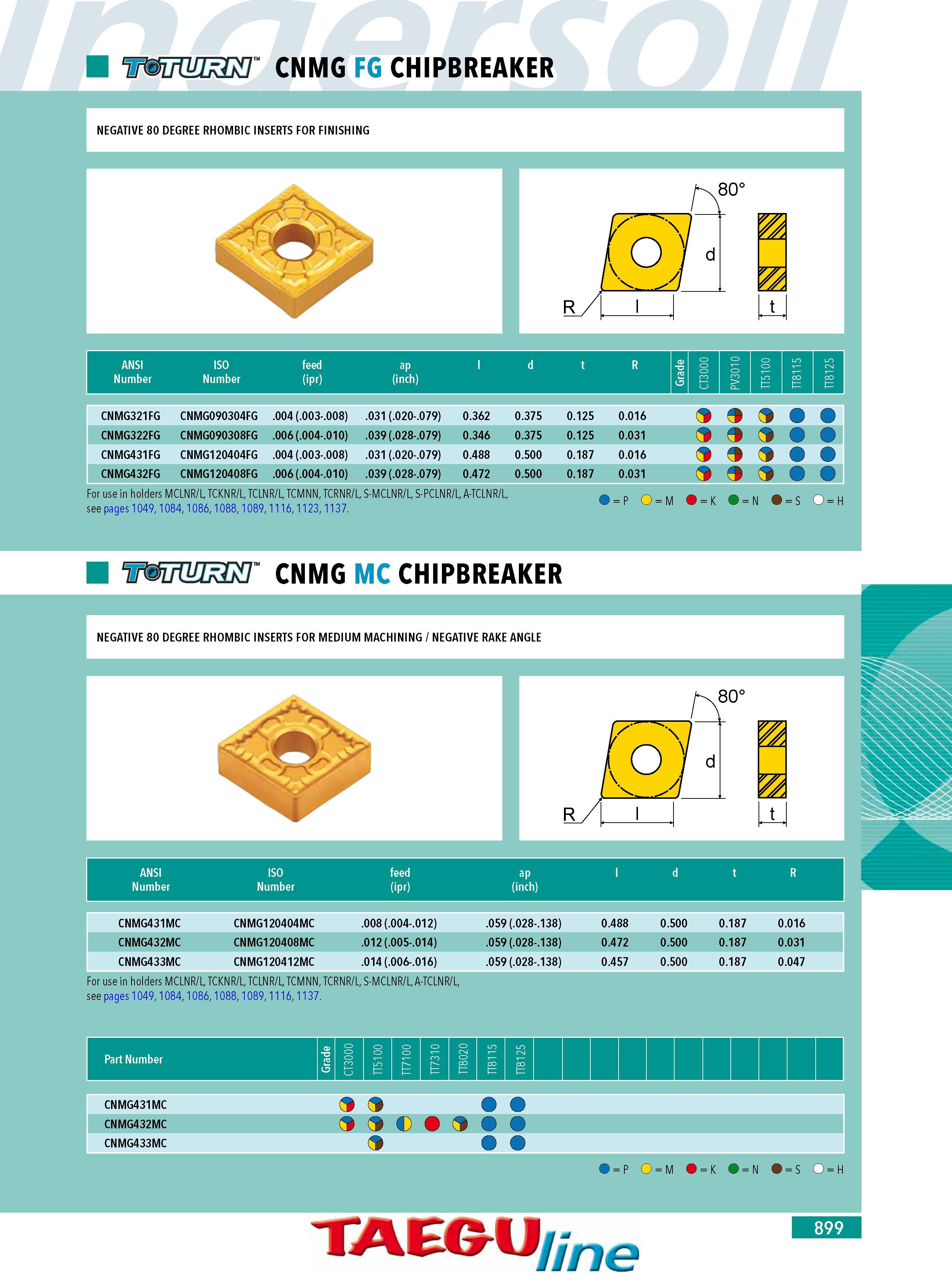

CNMG FG CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR FINISHING ANSI Number ISO Number CNMG321FG CNMG090304FG .004 (.003-.008) .031 (.020-.079) 0.362 0.375 0.125 0.016 9 CNMG322FG CNMG090308FG .006 (.004-.010) .039 (.028-.079) 0.346 0.375 0.125 0.031 CNMG431FG CNMG120404FG .004 (.003-.008) .031 (.020-.079) 0.488 0.500 0.187 0.016 9 CNMG432FG CNMG120408FG .006 (.004-.010) .039 (.028-.079) 0.472 0.500 0.187 0.031 9 1 feed (ipr) d R t ap (inch) For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L S-PCLNR L A-TCLNR L see pages 1049 1084 1086 1088 1089 1116 1123 1137. O P O M ) K O N O S O H wsnmj3 r cnmg mc chipbreaker NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR MEDIUM MACHINING NEGATIVE RAKE ANGLE ANSI ISO feed ap ld t R Number Number (ipr) (inch) CNMG431MC CNMG120404MC .008 (.004-.012) .059 (.028-.138) 0.488 0.500 0.187 0.016 CNMG432MC CNMG120408MC .012 (.005-.014) .059 (.028-.138) 0.472 0.500 0.187 0.031 CNMG433MC CNMG120412MC .014 (.006-.016) .059 (.028-.138) 0.457 0.500 0.187 0.047 For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L see pages 1049 1084 1086 1088 1089 1116 1137. Part Number CNMG431MC CNMG432MC O 9 CNMG433MC ) P O M O K N ) S O H TAEMJ ne
