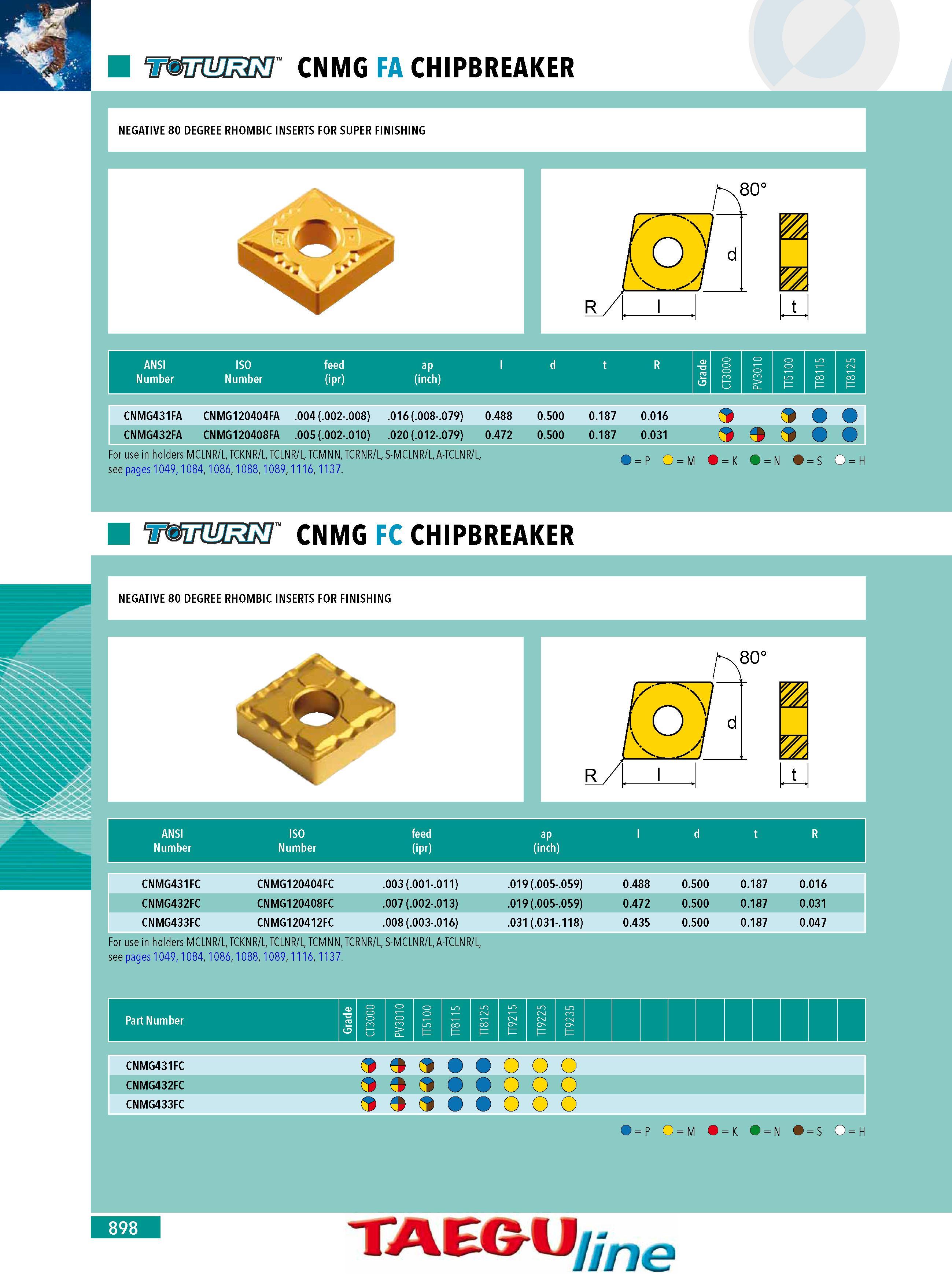

CNMG FA CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR SUPER FINISHING R 80 fp) . l t ANSI ISO feed ap l d t R Number Number (ipr) (inch) e d Gr 0 0 o T3 TC 0 o CO P TT5100 TT8115 TT8125 CNMG431FA CNMG120404FA .004 (.002-.008) .016 (.008-.079) 0.488 0.500 0.187 0.016 o 9 CNMG432FA CNMG120408FA .005 (.002-.010) .020 (.012-.079) 0.472 0.500 0.187 0.031 9 O 1 For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L see pages 1049 1084 1086 1088 1089 1116 1137. O P O M K O N S O H wmnnw CNMG FC CHIPBREAKER NEGATIVE 80 DEGREE RHOMBIC INSERTS FOR FINISHING R r 8 j i For use in holders MCLNR L TCKNR L TCLNR L TCMNN TCRNR L S-MCLNR L A-TCLNR L see pages 1049 1084 1086 1088 1089 1116 1137. ANSI ISO feed ap ld t R Number Number (ipr) (inch) CNMG431FC CNMG120404FC .003 (.001-.011) .019 (.005-.059) 0.488 0.500 0.187 0.016 CNMG432FC CNMG120408FC .007 (.002-.013) .019 (.005-.059) 0.472 0.500 0.187 0.031 CNMG433FC CNMG120412FC .008 (.003-.016) .031 (.031-.118) 0.435 0.500 0.187 0.047 t Part Number CNMG431FC o 9 o CNMG432FC 9 o CNMG433FC O 9 o 898 O P O M O K O N O S O H TAEGU le
