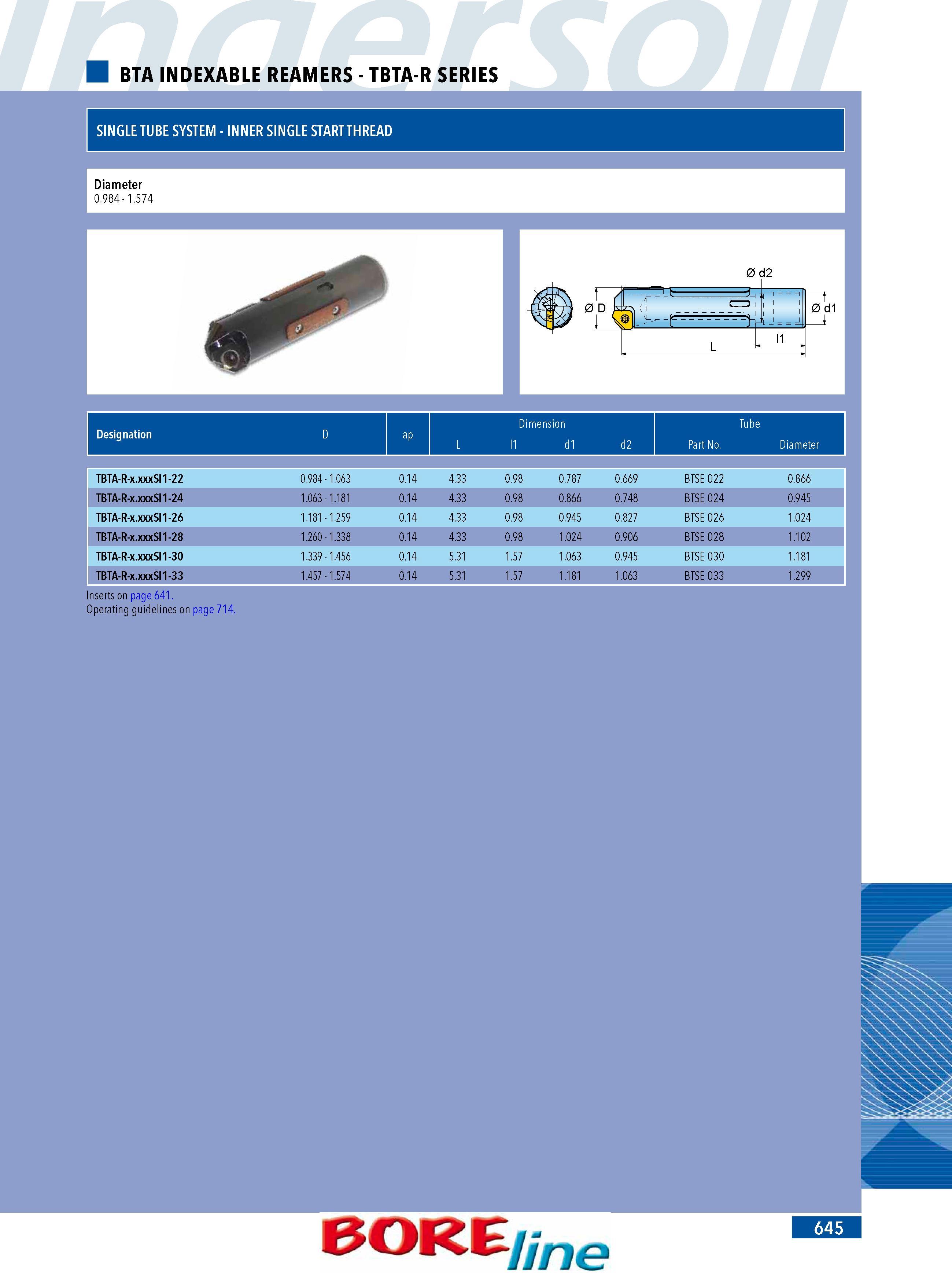

BTA INDEXABLE REAMERS - TBTA-R SERIES SINGLE TUBE SYSTEM - INNER SINGLE START THREAD Designation Dimension Tube d d Part No. Diameter TBTA-R-x.xxxSI1-22 0.984 - 1.063 0.14 4.33 0.98 0.787 0.669 BTSE 022 0.866 TBTA-R-x.xxxSI1-24 1.063 - 1.181 0.14 4.33 0.98 0.866 0.748 BTSE 024 0.945 TBTA-R-x.xxxSI1-26 1.181 - 1.259 0.14 4.33 0.98 0.945 0.827 BTSE 026 1.024 TBTA-R-x.xxxSI1-28 1.260 - 1.338 0.14 4.33 0.98 1.024 0.906 BTSE 028 1.102 TBTA-R-x.xxxSI1-30 1.339 - 1.456 0.14 5.31 1.57 1.063 0.945 BTSE 030 1.181 TBTA-R-x.xxxSI1-33 1.457 - 1.574 0.14 5.31 1.57 1.181 1.063 BTSE 033 1.299 D Inserts on page 641. Operating guidelines on page 714. BORE ne 645
