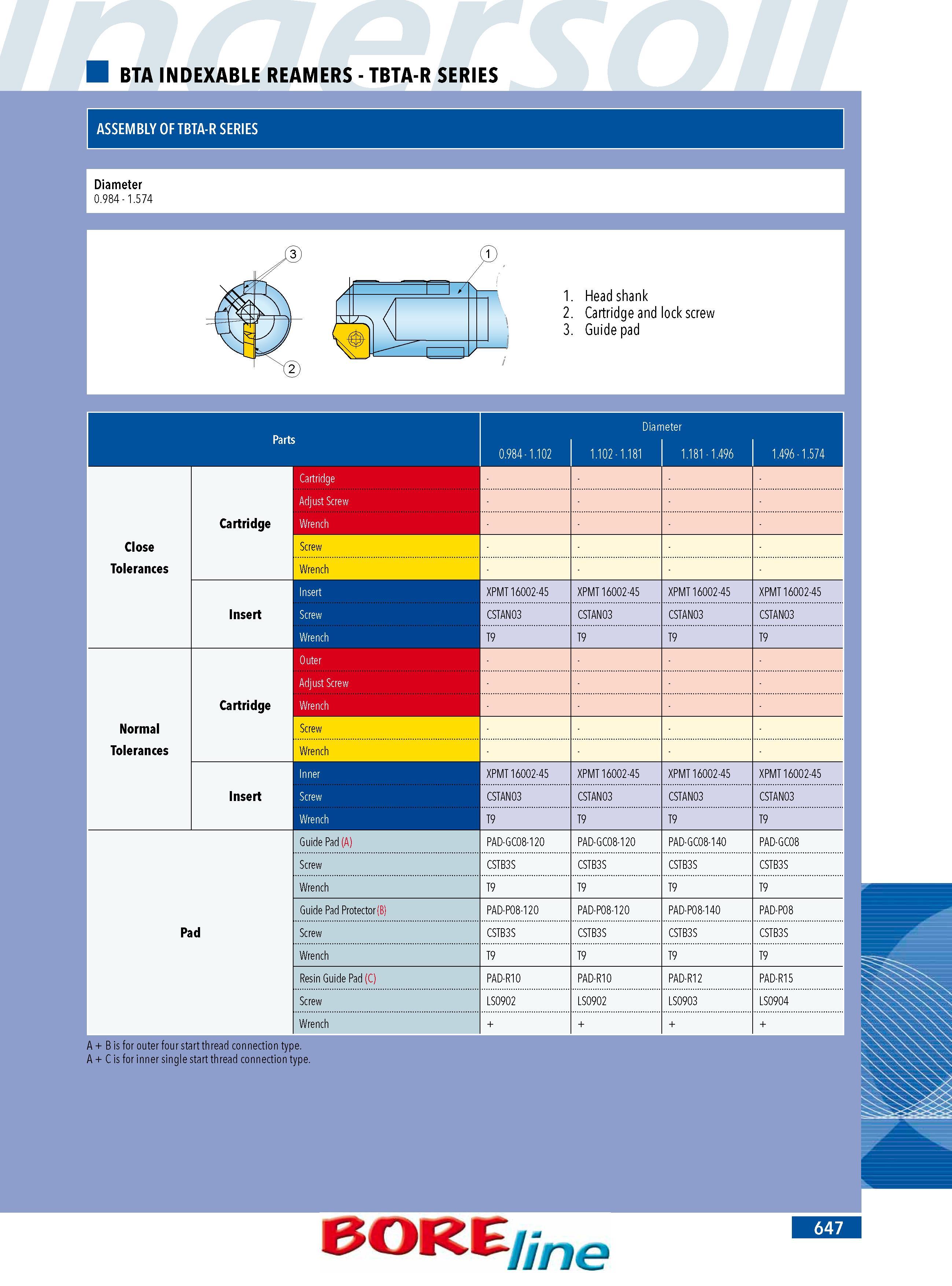

BTA INDEXABLE REAMERS - TBTA-R SERIES ASSEMBLY OF TBTA-R SERIES Diameter 0.984 - 1.574 Parts Diameter 0.984 - 1.102 1.102 - 1.181 1.181 - 1.496 1.496 - 1.574 Cartridge Adjust Screw Cartridge Wrench Close Screw Tolerances Wrench Insert XPMT 16002-45 XPMT 16002-45 XPMT 16002-45 XPMT 16002-45 Insert Screw CSTAN03 CSTAN03 CSTAN03 CSTAN03 Wrench T9 T9 T9 T9 Outer Adjust Screw Cartridge Wrench Normal Screw Tolerances Wrench Inner XPMT 16002-45 XPMT 16002-45 XPMT 16002-45 XPMT 16002-45 Insert Screw CSTAN03 CSTAN03 CSTAN03 CSTAN03 Wrench T9 T9 T9 T9 Guide Pad (A) PAD-GC08-120 PAD-GC08-120 PAD-GC08-140 PAD-GC08 Screw CSTB3S CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 T9 Guide Pad Protector (B) PAD-P08-120 PAD-P08-120 PAD-P08-140 PAD-P08 Pad Screw CSTB3S CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 T9 Resin Guide Pad (C) PAD-R10 PAD-R10 PAD-R12 PAD-R15 Screw LS0902 LS0902 LS0903 LS0904 Wrench A + B is for outer four start thread connection type. A + C is for inner single start thread connection type. BORE me
