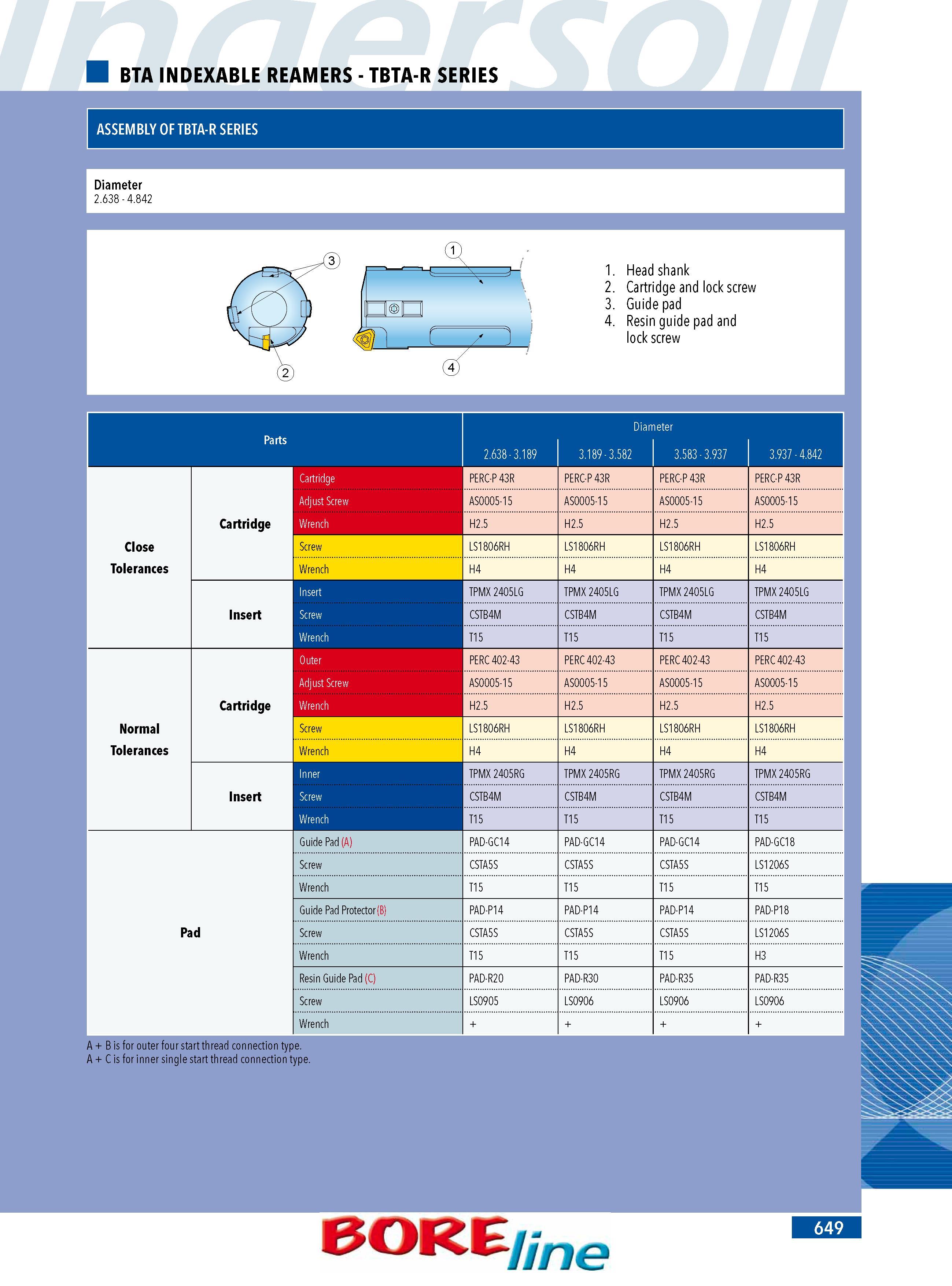

BTA INDEXABLE REAMERS - TBTA-R SERIES ASSEMBLY OF TBTA-R SERIES Diameter 2.638 - 4.842 1. Head shank 2. Cartridge and lock screw 3. Guide pad 4. Resin guide pad and lock screw Diameter 2.638 - 3.189 3.189 - 3.582 3.583 - 3.937 3.937 - 4.842 Cartridge PERC-P 43R PERC-P 43R PERC-P 43R PERC-P 43R Adjust Screw AS0005-15 AS0005-15 AS0005-15 AS0005-15 Cartridge Wrench H2.5 H2.5 H2.5 H2.5 Close Screw LS1806RH LS1806RH LS1806RH LS1806RH Tolerances Wrench H4 H4 H4 H4 Insert TPMX 2405LG TPMX 2405LG TPMX 2405LG TPMX 2405LG Insert Screw CSTB4M CSTB4M CSTB4M CSTB4M Wrench T15 T15 T15 T15 Outer PERC 402-43 PERC 402-43 PERC 402-43 PERC 402-43 Adjust Screw AS0005-15 AS0005-15 AS0005-15 AS0005-15 Cartridge Wrench H2.5 H2.5 H2.5 H2.5 Normal Screw LS1806RH LS1806RH LS1806RH LS1806RH Tolerances Wrench H4 H4 H4 H4 Inner TPMX 2405RG TPMX 2405RG TPMX 2405RG TPMX 2405RG Insert Screw CSTB4M CSTB4M CSTB4M CSTB4M Wrench T15 T15 T15 T15 Guide Pad (A) PAD-GC14 PAD-GC14 PAD-GC14 PAD-GC18 Screw CSTA5S CSTA5S CSTA5S LS1206S Wrench T15 T15 T15 T15 Guide Pad Protector (B) PAD-P14 PAD-P14 PAD-P14 PAD-P18 Pad Screw CSTA5S CSTA5S CSTA5S LS1206S Wrench T15 T15 T15 H3 Resin Guide Pad (C) PAD-R20 PAD-R30 PAD-R35 PAD-R35 Screw LS0905 LS0906 LS0906 LS0906 Wrench A + B is for outer four start thread connection type. A + C is for inner single start thread connection type. BORE me
