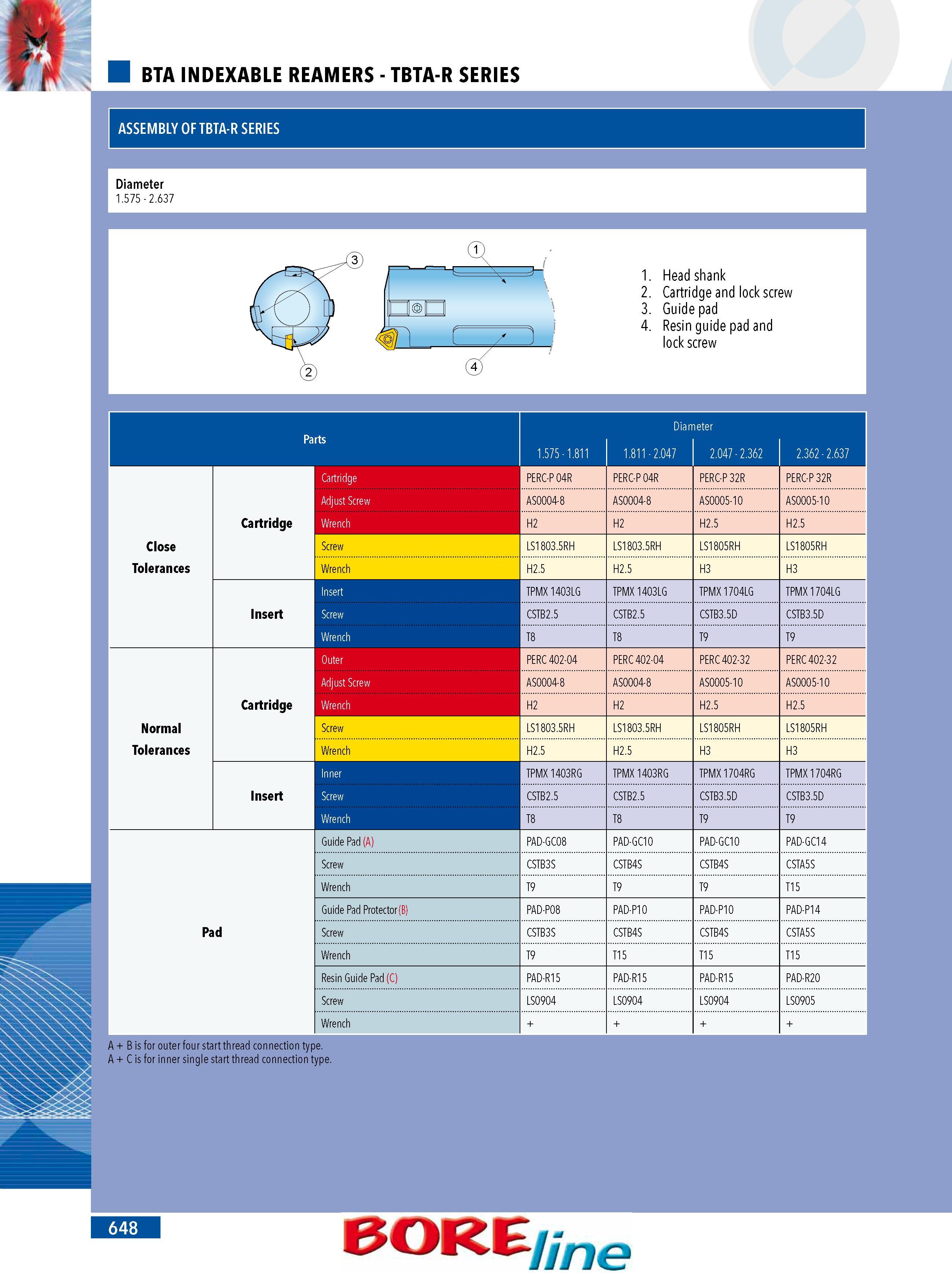

A BTA INDEXABLE REAMERS - TBTA-R SERIES ASSEMBLY OF TBTA-R SERIES Diameter 1.575 - 2.637 Pa rts Diameter 1.575 - 1.811 1.811 - 2.047 2.047 - 2.362 2.362 - 2.637 Cartridge Cartridge PERC-P 04R PERC-P 04R PERC-P 32R PERC-P 32R Adjust Screw AS0004-8 AS0004-8 AS0005-10 AS0005-10 Wrench H2 H2 H2.5 H2.5 Close Screw LS1803.5RH LS1803.5RH LS1805RH LS1805RH Tolerances Wrench H2.5 H2.5 H3 H3 Insert TPMX 1403LG TPMX 1403LG TPMX 1704LG TPMX 1704LG Insert Screw CSTB2.5 CSTB2.5 CSTB3.5D CSTB3.5D Wrench T8 T8 T9 T9 Outer PERC 402-04 PERC 402-04 PERC 402-32 PERC 402-32 Adjust Screw AS0004-8 AS0004-8 AS0005-10 AS0005-10 Cartridge Wrench H2 H2 H2.5 H2.5 Normal Screw LS1803.5RH LS1803.5RH LS1805RH LS1805RH Tolerances Wrench H2.5 H2.5 H3 H3 Inner TPMX 1403RG TPMX 1403RG TPMX 1704RG TPMX 1704RG Insert Screw CSTB2.5 CSTB2.5 CSTB3.5D CSTB3.5D Wrench T8 T8 T9 T9 Guide Pad (A) PAD-GC08 PAD-GC10 PAD-GC10 PAD-GC14 Screw CSTB3S CSTB4S CSTB4S CSTA5S Wrench T9 T9 T9 T15 Guide Pad Protector (B) PAD-P08 PAD-P10 PAD-P10 PAD-P14 Pad Screw CSTB3S CSTB4S CSTB4S CSTA5S Wrench T9 T15 T15 T15 Resin Guide Pad (C) PAD-R15 PAD-R15 PAD-R15 PAD-R20 Screw LS0904 LS0904 LS0904 LS0905 Wrench A + B is for outer four start thread connection type. A + C is for inner single start thread connection type. BOREine
