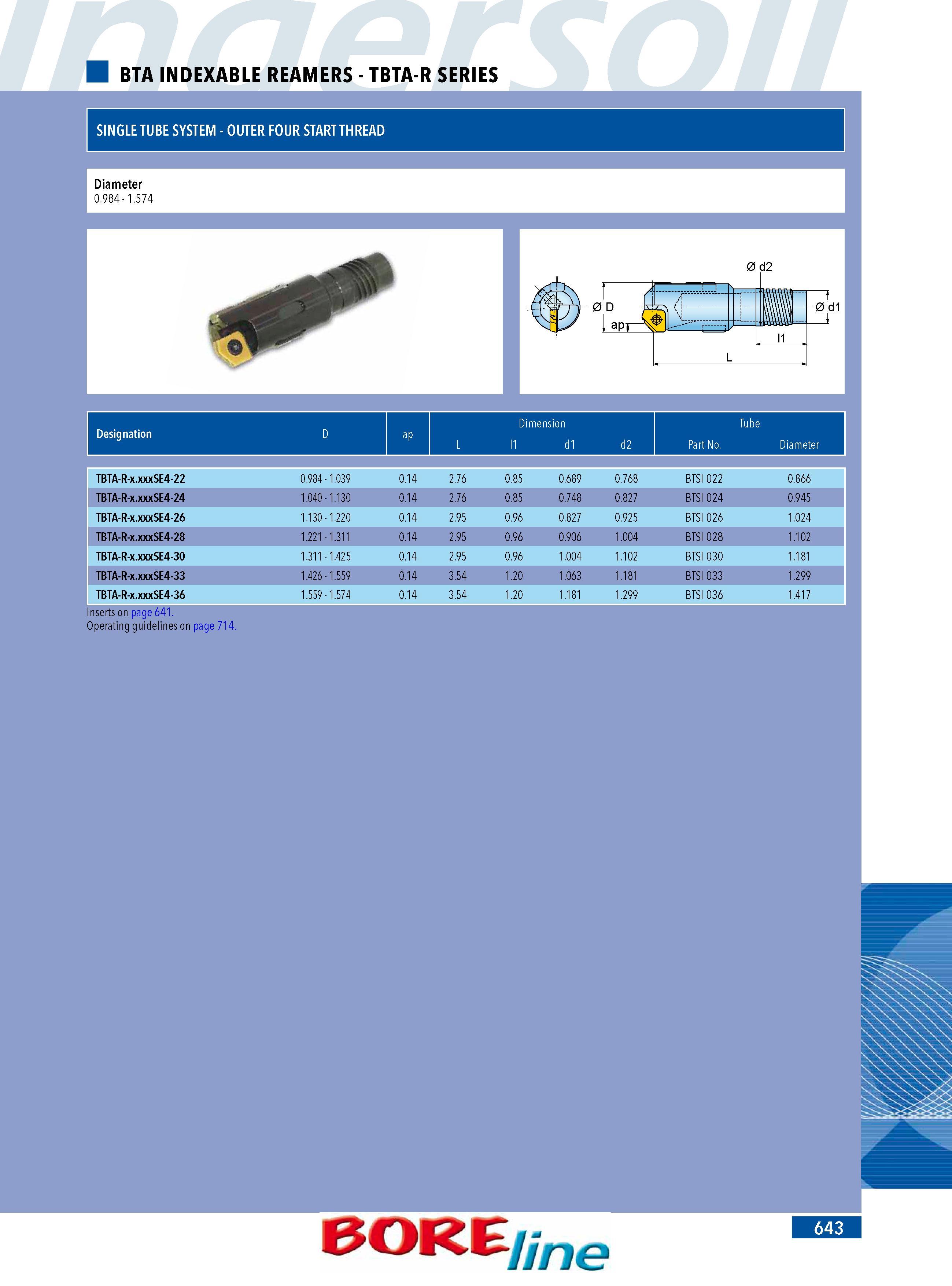

BTA INDEXABLE REAMERS - TBTA-R SERIES SINGLE TUBE SYSTEM - OUTER FOUR START THREAD D Dimension Tube Designation L l1 d1 d2 Part No. Diameter TBTA-R-x.xxxSE4-22 0.984 - 1.039 0.14 2.76 0.85 0.689 0.768 BTSI 022 0.866 TBTA-R-x.xxxSE4-24 1.040 - 1.130 0.14 2.76 0.85 0.748 0.827 BTSI 024 0.945 TBTA-R-x.xxxSE4-26 1.130 - 1.220 0.14 2.95 0.96 0.827 0.925 BTSI 026 1.024 TBTA-R-x.xxxSE4-28 1.221 - 1.311 0.14 2.95 0.96 0.906 1.004 BTSI 028 1.102 TBTA-R-x.xxxSE4-30 1.311 - 1.425 0.14 2.95 0.96 1.004 1.102 BTSI 030 1.181 TBTA-R-x.xxxSE4-33 1.426 - 1.559 0.14 3.54 1.20 1.063 1.181 BTSI 033 1.299 TBTA-R-x.xxxSE4-36 1.559 - 1.574 0.14 3.54 1.20 1.181 1.299 BTSI 036 1.417 Inserts on page 641. Operating guidelines on page 714. 60KE ne 643
