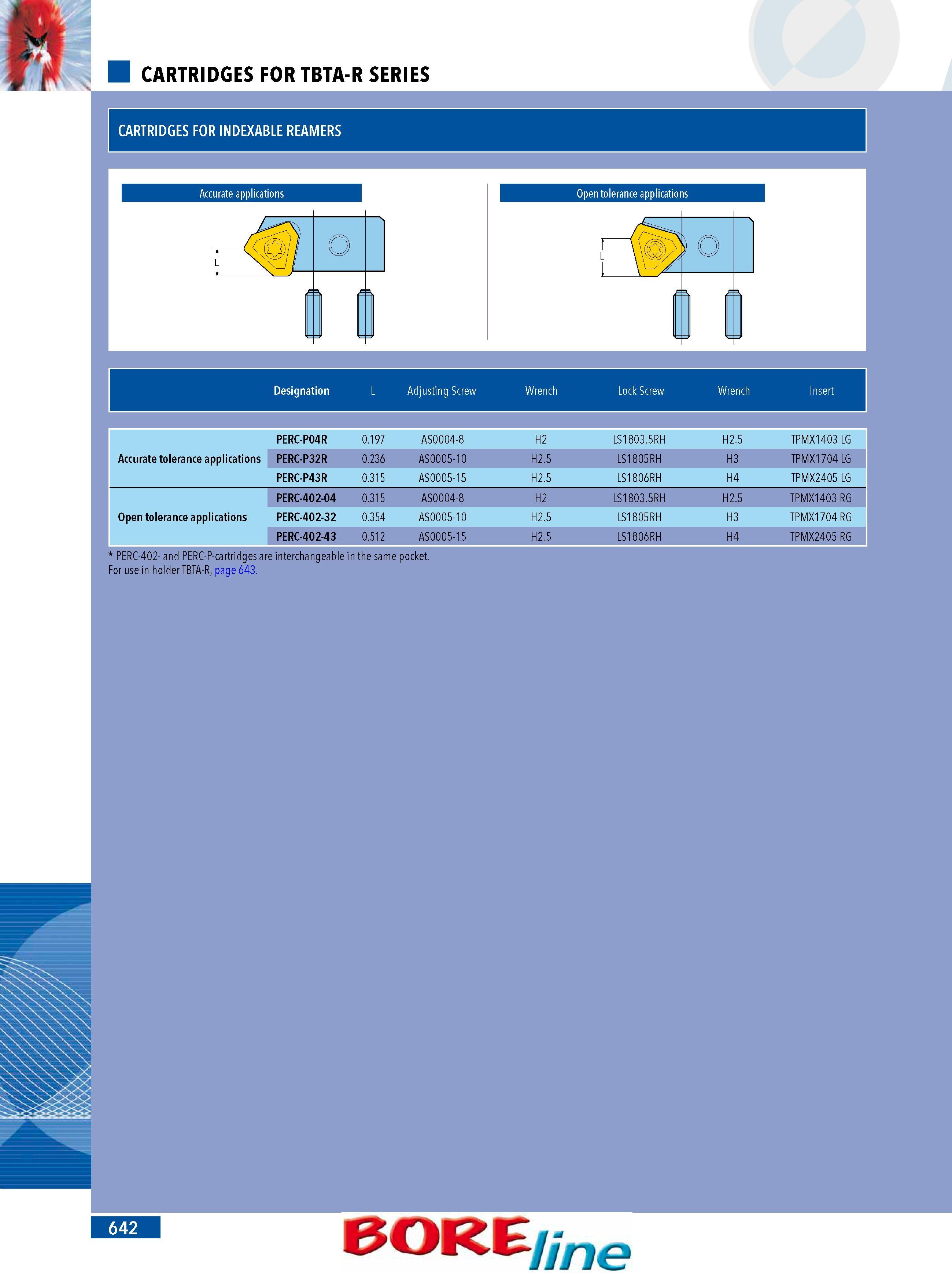

CARTRIDGES FOR TBTA-R SERIES CARTRIDGES FOR INDEXABLE REAMERS Designation L Adjusting Screw Wrench Lock Screw Wrench Insert PERC-P04R 0.197 AS0004-8 H2 LS1803.5RH H2.5 TPMX1403 LG Accurate tolerance applications PERC-P32R 0.236 AS0005-10 H2.5 LS1805RH H3 TPMX1704 LG PERC-P43R 0.315 AS0005-15 H2.5 LS1806RH H4 TPMX2405 LG PERC-402-04 0.315 AS0004-8 H2 LS1803.5RH H2.5 TPMX1403 RG Open tolerance applications PERC-402-32 0.354 AS0005-10 H2.5 LS1805RH H3 TPMX1704 RG PERC-402-43 0.512 AS0005-15 H2.5 LS1806RH H4 TPMX2405 RG PERC-402- and PERC-P-cartridges are interchangeable in the same pocket. For use in holder TBTA-R page 643. 642 0ORE ne
