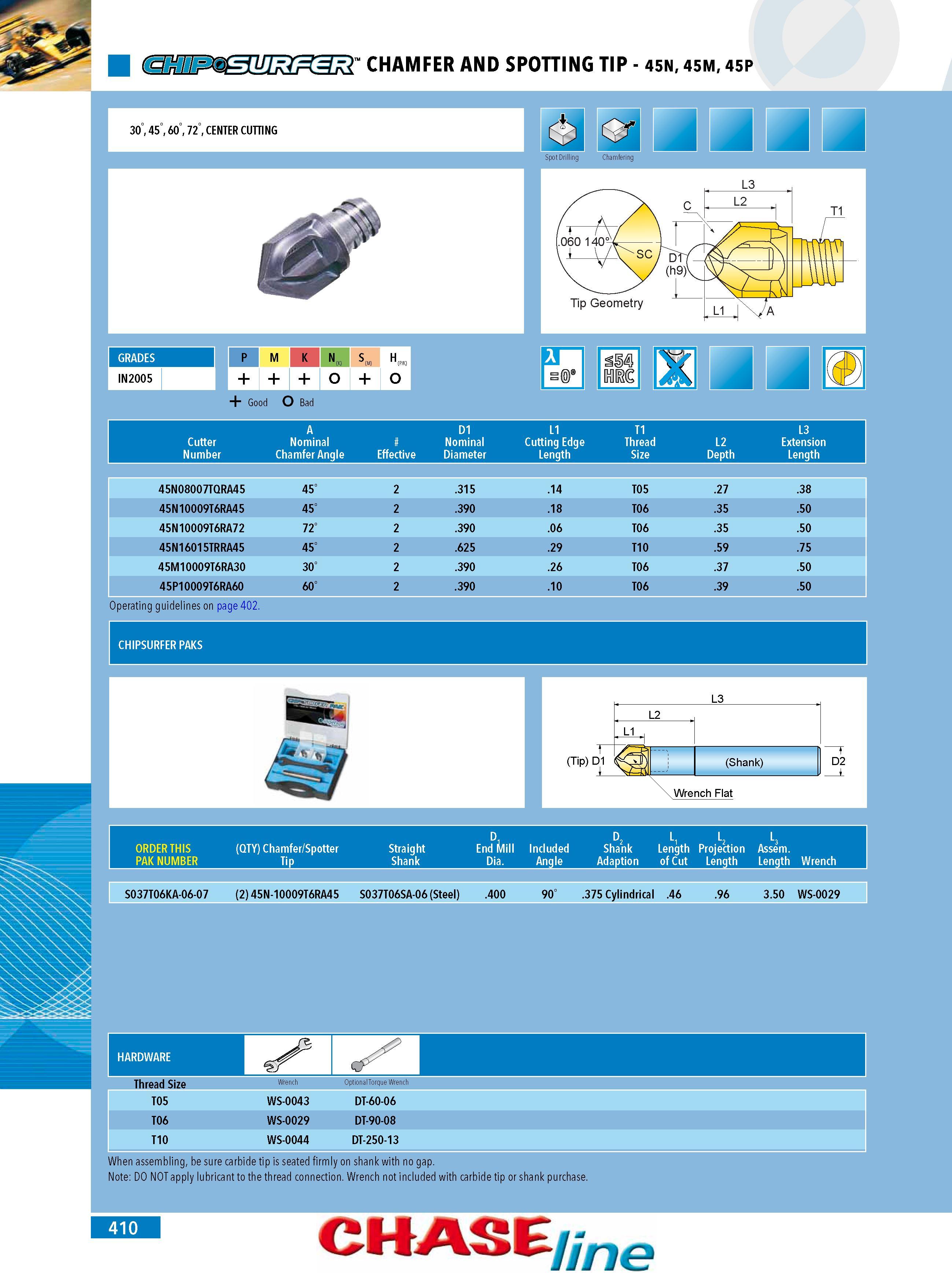

CHAMFER AND SPOTTING TIP - 45N 45M 45P 30456072 CENTER CUTTING Spot Drilling Chamfering L3 L2 .060 1 40 'SC Tip Geometry T1 IN2005 p M K N S M) u (P K) o + o Good O Bad A D1 L1 T1 L3 Cutter Nominal Nominal Cutting Edge Thread L2 Extension Number Chamfer Angle Effective Diameter Length Size Depth Length 45N08007TQRA45 45 2 .315 .14 T05 .27 .38 45N10009T6RA45 45 2 .390 .18 T06 .35 .50 45N10009T6RA72 72 2 .390 .06 T06 .35 .50 45N16015TRRA45 45 2 .625 .29 T10 .59 .75 45M10009T6RA30 30 2 .390 .26 T06 .37 .50 45P10009T6RA60 60 2 .390 .10 T06 .39 .50 Operating guidelines on page 402. L3 L2 L1 1 (Tip) D1 ; (Shank) D2 Wrench Flat ORDER THIS PAK NUMBER (QTY) Chamfer Spotter Tip Straight Shank End Mill Dia. Included Angle Shank Adaption th t .2 n s ibc s' Pr L3 Assem. Length Wrench S037T06KA-06-07 (2) 45N-10009T6RA45 S037T06SA-06 (Steel) .400 90 .375 Cylindrical .46 .96 3.50 WS-0029 Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T10 WS-0044 DT-250-13 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE ne GRADES 410
