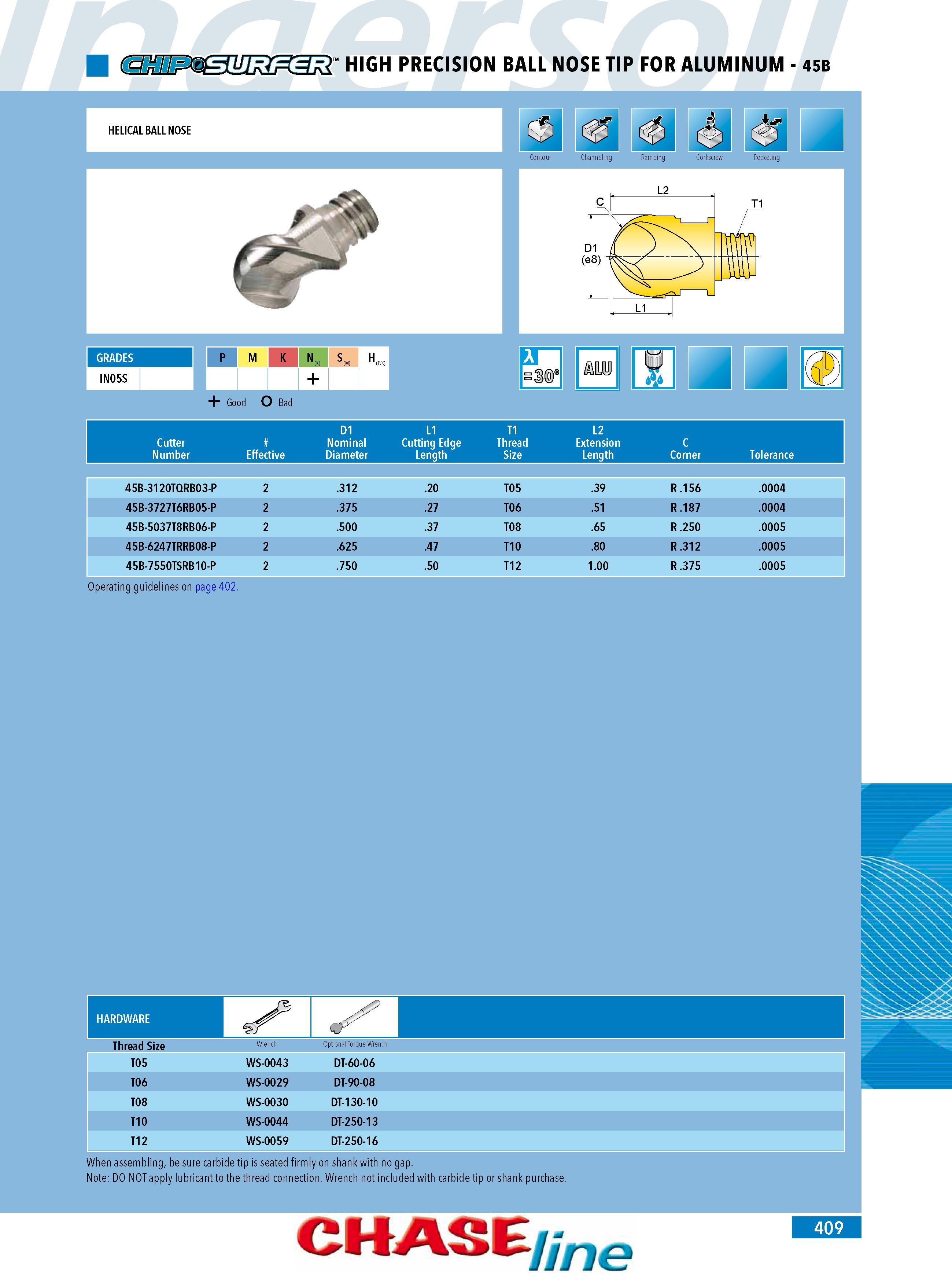

HIGH PRECISION BALL NOSE TIP FOR ALUMINUM - 45B HELICAL BALL NOSE IN05S P M K N S (M) H (P K) Good o Bad Channeling Ramping L2 D1 (e8) Pocketing T1 L1 D1 L1 T1 L2 Cutter Nominal Cutting Edge Thread Extension C Number Effective Diameter Length Size Length Corner Tolerance 45B-3120TQRB03-P 2 .312 .20 T05 .39 R .156 .0004 45B-3727T6RB05-P 2 .375 .27 T06 .51 R .187 .0004 45B-5037T8RB06-P 2 .500 .37 T08 .65 R .250 .0005 45B-6247TRRB08-P 2 .625 .47 T10 .80 R .312 .0005 45B-7550TSRB10-P 2 .750 .50 T12 1.00 R .375 .0005 Operating guidelines on page 402. Thread Size Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. GRADES CHASE ne 409
