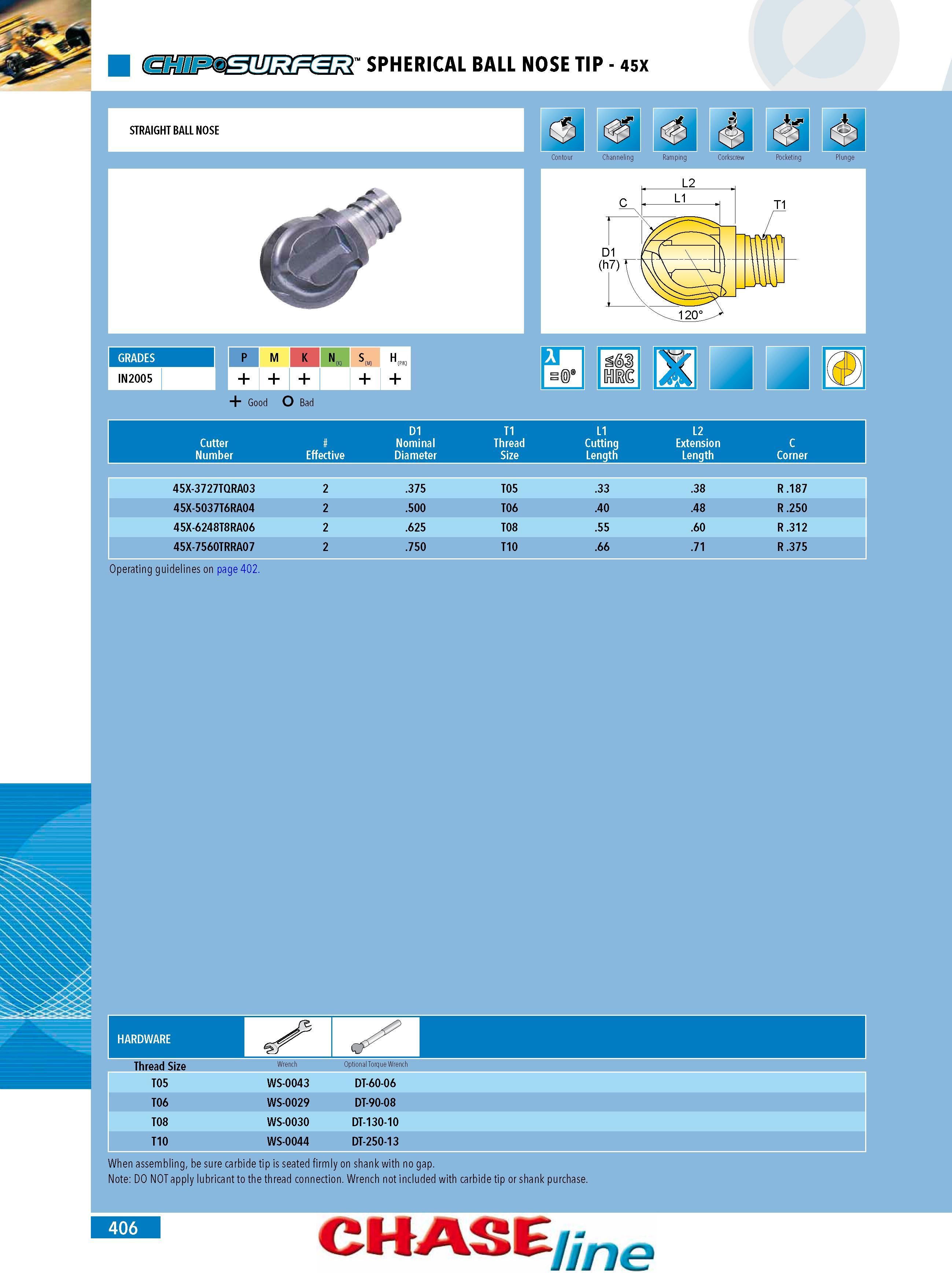

SPHERICAL BALL NOSE TIP - 45X STRAIGHT BALL NOSE Contour Jj Channeling Ramping 11 Corkscrew Pocketing Plunge GRADES j P M K N u (P K) IN2005 Good o Bad D1 T1 L1 L2 Cutter Nominal Thread Cutting Extension C Number Effective Diameter Size Length Length Corner 45X-3727TQRA03 2 .375 T05 .33 .38 R .187 45X-5037T6RA04 2 .500 T06 .40 .48 R .250 45X-6248T8RA06 2 .625 T08 .55 .60 R .312 45X-7560TRRA07 2 .750 T10 .66 .71 R .375 Operating guidelines on page 402. Thread Size Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE 406
