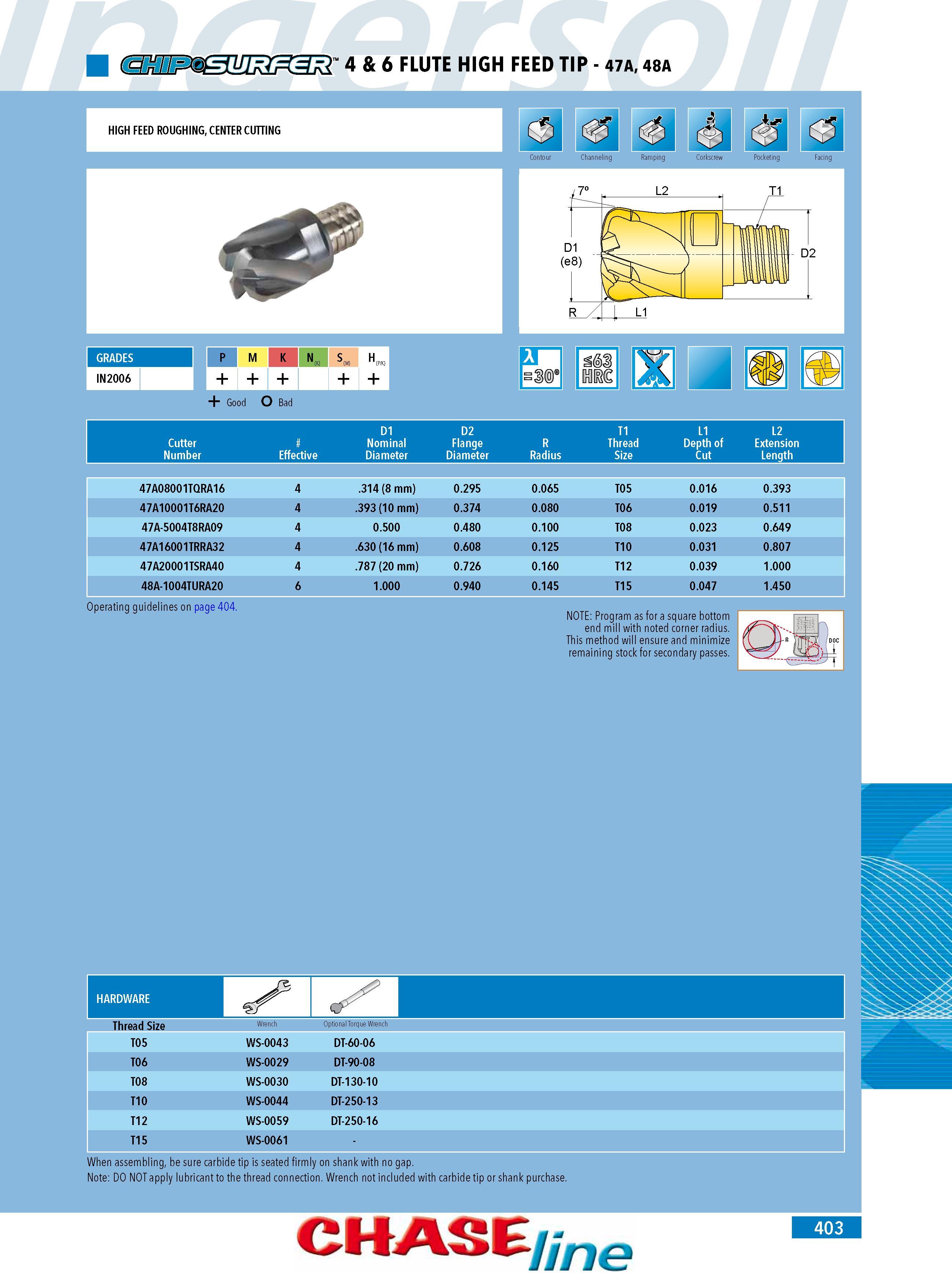

4 & 6 FLUTE HIGH FEED TIP - 47A 48A HIGH FEED ROUGHING CENTER CUTTING J Contour Jj Channeling Ramping Corkscrew JJ Pocketing 2 Facing IN2006 P M K N( S (M) H (P K) Good o Bad D1 D2 T1 L1 L2 Cutter Nominal Flange R Thread Depth of Extension Number Effective Diameter Diameter Radius Size Cut Length GRADES 47A08001TQRA16 4 .314 (8 mm) 0.295 0.065 T05 0.016 0.393 47A10001T6RA20 4 .393 (10 mm) 0.374 0.080 T06 0.019 0.511 47A-5004T8RA09 4 0.500 0.480 0.100 T08 0.023 0.64 9 47A16001TRRA32 4 .630 (16 mm) 0.608 0.125 T10 0.031 0.807 47A20001TSRA40 4 .787 (20 mm) 0.726 0.160 T12 0.039 1.000 48A-1004TURA20 6 1.000 0.940 0.145 T15 0.047 1.450 Operating guidelines on page 404. NOTE: Program as for a square bottom end mill with noted corner radius. This method will ensure and minimize remaining stock for secondary passes. Thread Size Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 T15 WS-0061 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me 403
