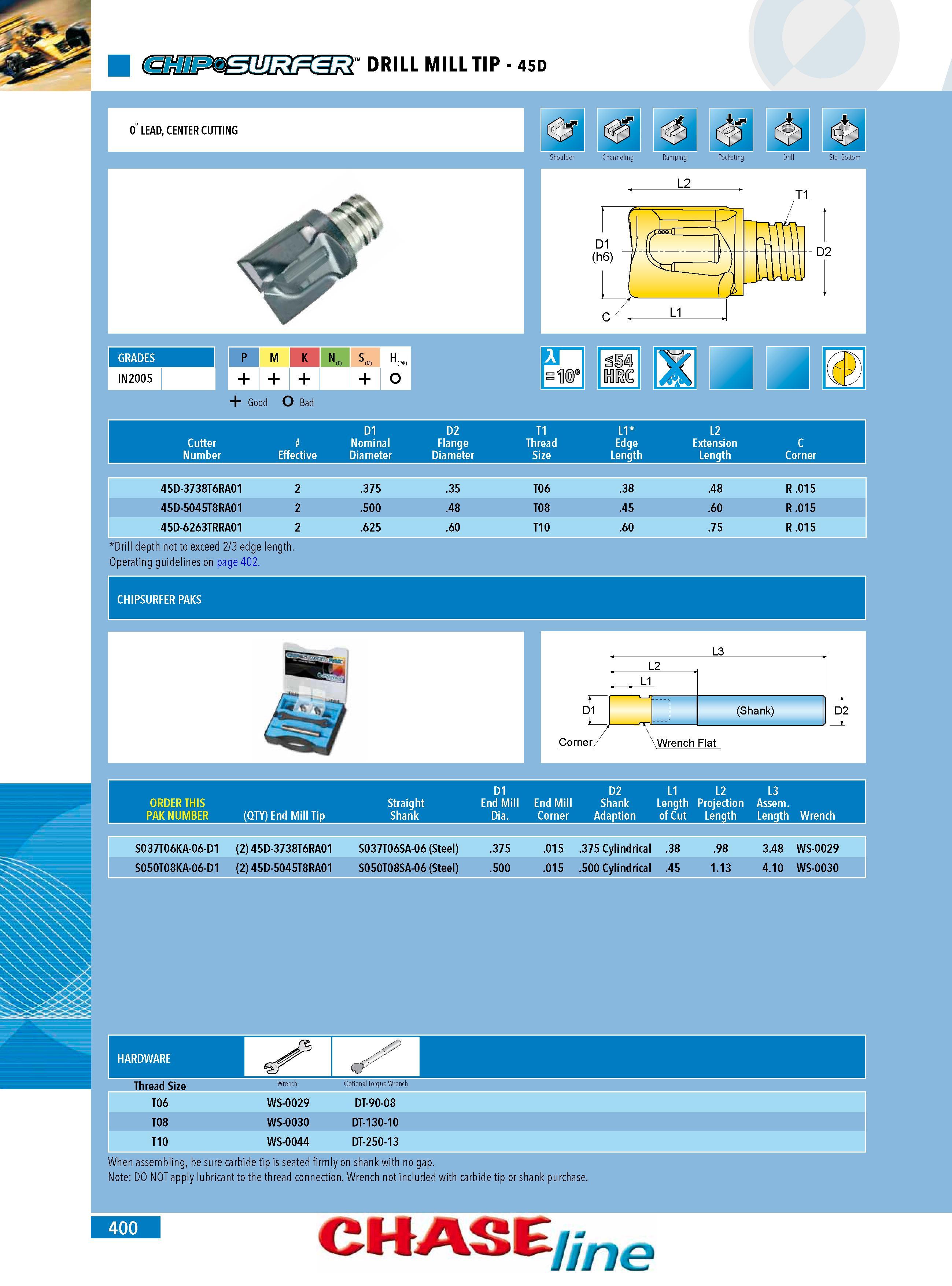

398 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.400

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 400 0398 Lab2u

DRILL MILL TIP - 45D 0 LEAD CENTER CUTTING n Shoulder Jj Channeling Ramping Pocketing a Drill Std. Bottom IN2005 p M K N S M) u (P K) o + Good o Bad D1 D2 T1 L1 L2 Cutter Nominal Flange Thread Edge Extension C Number Effective Diameter Diameter Size Length Length Corner 45D-3738T6RA01 2 .375 .35 T06 .38 .48 R .015 45D-5045T8RA01 2 .500 .48 T08 .45 .60 R .015 45D-6263TRRA01 2 .625 .60 T10 .60 .75 R .015 Drill depth not to exceed 2 3 edge length. Operating guidelines on page 402. D1 D2 L1 L2 L3 ORDER THIS Straight End Mill End Mill Shank Length Projection Assem. PAK NUMBER (QTY) End Mill Tip Shank Dia. Corner Adaption of Cut Length Length Wrench S037T06KA-06-D1 (2) 45D-3738T6RA01 S037T06SA-06 (Steel) .375 .015 .375 Cylindrical .38 .98 3.48 WS-0029 S050T08KA-06-D1 (2) 45D-5045T8RA01 S050T08SA-06 (Steel) .500 .015 .500 Cylindrical .45 1.13 4.10 WS-0030 Thread Size Wrench Optional Torque Wrench T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE GRADES 400
