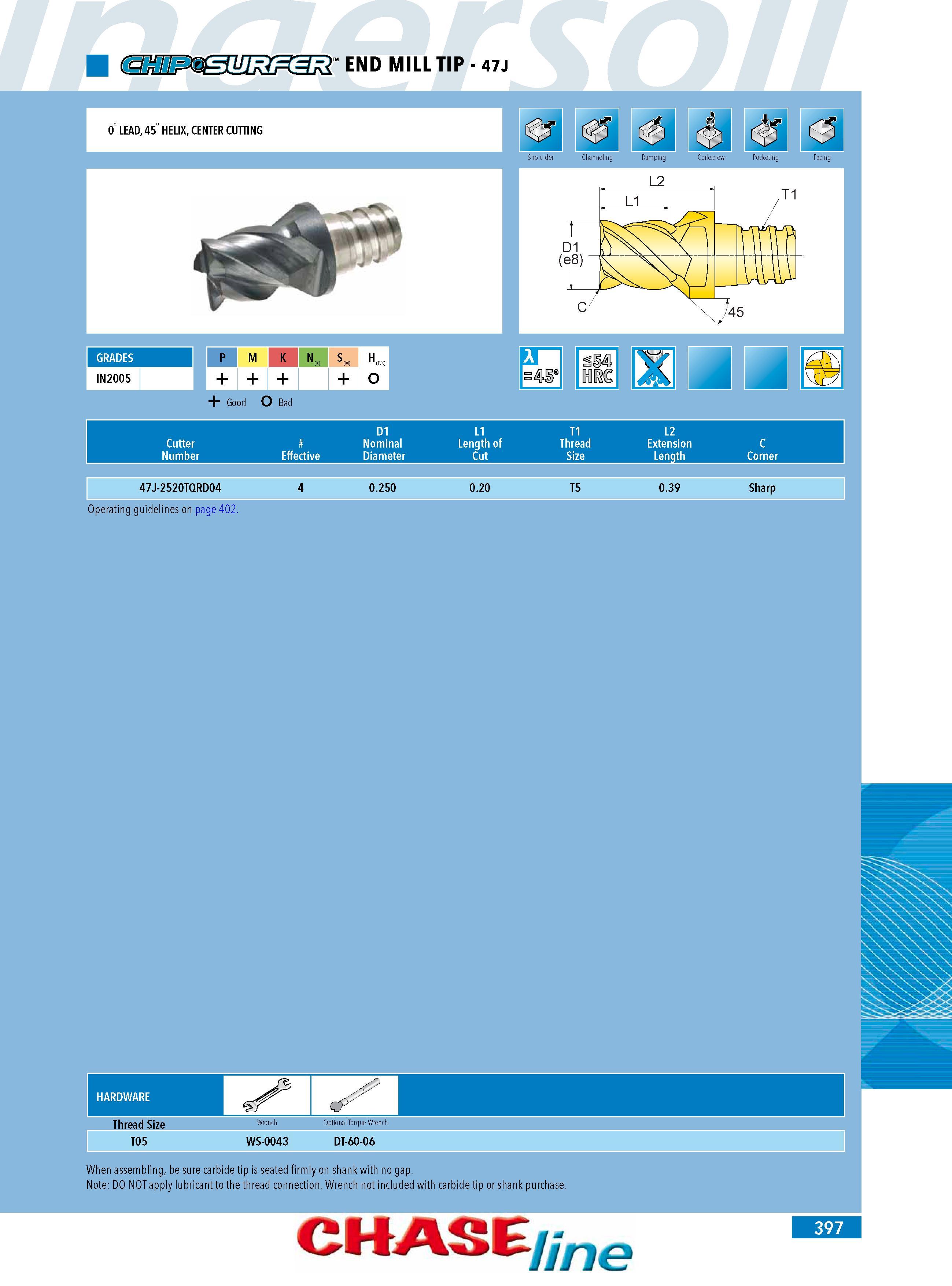

END MILL TIP - 47J 0 LEAD 45 HELIX CENTER CUTTING Sho ulder Jj Channeling Ramping Corkscrew 3 Pocketing Jj Facing IN2005 P M K N S (M) H (P K) o + Good O Bad L2 T1 D1 L1 T1 L2 Cutter Nominal Length of Thread Extension C Number Effective Diameter Cut Size Length Corner 47J-2520TQRD04 4 0.250 0.20 T5 0.39 Sharp Operating guidelines on page 402. HARDWARE Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me GRADES 397
