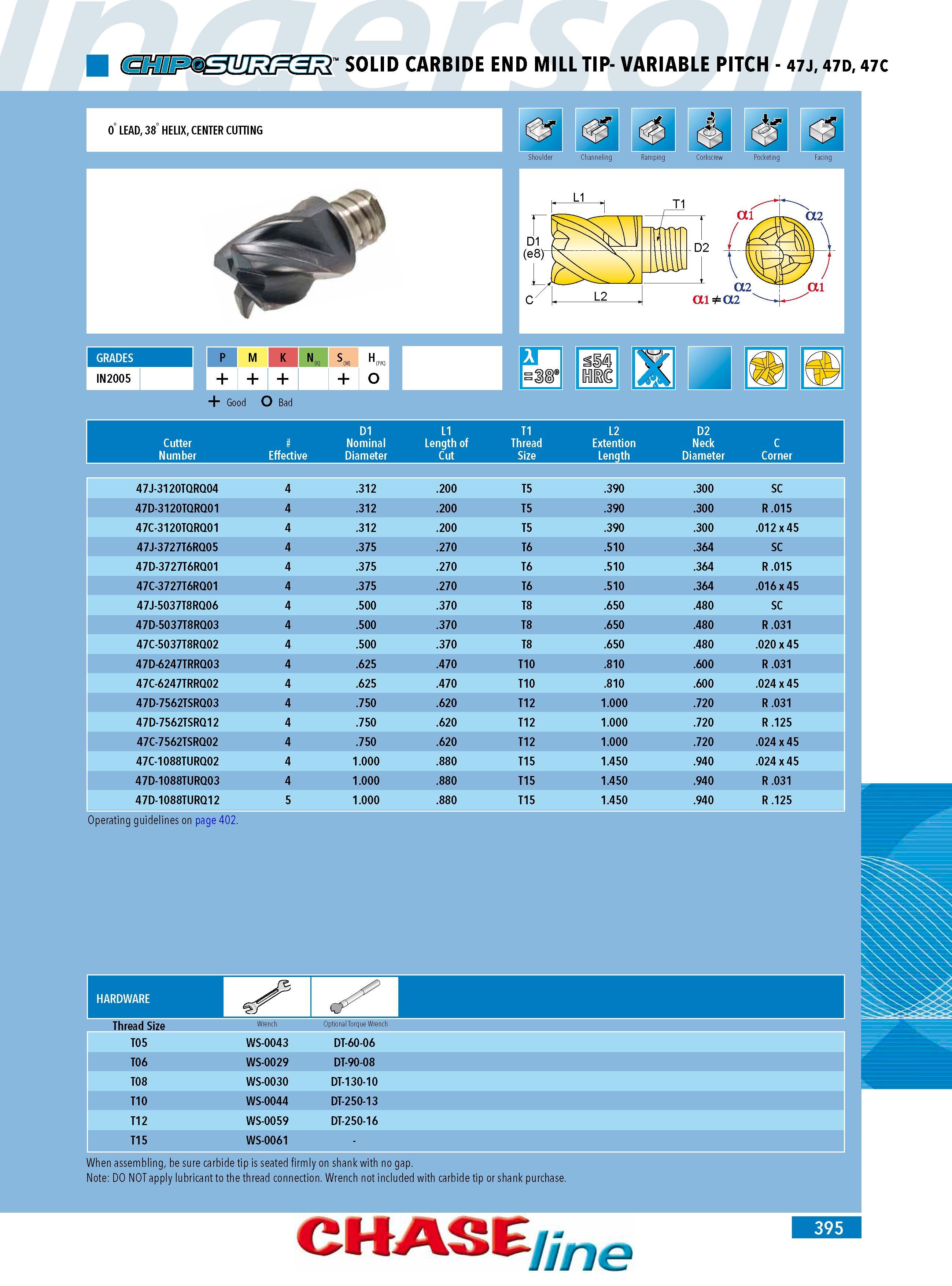

SOLID CARBIDE END MILL TIP- VARIABLE PITCH - 47J 47D 47C 0 LEAD 38 HELIX CENTER CUTTING IN2005 lp M K N S M) + Good o Bad D1 L1 T1 L2 D2 Cutter Nominal Length of Thread Extention Neck C Number Effective Diameter Cut Size Length Diameter Corner 47J-3120TQRQ04 4 .312 .200 T5 .390 .300 SC 47D-3120TQRQ01 4 .312 .200 T5 .390 .300 R .015 47C-3120TQRQ01 4 .312 .200 T5 .390 .300 .012 x 45 47J-3727T6RQ05 4 .375 .270 T6 .510 .364 SC 47D-3727T6RQ01 4 .375 .270 T6 .510 .364 R .015 47C-3727T6RQ01 4 .375 .270 T6 .510 .364 .016 x 45 47J-5037T8RQ06 4 .500 .370 T8 .650 .480 SC 47D-5037T8RQ03 4 .500 .370 T8 .650 .480 R .031 47C-5037T8RQ02 4 .500 .370 T8 .650 .480 .020 x 45 47D-6247TRRQ03 4 .625 .470 T10 .810 .600 R .031 47C-6247TRRQ02 4 .625 .470 T10 .810 .600 .024 x 45 47D-7562TSRQ03 4 .750 .620 T12 1.000 .720 R .031 47D-7562TSRQ12 4 .750 .620 T12 1.000 .720 R .125 47C-7562TSRQ02 4 .750 .620 T12 1.000 .720 .024 x 45 47C-1088TURQ02 4 1.000 .880 T15 1.450 .940 .024 x 45 47D-1088TURQ03 4 1.000 .880 T15 1.450 .940 R .031 47D-1088TURQ12 5 1.000 .880 T15 1.450 .940 R .125 Operating guidelines on page 402. Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 T15 WS-0061 GRADES When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE ne 395
