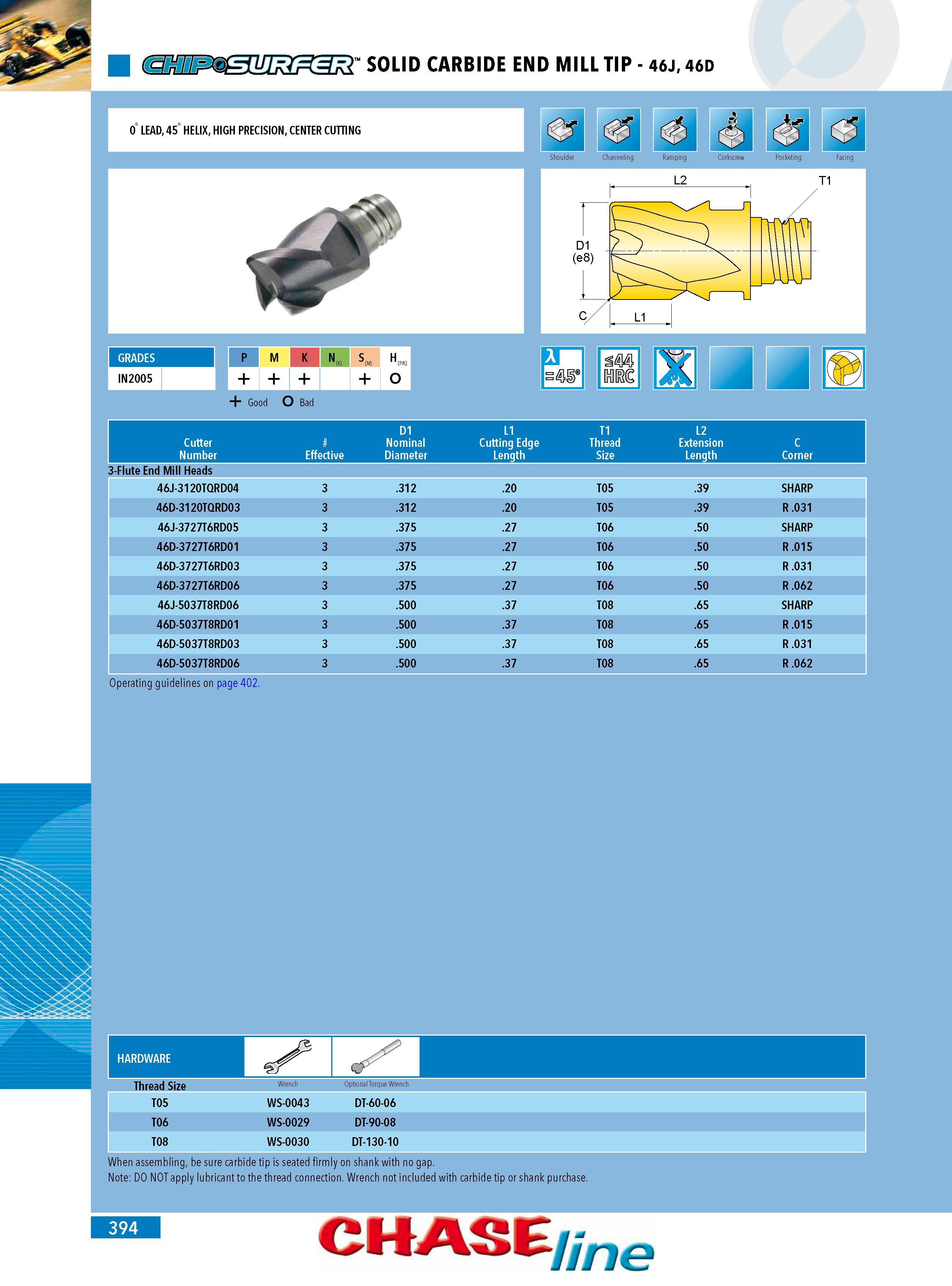

SOLID CARBIDE END MILL TIP - 46J 46D 0 LEAD 45 HELIX HIGH PRECISION CENTER CUTTING Shoulder Jj Channeling Ramping 11 Corkscrew Pocketing Facing L2 T1 D0 (e8) L n n Ml V i GRADES j P M K N u (P K) IN2005 o + Good O Bad D1 L1 T1 L2 Cutter Nominal Cutting Edge Thread Extension C Number Effective Diameter Length Size Length Corner 3-Flute End Mill Heads 46J-3120TQRD04 3 .312 .20 T05 .39 SHARP 46D-3120TQRD03 3 .312 .20 T05 .39 R .031 46J-3727T6RD05 3 .375 .27 T06 .50 SHARP 46D-3727T6RD01 3 .375 .27 T06 .50 R .015 46D-3727T6RD03 3 .375 .27 T06 .50 R .031 46D-3727T6RD06 3 .375 .27 T06 .50 R .062 46J-5037T8RD06 3 .500 .37 T08 .65 SHARP 46D-5037T8RD01 3 .500 .37 T08 .65 R .015 46D-5037T8RD03 3 .500 .37 T08 .65 R .031 46D-5037T8RD06 3 .500 .37 T08 .65 R .062 Operating guidelines on page 402. When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 394
