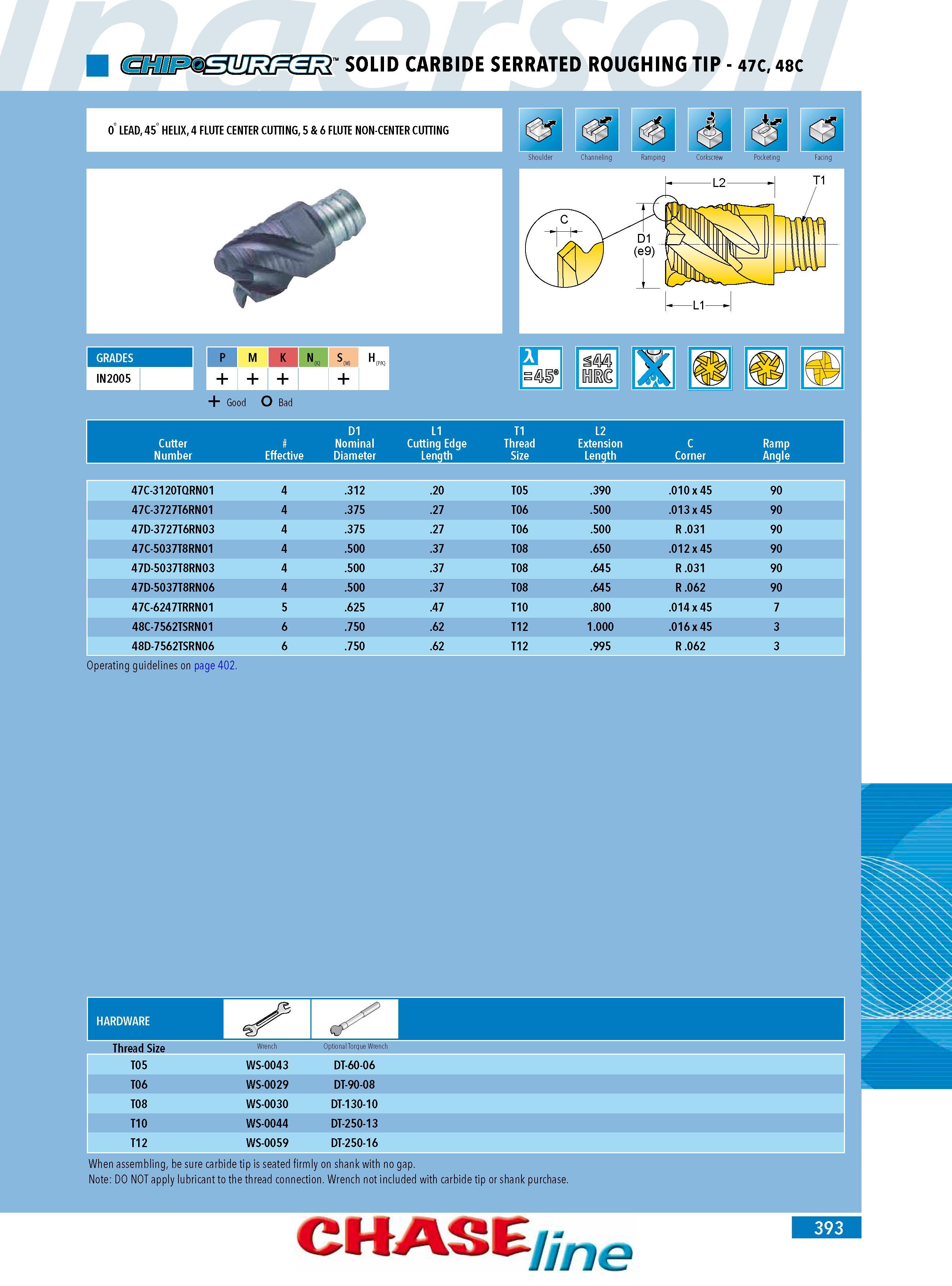

SOLID CARBIDE SERRATED ROUGHING TIP - 47C 48C 0 LEAD 45 HELIX 4 FLUTE CENTER CUTTING 5 & 6 FLUTE NON-CENTER CUTTING 47C-3120TQRN01 4 .312 .20 T05 .390 .010 x 45 90 47C-3727T6RN01 4 .375 .27 T06 .500 .013 x 45 90 47D-3727T6RN03 4 .375 .27 T06 .500 R .031 90 47C-5037T8RN01 4 .500 .37 T08 .650 .012 x 45 90 47D-5037T8RN03 4 .500 .37 T08 .645 R .031 90 47D-5037T8RN06 4 .500 .37 T08 .645 R .062 90 47C-6247TRRN01 5 .625 .47 T10 .800 .014 x 45 7 48C-7562TSRN01 6 .750 .62 T12 1.000 .016 x 45 3 48D-7562TSRN06 6 .750 .62 T12 .995 R .062 3 Operating guidelines on page 402. Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me 393
