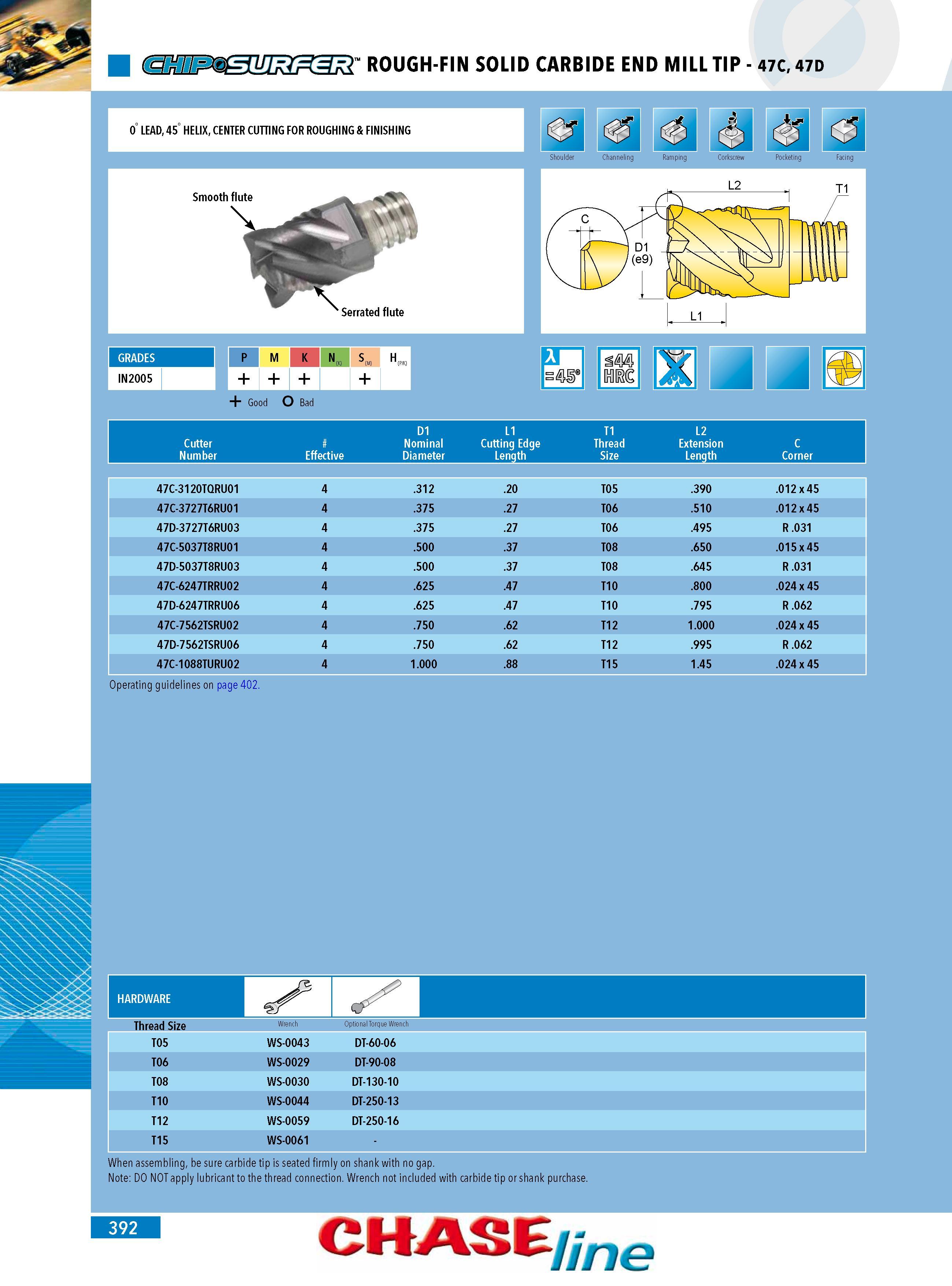

ROUGH-FIN SOLID CARBIDE END MILL TIP - 47C 47D 0 LEAD 45 HELIX CENTER CUTTING FOR ROUGHING & FINISHING n Shoulder Jj Channeling Ramping 11 Corkscrew Pocketing & Facing Smooth flute Serrated flute L1 IN2005 p M K N S M) u (P K) + Good O Bad T1 Cutter Number Effective D1 Nominal Diameter L1 Cutting Edge Length T1 Thread Size L2 Extension Length C Corner 47C-3120TQRU01 4 .312 .20 T05 .390 .012 x 45 47C-3727T6RU01 4 .375 .27 T06 .510 .012 x 45 47D-3727T6RU03 4 .375 .27 T06 .495 R .031 47C-5037T8RU01 4 .500 .37 T08 .650 .015 x 45 47D-5037T8RU03 4 .500 .37 T08 .645 R .031 47C-6247TRRU02 4 .625 .47 T10 .800 .024 x 45 47D-6247TRRU06 4 .625 .47 T10 .795 R .062 47C-7562TSRU02 4 .750 .62 T12 1.000 .024 x 45 47D-7562TSRU06 4 .750 .62 T12 .995 R .062 47C-1088TURU02 4 1.000 .88 T15 1.45 .024 x 45 Operating guidelines on page 402. Thread Size Optional Torque Wrench When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE ne T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 T15 WS-0061 GRADES 392
