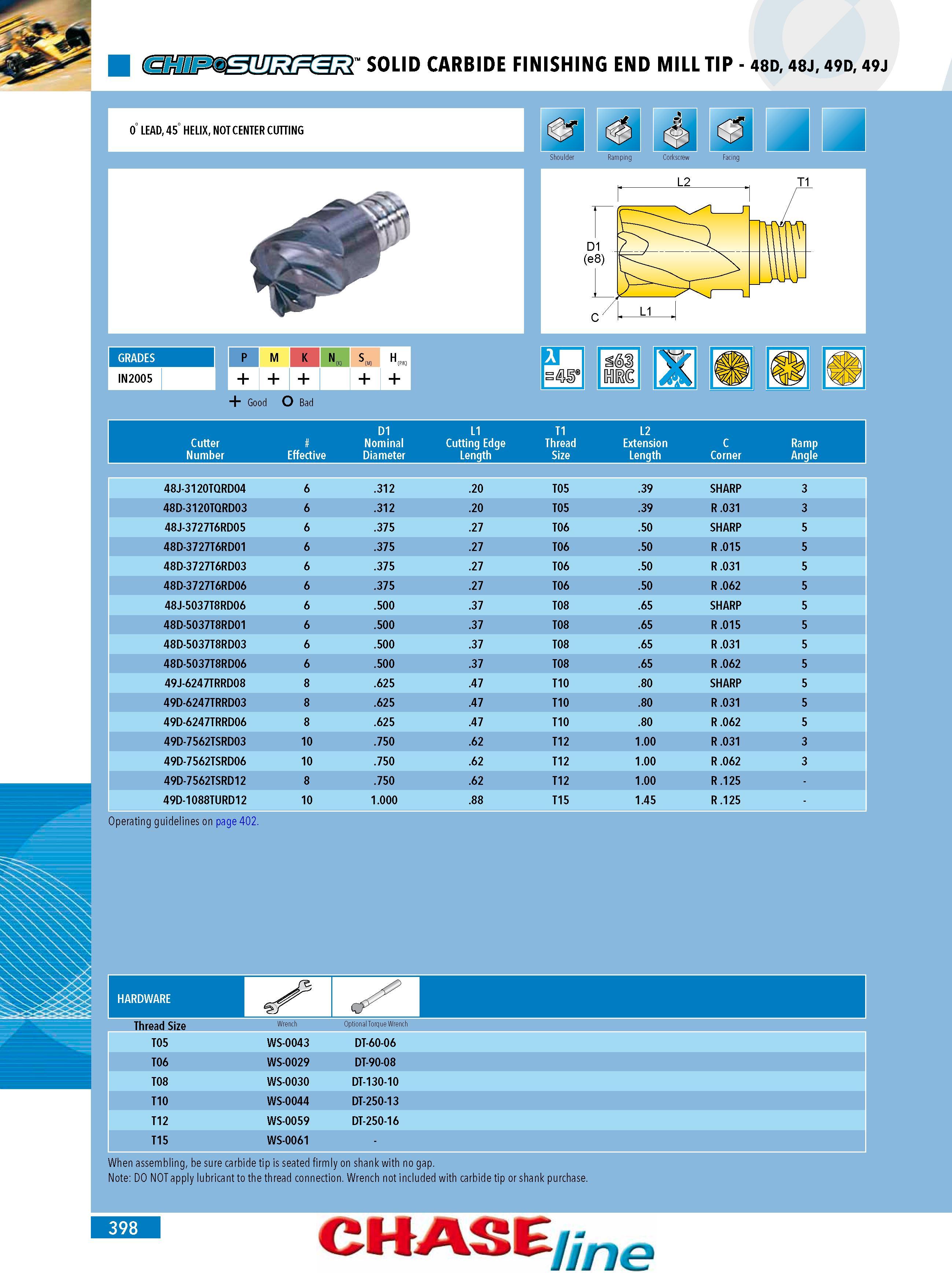

SOLID CARBIDE FINISHING END MILL TIP - 48D 48J 49D 49J 0 LEAD 45 HELIX NOT CENTER CUTTING IN2005 P M K N S (M) H (P K) Good o Bad Cutter Number Effective D1 Nominal Diameter L1 Cutting Edge Length T1 Thread Size L2 Extension Length C Corner Ramp Angle 48J-3120TQRD04 6 .312 .20 T05 .39 SHARP 3 48D-3120TQRD03 6 .312 .20 T05 .39 R .031 3 48J-3727T6RD05 6 .375 .27 T06 .50 SHARP 5 48D-3727T6RD01 6 .375 .27 T06 .50 R .015 5 48D-3727T6RD03 6 .375 .27 T06 .50 R .031 5 48D-3727T6RD06 6 .375 .27 T06 .50 R .062 5 48J-5037T8RD06 6 .500 .37 T08 .65 SHARP 5 48D-5037T8RD01 6 .500 .37 T08 .65 R .015 5 48D-5037T8RD03 6 .500 .37 T08 .65 R .031 5 48D-5037T8RD06 6 .500 .37 T08 .65 R .062 5 49J-6247TRRD08 8 .625 .47 T10 .80 SHARP 5 49D-6247TRRD03 8 .625 .47 T10 .80 R .031 5 49D-6247TRRD06 8 .625 .47 T10 .80 R .062 5 49D-7562TSRD03 10 .750 .62 T12 1.00 R .031 3 49D-7562TSRD06 10 .750 .62 T12 1.00 R .062 3 49D-7562TSRD12 8 .750 .62 T12 1.00 R .125 49D-1088TURD12 10 1.000 .88 T15 1.45 R .125 Operating guidelines on page 402. Thread Size Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 T15 WS-0061 GRADES When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. 398 CHASE ne
