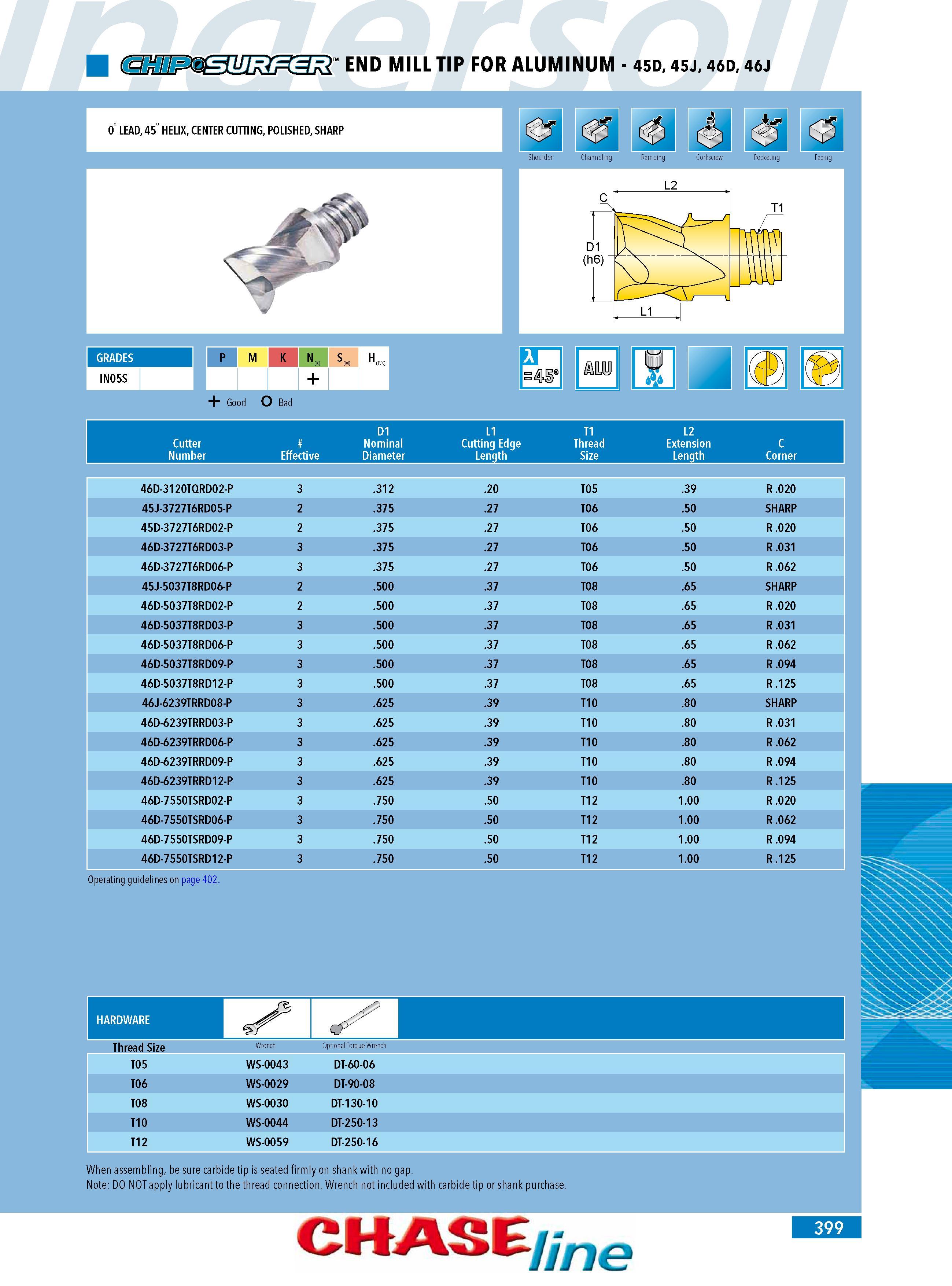

END MILL TIP FOR ALUMINUM - 45D 45J 46D 46J 0 LEAD 45 HELIX CENTER CUTTING POLISHED SHARP Shoulder Channeling Ramping Corkscrew Pocketing Facing IN05S lp M K N S M) u (P K) Good o Bad D1 L1 T1 L2 Cutter Nominal Cutting Edge Thread Extension C Number Effective Diameter Length Size Length Corner 46D-3120TQRD02-P 3 .312 .20 T05 .39 R .020 45J-3727T6RD05-P 2 .375 .27 T06 .50 SHARP 45D-3727T6RD02-P 2 .375 .27 T06 .50 R .020 46D-3727T6RD03-P 3 .375 .27 T06 .50 R .031 46D-3727T6RD06-P 3 .375 .27 T06 .50 R .062 45J-5037T8RD06-P 2 .500 .37 T08 .65 SHARP 46D-5037T8RD02-P 2 .500 .37 T08 .65 R .020 46D-5037T8RD03-P 3 .500 .37 T08 .65 R .031 46D-5037T8RD06-P 3 .500 .37 T08 .65 R .062 46D-5037T8RD09-P 3 .500 .37 T08 .65 R .094 46D-5037T8RD12-P 3 .500 .37 T08 .65 R .125 46J-6239TRRD08-P 3 .625 .39 T10 .80 SHARP 46D-6239TRRD03-P 3 .625 .39 T10 .80 R .031 46D-6239TRRD06-P 3 .625 .39 T10 .80 R .062 46D-6239TRRD09-P 3 .625 .39 T10 .80 R .094 46D-6239TRRD12-P 3 .625 .39 T10 .80 R .125 46D-7550TSRD02-P 3 .750 .50 T12 1.00 R .020 46D-7550TSRD06-P 3 .750 .50 T12 1.00 R .062 46D-7550TSRD09-P 3 .750 .50 T12 1.00 R .094 46D-7550TSRD12-P 3 .750 .50 T12 1.00 R .125 Operating guidelines on page 402. Thread Size Optional Torque Wrench When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 GRADES 399
