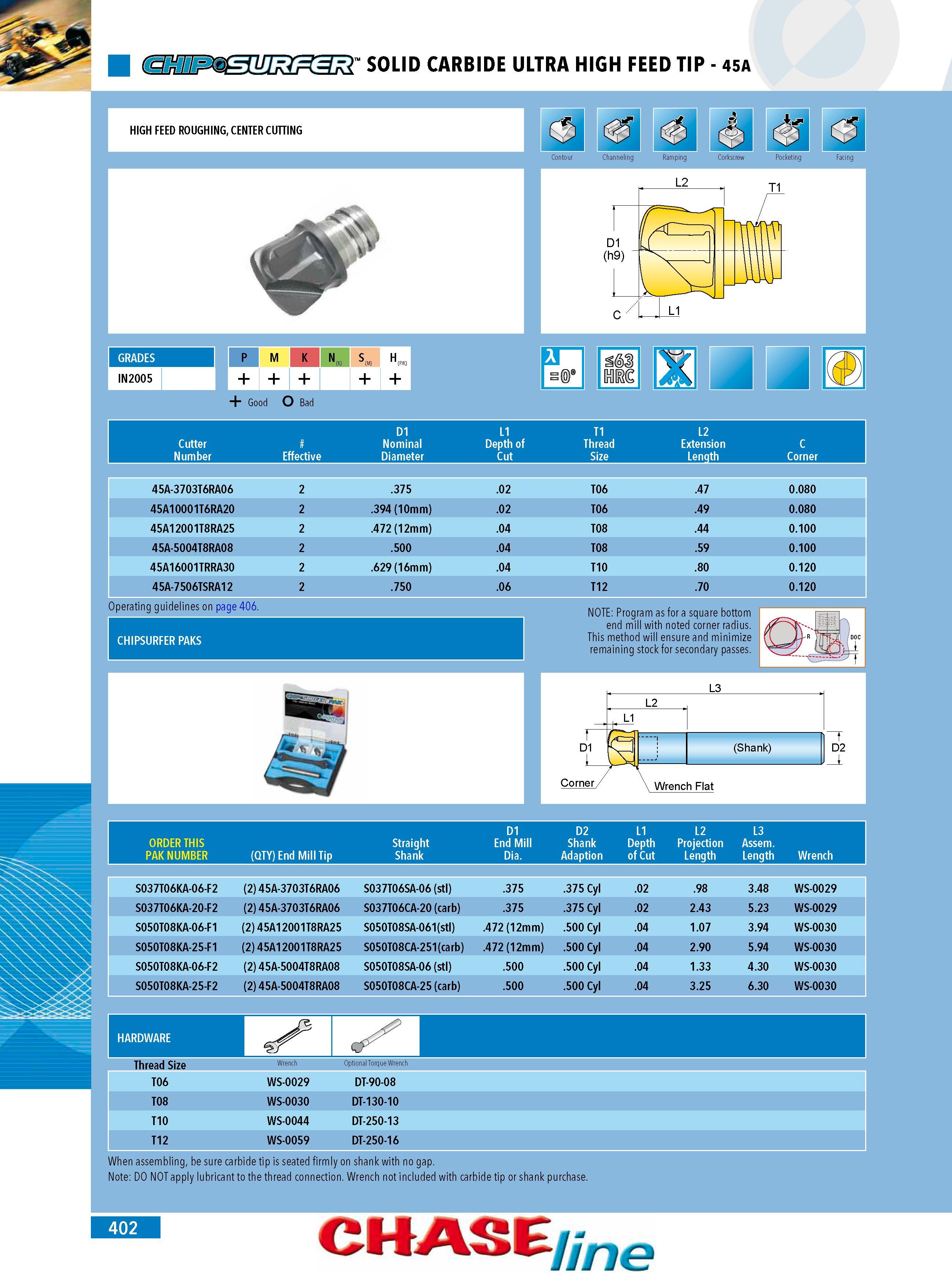

SOLID CARBIDE ULTRA HIGH FEED TIP - 45A HIGH FEED ROUGHING CENTER CUTTING il M Jf Contour Channeling Ramping Corkscrew Pocketing Facing IN2005 p M K N S M) u (P K) Good O Bad Cutter Number D1 Nominal Diameter 45A-3703T6RA06 2 .375 .02 T06 .47 0.080 45A10001T6RA20 2 .394 (10mm) .02 T06 .49 0.080 45A12001T8RA25 2 .472 (12mm) .04 T08 .44 0.100 45A-5004T8RA08 2 .500 .04 T08 .59 0.100 45A16001TRRA30 2 .629 (16mm) .04 T10 .80 0.120 45A-7506TSRA12 2 .750 .06 T12 .70 0.120 Operating guidelines on page 406. L1 Depth of Cut NOTE: Program as for a square bottom end mill with noted corner radius. This method will ensure and minimize remaining stock for secondary passes. r D1 Corner L3 L2 L1 (Shank) t D2 1 Wrench Flat ORDER THIS PAK NUMBER (QTY) End Mill Tip Straight Shank D1 End Mill Dia. D2 Shank Adaption L1 Depth of Cut L2 Projection Length L3 Assem. Length Wrench S037T06KA-06-F2 (2) 45A-3703T6RA06 S037T06SA-06 (stl) .375 .375 Cyl .02 .98 3.48 WS-0029 S037T06KA-20-F2 (2) 45A-3703T6RA06 S037T06CA-20 (carb) .375 .375 Cyl .02 2.43 5.23 WS-0029 S050T08KA-06-F1 (2)45A12001T8RA25 S050T08SA-061(stl) .472 (12mm) .500 Cyl .04 1.07 3.94 WS-0030 S050T08KA-25-F1 (2)45A12001T8RA25 S050T08CA-251(carb) .472 (12mm) .500 Cyl .04 2.90 5.94 WS-0030 S050T08KA-06-F2 (2) 45A-5004T8RA08 S050T08SA-06 (stl) .500 .500 Cyl .04 1.33 4.30 WS-0030 S050T08KA-25-F2 (2) 45A-5004T8RA08 S050T08CA-25 (carb) .500 .500 Cyl .04 3.25 6.30 WS-0030 Thread Size Optional Torque Wrench T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE ne GRADES 402
